Buy Metz Connect 130863-01-E Sonstige Installationstechnik Distributor box flexible: - fixed: 0.128-0.325 mm² Number of pins

Shielded Cat.7 network plug with open cover. Visible connections and colour-coded cables. Black cable cover on top.

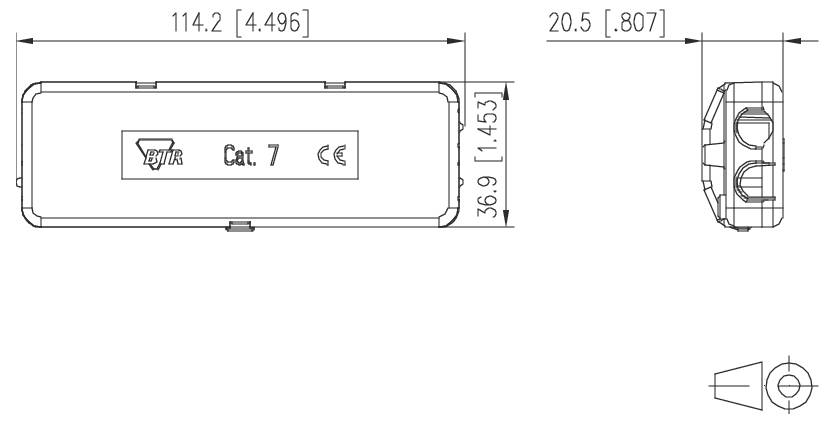

Technical dimension drawing of a rectangular Cat. 7 connector, showing front and side views with measurements 114.2 x 36.9 x 20.5 mm and CE marking.

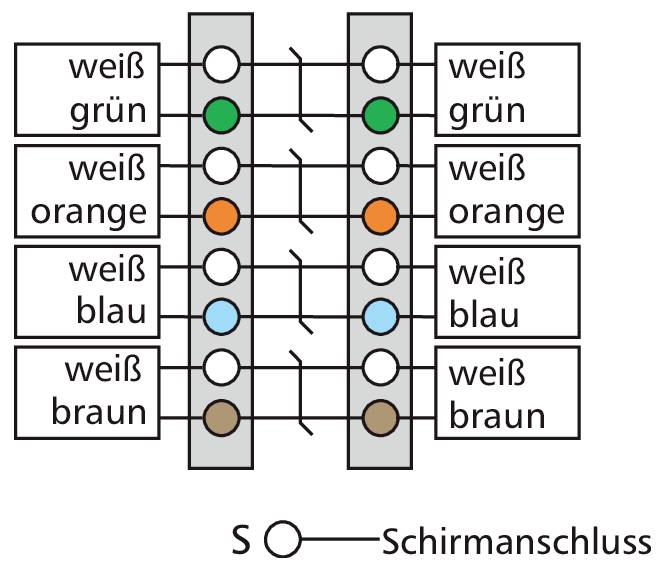

Wiring diagram of a switch/connector connection: colour-coded conductors white-green, white-orange, white-blue and white-brown are assigned on both sides; shield connection 'S' at the bottom.

1/3

Packaging type

Box

Product type

Distributor box

Cross section (inflexible) (min.)

0.128 mm²

Cross section (inflexible) (max.)

0.325 mm²

Number of pins

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.97 / piece)

€ 36.97

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Cable connector for data cables

Highlights & Details

IP67
This text is machine translated.

Technical specifications

Packaging type: Box

Product type: Distributor box

Cross section (inflexible) (min.): 0.128 mm²

Cross section (inflexible) (max.): 0.325 mm²

Number of pins: 8

Factory colour: Silver

Content: 1 pc(s)

Dim: (L x W x H) 112 x 37 x 20 mm

Manufacturer part #: 130863-01-E

: 26 - 22

Connection: Punch down

Width: 37 mm

Length: 112 mm

Connector clip features: Strain relief

Height: 20 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 580736 Metz Connect 130863-01-E Sonstige Installationstechnik Distributor box flexible: - fixed: 0.128-0.325 mm² Number of pins

User & Safety Instructions

User & Safety Instructions 580736 Metz Connect 130863-01-E Sonstige Installationstechnik Distributor box flexible: - fixed: 0.128-0.325 mm² Number of pins

Information

Information 580736 Metz Connect 130863-01-E Sonstige Installationstechnik Distributor box flexible: - fixed: 0.128-0.325 mm² Number of pins

Description

The practical plug & play solution for connection or extension of Cat 5, Cat 6 and CAT 7 data cables. By two cable inlets on each side, it is possible to introduce the cable from two sides or from one side. Through the 8 clamping points, a 8-wire cable to 2 four-core cables can be split. The stable, fully-shielded metal housing with the screwless snap lock technology rough building climate". The proven BTR-technology with two separate cable clamps for strain-relief and 360º shield connection is also in the cable connector application. Awarded by two drill holes, the cable connector suitable for wall or floor-mounting.

This text is machine translated.
