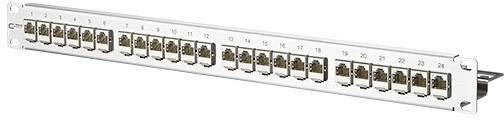

Metz Connect 130921-E 24 ports Network patch panel 483 mm (19") CAT 6A 1 U Silver (metallic) Equipped
EAN:
Part number:
Item no:
Highlights & Details
Metz Connect 130921-E 24 ports CAT 6A 1 U
- 19-inch 1 U stainless steel module carrier with 24 E-DAT module single modules
- Cat 6A component testing according to ISO/IEC 11801-1, DIN EN 50173-1, TIA/EIA-568 and IEC 60603-7-51, GHMT certified
- Compliance with the class EA according to ISO/IEC 11801-1, DIN EN 50173-1
- Tested: Link up to 500 MHz
- For 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT suitable
- Easy to mount connection of 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductors with a 7-wire copper wire AWG 26/7 - 22/7 to BTR 8-way IDC terminals
- Identification of wire assignment T568A or T568B
- Integrated cable traps, additional strain-relief possible
- Earthing bolts M6 x 10 with nut and tooth washer
- Includes 30 cm earthing cable
- All fully shielded modules connected with the help of earthing rails
Technical specifications
- Product type
Network patch panel
- Rack size
483 mm (19")
CAT 6A
- Rack unit
1 U
- Port
24 ports
- Patch panel design
Equipped
- Connection method
E DAT module
- Width
482.60 mm
- Height
44.50 mm
- Factory colour
Silver (metallic)
- Length
100.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1840623 Metz Connect 130921-E 24 ports Network patch panel 483 mm (19") CAT 6A 1 U Silver (metallic) Equipped
Description
19-inch 1 U stainless steel module carrier equipped with 24 E-DAT module single modules. Cat 6A component testing and compliance with the class EA, tested: Link up to 500 MHz. Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT. Easy to mount connection of 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductors with a 7-wire copper wire AWG 26/7 - 22/7 to BTR 8-way IDC terminals. Wires assignment according to T568A or T568B is marked. With integrated cable traps, additional strain-relief is possible. Including M6x10 Earthing bolts with nut and tooth washer and 30 cm ground cable. All fully shielded modules connected with the help of earthing rails
This text is machine translated.
This text is machine translated.
Features
- Stainless steel module carrier with E-DAT module single modules
- Easy to mount connection of 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductors with a 7-wire copper wire AWG 26/7 - 22/7 to BTR 8-way IDC terminals
- Identification of wire assignment T568A or T568B
- Integrated cable traps, additional strain-relief possible
- Earthing bolts M6 x 10 with nut and tooth washer
- Includes 30 cm earthing cable
- All fully shielded modules connected with the help of earthing rails
