Metz Connect 130926-0003KE METZ CONNECT Keystone 19-Zoll Modulträge Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Metz Connect 130926-0003KE control panel accessories
Highlights & Details
- Number of connections: 24
- Rack mounting
- Rack capacity: 1U
- Grey
Technical specifications
- Rack capacity: 1U
- Factory colour
Grey
- Dim

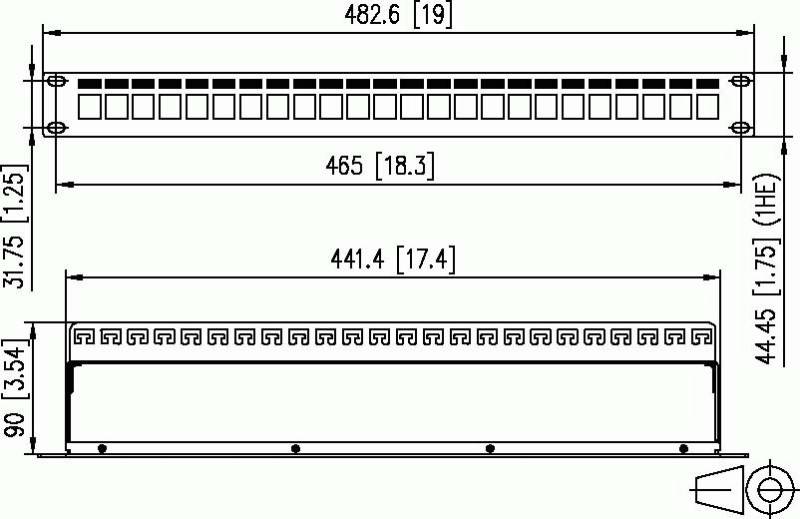

(W x H x D) 482.6 x 31.8 x 90 mm
- Content
1 pc(s)
- Cable length
0 m
- Version
Cable
- Depth
90 mm
- Height
31.8 mm
- Width
482.6 mm
Unequipped
- UKCA
yes
- Ports quantity
24
Documents & Downloads
Datasheet
Datasheet 3799392 Metz Connect 130926-0003KE METZ CONNECT Keystone 19-Zoll Modulträge Grey
User & Safety Instructions
User & Safety Instructions 3799392 Metz Connect 130926-0003KE METZ CONNECT Keystone 19-Zoll Modulträge Grey
Description
Metz Connect Patch panel Keystone 130926-0003KE
<>Similar figure.
Please pay attention to the technical data and the EAN of the product.
<>Metz Connect Patch Panel Keystone 130926-0003KE: more details

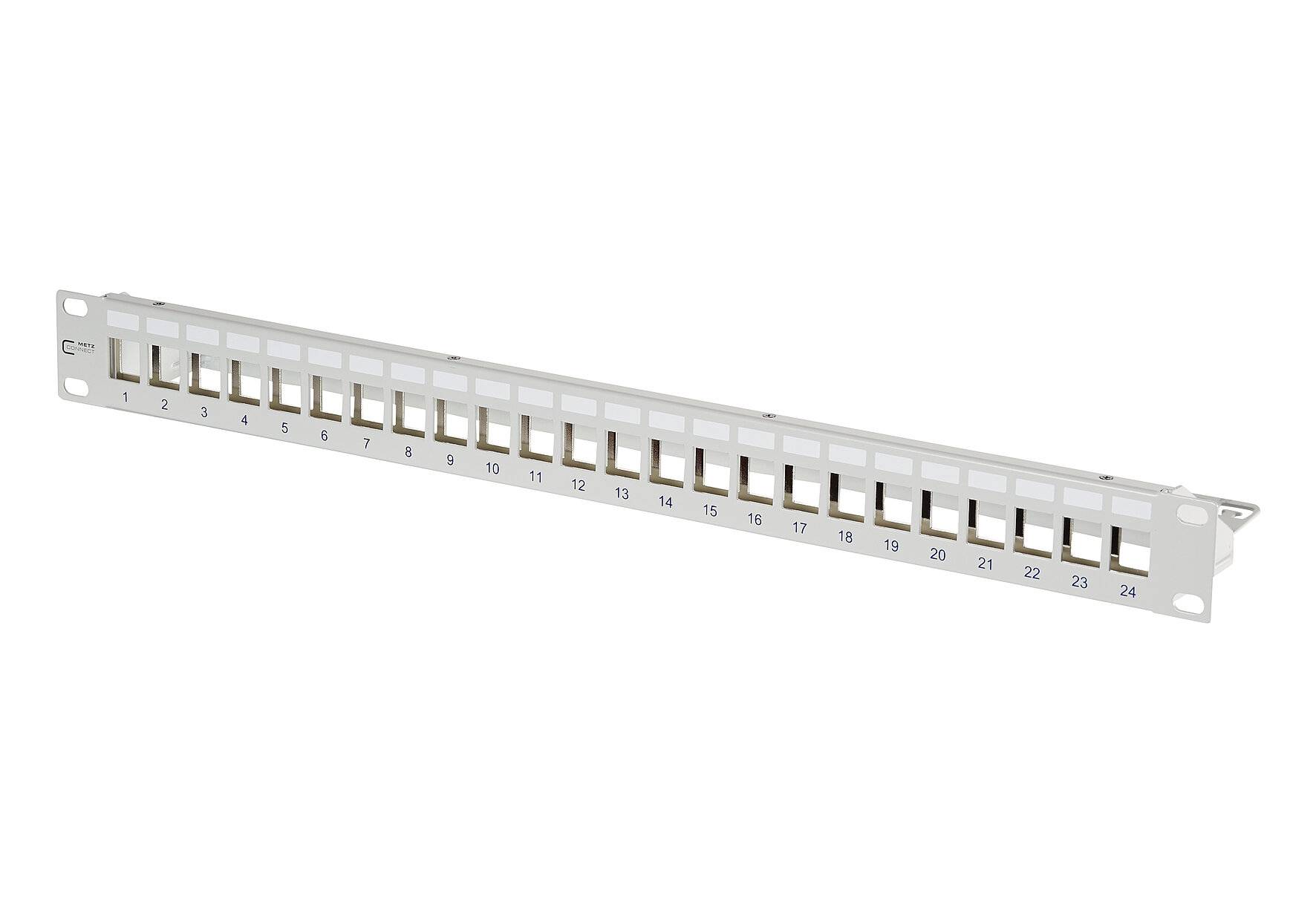

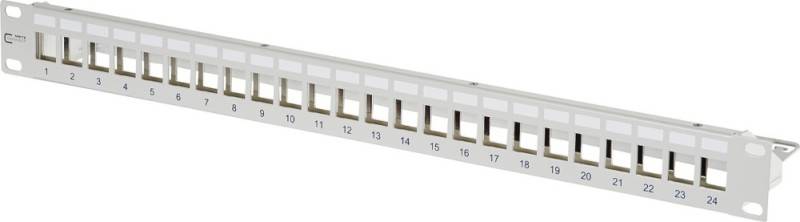

Keystone 19 inch module carrier 1HE 24 port, unfitted, shielded, for 24 individual modules in keystone design, module carrier front made of powder-coated steel plate, module holder made of galvanized steel plate, additional strain relief possible at the module carrier by means of cable binder, earthing screw with toothed disk, incl. approx. 40 cm earthing cable, all fully shielded modules are connected via the module holder, variants: BLACK or GRAY EAN: 4251122184369
Supplied: Metz Connect Patch Panel Keystone 24x gray empty 130926-0003KE, Packaging unit: 1 pcs, EAN: 4251122184369
This text is machine translated.
Features
- Keystone 19 inch module carrier 1HE 24-port
- unequipped, shielded
- For 24 single modules in keystone design
- Front of the module carrier made of powder-coated steel sheet
- Module holder made of zinc-coated steel plate
- Additional strain-relief clamp at the module carrier by means of cable binder possible
- Earthing screw with toothed washer
- Incl. 40 cm earth cable
- All fully shielded modules are connected via the module holder
- Variants: Black or gray
Scope of delivery
- Keystone module carrier unfitted
