Metz Connect 142M6X10010 M12 Patch cable CAT 6A SF/UTP 1.00 m Green PUR coating, Acid-resistant, Ozone-resistant, UV-res
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
SF/UTP
Connection type
M12
Cable length
1.00 m
Datasheet (PDF)
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details

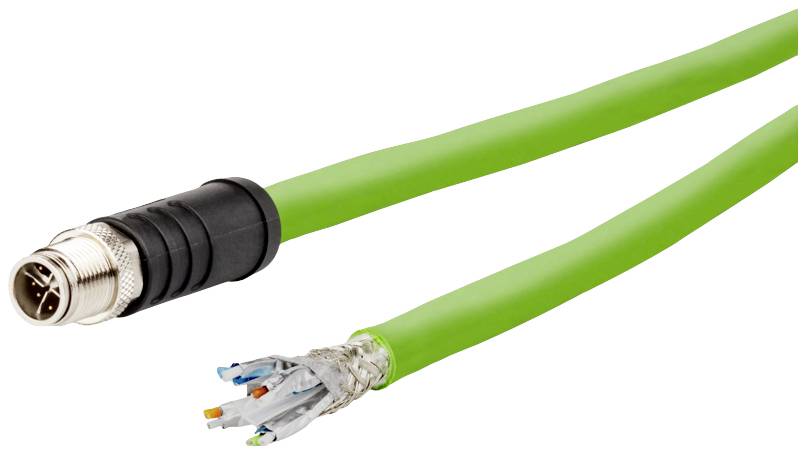

M12 Industrial Ethernet cable, X-coded, 1.0 m, M12 straight plug - free cable end, drag chain, PUR
- Copper cableNetwork cableEthernetIndustryM12 X-codedM12 plugM12X-codedDrag chain
Technical specifications
- Temperature operation -30 °C to +90 °C.Cable sheath diameter 7.80 mmShielding: shielded
- Product type
Patch cable
CAT 6A
SF/UTP
- Connection type
M12
- No. of A connectors
1 x
- Type A
M12 plug
- No. of B connections
1 x
- Type B
Open cable ends
- Cable length
1.00 m
- Factory colour
Green
- Connector version
straight
- Cable features
PUR coating
Acid-resistant
Ozone-resistant
UV-resistant
Suitable for drag chains
Halogen-free
Oil-resistant
germ-resistant
AWG 26/19
- Cable use
Networks
- Version
Cable
- Cable design
Round
Copper
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Halogen-free
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2860628 Metz Connect 142M6X10010 M12 Patch cable CAT 6A SF/UTP 1.00 m Green PUR coating, Acid-resistant, Ozone-resistant, UV-res
User & Safety Instructions
User & Safety Instructions 2860628 Metz Connect 142M6X10010 M12 Patch cable CAT 6A SF/UTP 1.00 m Green PUR coating, Acid-resistant, Ozone-resistant, UV-res
Description
PROFINET 4x 2x AWG26/19 type C highly flexible high-speed data cable of the transmission category CAT 6. The cable is halogen-free, flame resistant, oil resistant and abrasion resistant thanks to the PUR outer sheath. It is excellently suitable for use in the industrial environment. Due to high-quality shielding the high transmission security of data is ensured in electromagnetically loaded areas. For flexible applications, especially in drag chains or permanent moving machine parts in dry and damp rooms. Special properties: Flame-resistant, recyclable, LAB-free, RoHS compliant, ozone resistant, UV-resistant, suitable for drag chains, halogen-free, oil-resistant, high flexibility. Standard versions: 1.0 m, 2.0 m, 5.0 m, 10.0 m. Other lengths on request.
