Buy Metz Connect 15024A10S-E FO adapter Grey 1 pc(s)

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Datasheet 3798485 Metz Connect 15024A10S-E FO adapter Grey 1 pc(s)

User & Safety Instructions 3798485 Metz Connect 15024A10S-E FO adapter Grey 1 pc(s)

Metz Connect 15024A10S-e Product color: Grey, mounting: Rack mounting, rack capacity: 3U

This text is machine translated.

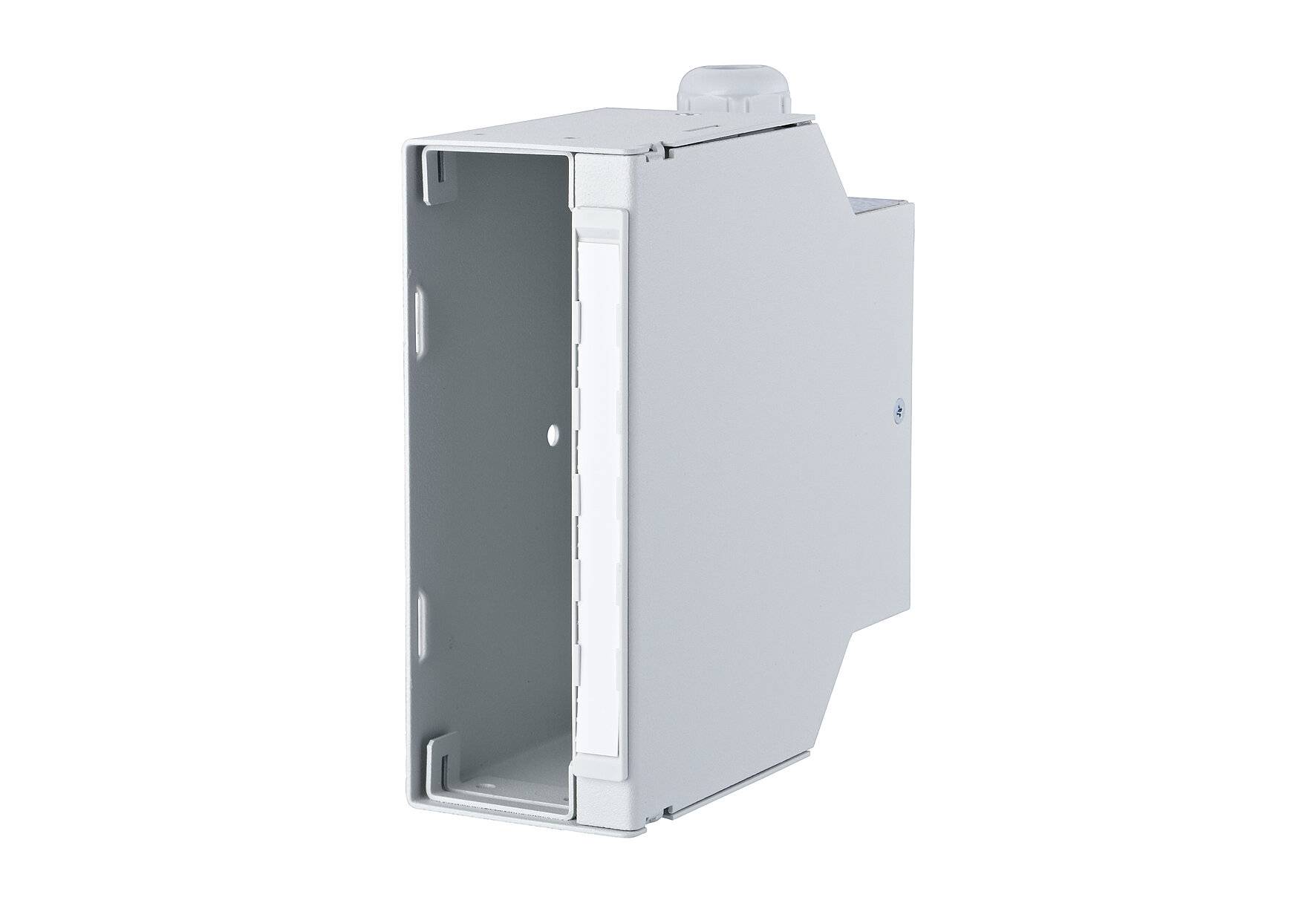

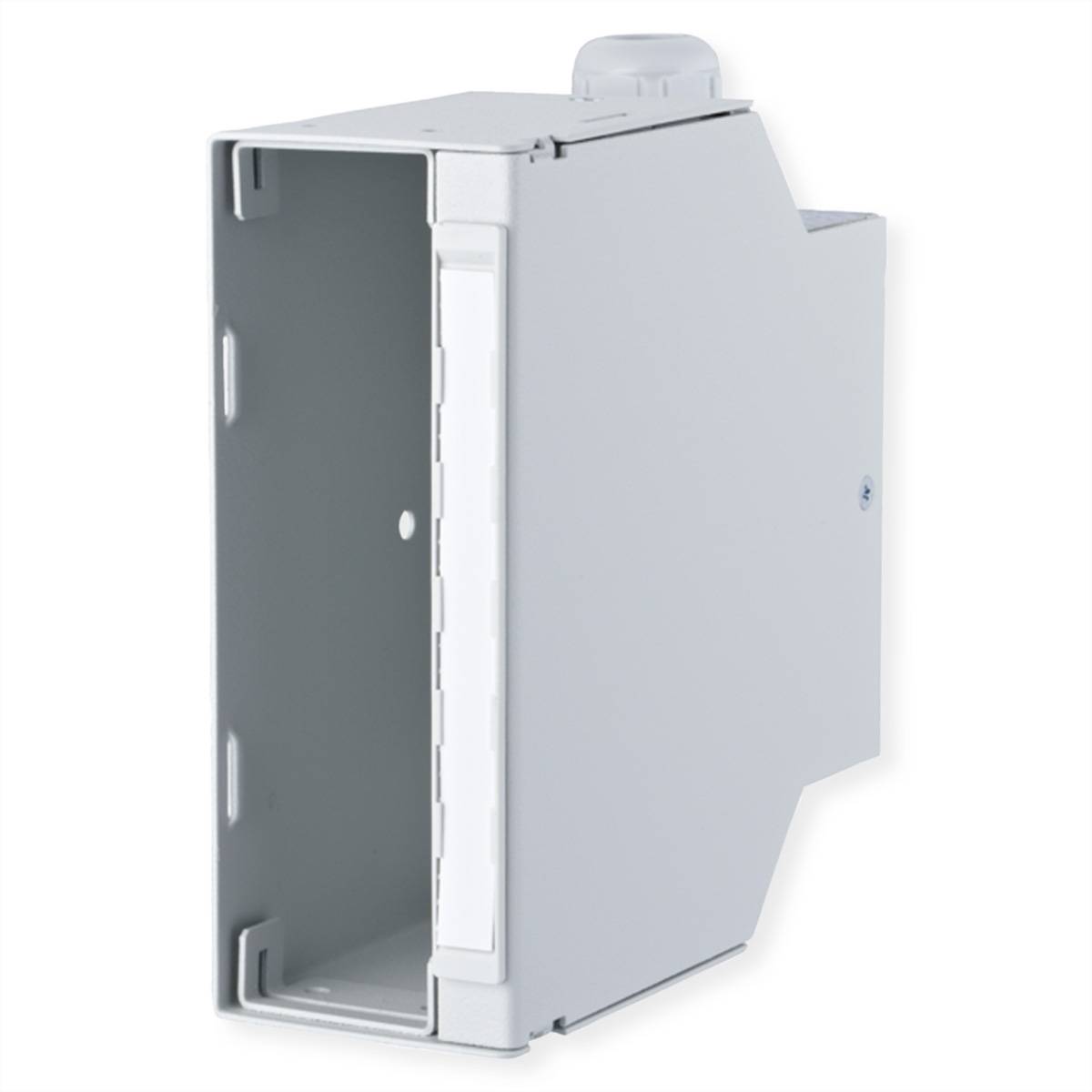

Splice distributor for carry rail TH35 without front plate
Grey housing
With or without splice box with crimp splice holder (CSH) for up to 12 splices
The mounting of two shrink splice holders (SSH) is possible on the splice holder
With fiber reservoir
Freely labeling strips
Mounting on the rail via very robust mounting rail holder
Different installation versions on the mounting rail possible
For different front plates 3HE/7TE
Cable routing from top or bottom, straight or diagonal, with M20 screw connection (up to 2 possible)
50 mm wide, 128 mm high, 132.5 mm deep (from mounting rail, without couplings)
Introduction of pre-assembled cables possible
A M20 cable entry with strain relief is included in the delivery
Fastening the housing cover with only one screw
Variants: With splice box, without splice box
