Metz Connect 15090077-I FO connector Aqua blue 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

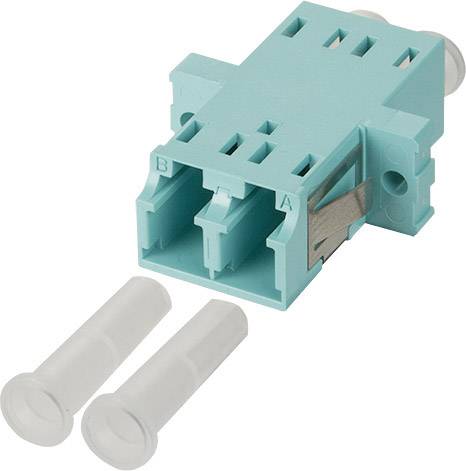

Metz OpDAT LC-D Clutch OM3 (aqua)
- LC DUPLEX OM3 clutch made of plastic
- Design SC simplex with metal clip
- Slotted guide sleeves made of ceramic for multi-mode applications
- With transparent dust protection caps for better visibility when red light test
- High material stability, surface quality and service life
Technical specifications
- Product type
FO connector
- Type A
LC socket
- Type B
LC socket
Duplex
Multimode OM3
- Fibre type
50/125 µ
- Factory colour
Aqua blue
- Width
22 mm
- Height
9.4 mm
- Depth
26.9 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1695693 Metz Connect 15090077-I FO connector Aqua blue 1 pc(s)
Description
LC duplex coupling aqua (OM3) made of plastic, Design SC simplex with metal clip. With slotted guide sleeves made of ceramic for single mode and multi-mode applications. Equipped with transparent dust protection caps for better visibility when red light test. High material stability, surface quality and service life (min. 1000 cycles). Screws and nuts are included in the delivery.
This text is machine translated.
This text is machine translated.
Features
- Min. life of 1000 mating cycles in guiding sleeve made of ceramic.
Scope of delivery
- Screws
- Hex Nuts
