Metz Connect 1509QKJA0010-E FO adapter Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

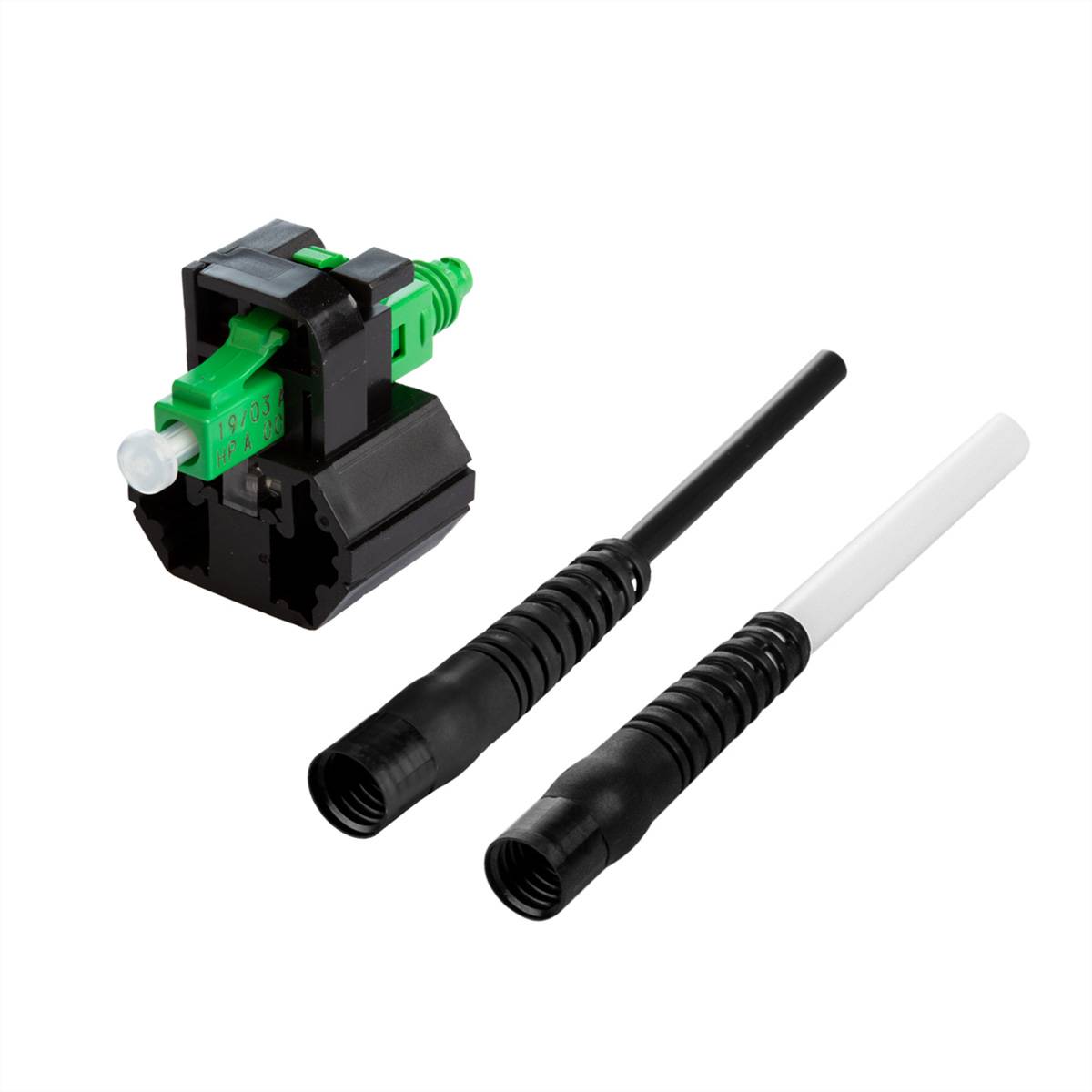

Metz Connect 1509QKJA0010-E glass fiber connection LC/APC plug
- Field-attachable fiber optic connector for single mode technology
- With hybrid technology
- No polishing, no sticking when assembling on site
- Simple, easy to learn & quick mounting
- Available with LC and SC connectors for single mode
Technical specifications
- Product type
FO adapter
Singlemode OS2
- Factory colour
Multicolour
- Cable length
0 mm
- Version
Connection cable
- Cable use
Networks
- Connection type
Fibreglass
- UKCA
yes
- Quantity per pack
10 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3798483 Metz Connect 1509QKJA0010-E FO adapter Multicolour 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798483 Metz Connect 1509QKJA0010-E FO adapter Multicolour 1 pc(s)
Description
OpDAT FAST Hybrid connector kit LC APC OS2 10 pieces for cables Field-attachable fiber optic connector for single mode technology. Hybrid technology: Refractive index gel plus opto-load guarantee very good and constant optical values. No polishing, no sticking when assembling on site. Simple, easy to learn, fast and cost-effective installation in less than two minutes. Available with LC and SC connectors for single mode (UPC and APC grinding). Connector kits for fiber optic cables with Ø 0.25 and Ø 0.9 mm. Connector kits for fiber optic cable with Ø 2.0 and Ø 3.0 mm. The plug can be assembled up to three times. Each connector has a serial number so that traceability is provided at all times
This text is machine translated.
Features
- Field-attachable fiber optic connector for single mode technology
- Hybrid technology: Refractive index gel plus opto-load guarantee very good and constant optical values
- No polishing, no sticking when assembling on site
- Simple, easy to learn, fast and cost-effective installation in less than two minutes
- Available with LC and SC connectors for single mode (UPC and APC finish)
- Connector kits for fiber optic cables with Ø 0.25 and Ø 0.9 mm
- Connector kits for fiber optic cable with Ø 2.0 and Ø 3.0 mm
- The plug can be assembled up to three times.
- Each connector has a serial number so that traceability is provided at all times.
- Depending on the version included in the delivery:
- A maintenance-free separation unit (Cleaver). It provides a oblique cut, so that high reflux attenuation values are achieved. The Cleaver can be used up to 200x.
- A cable assembly set for easy cable assembly
- A fiber guide for easy insertion of the fiber into the connector
- Usage areas: For FTTH and FITH-connections, repairs in the field, in difficult to access or space-restricted areas and for direct mounting on components
- Variants for wires: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide
Scope of delivery
- Metz Connect OpDAT FAST™Hybrid LCAPC OS2
