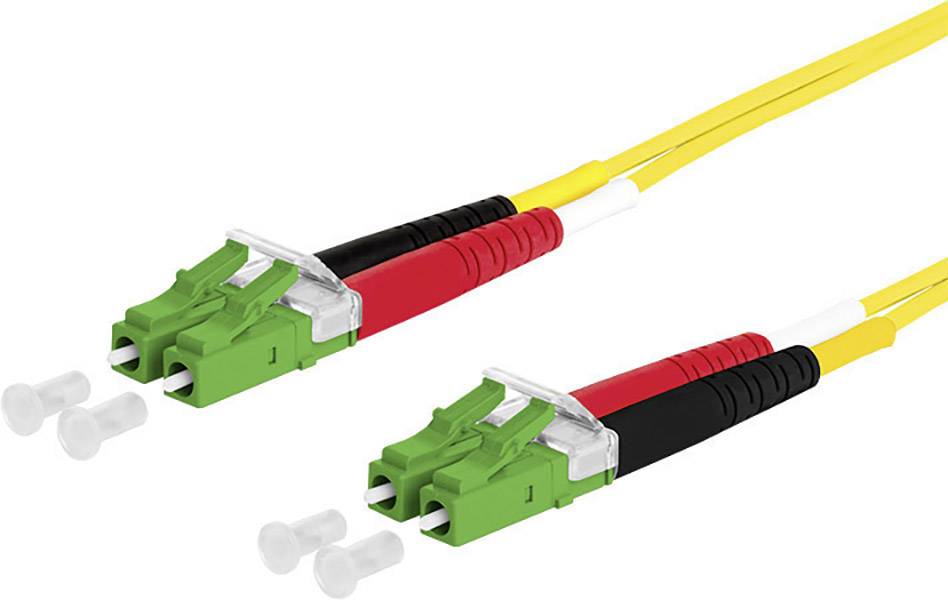

Metz Connect 151P1JAJA10E Fibreglass FO Cable [2x LC plug - 2x LC plug] 9/125 µ Singlemode OS2 1.00 m
EAN:
Part number:
Item no:
OpDAT Patch cable LC-D APC/LC-D APC OS2, 1.0 m.
Highlights & Details
- Single mode patch cable I-V (ZN) H E 9 / 125 OS2
- LC-D APC plug according to IEC 61754-20
- Single-mode fiber OS2, E 9 / 125 µm bending resistant according to IEC 60793-2-50 Type B6_A and B6_b and G.657. A2 and B2 compatible with G.652. D
- Outer diameter 2.0 x 4.2 mm
- Halogen-free sheath material with low smoke LSHF-FR, flame-resistant
- Duplex cable as the Zipcord (Figure 8) with two volladern and aramid as strain relief
- 100% tested
- This text is machine translated.
Technical specifications
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
2 x
- Type A
LC plug
- No. of B connections
2 x
- Type B
LC plug
- Fibre type
9/125 µ
Singlemode OS2
Duplex
- Attenuation
0.3
- Halogen-free
Yes
- Cable length
1.00 m
- Factory colour
Yellow
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Duplex
Flame-retardant
Halogen-free
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1694657 Metz Connect 151P1JAJA10E Fibreglass FO Cable [2x LC plug - 2x LC plug] 9/125 µ Singlemode OS2 1.00 m
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Single mode patch cable I-V (ZN) H E 9 / 125 OS2
- LC-D APC plug
- Single-mode fiber OS2, E 9 / 125 µm bending resistant according to IEC 60793-2-50 Type B6_A and B6_b and G.657. A2 and B2 compatible with G.652. D
- Halogen-free sheath material with low smoke LSHF-FR, flame-resistant
- Duplex cable as the Zipcord (Figure 8) with two volladern and aramid as strain relief
- 100% tested
