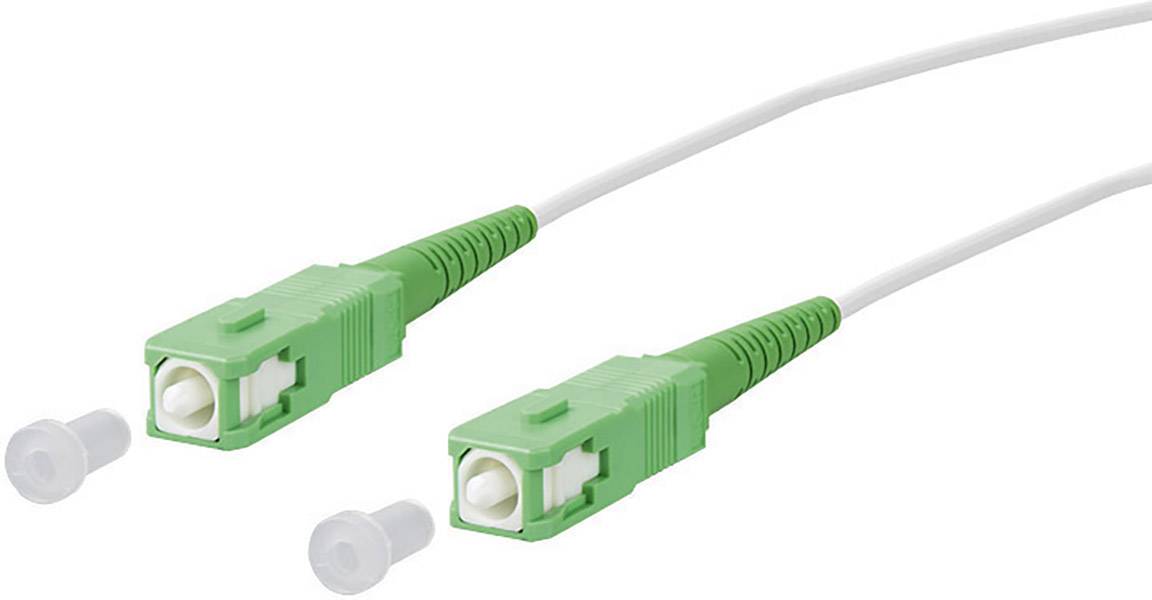

Metz Connect 151P7EAEA30E Fibreglass FO Cable [1x SC APC plug - 1x SC APC plug] 9/125 µ Singlemode OS2 3.00 m
EAN:
Part number:
Item no:
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 9 Piece(s) available
OpDAT Patch cable SC APC/SC APC OS2 white, 3.0 m.
Highlights & Details
- Simplex patch cable I-V (ZN) H1E 9 / 125 OS2 for the connection of the fiber-optic connection socket to the terminal device for the Fith Applications
- SC APC plug according to IEC 61754-4
- Single-mode fiber OS2, E 9 / 125 µm bending resistant according to IEC 60793-2-50 Type B6_A and B6_b and G.657. A2 and B2 compatible with G.652. D
- Outer diameter: 2.8 mm
- Cable sheath halogen-free, low smoke LSHF-FR (low smoke, halogen-free, flame retardant)
- 100% to insertion and return loss tested
- This text is machine translated.
Technical specifications
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
1 x
- Type A
SC APC plug
- No. of B connections
1 x
- Type B
SC APC plug
- Fibre type
9/125 µ
Singlemode OS2
Simplex
- Attenuation
0.3
- Halogen-free
Yes
- Cable length
3.00 m
- Factory colour
White
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Flame-retardant
Halogen-free
Simplex
FO
- Cable use
FO
- Version
Cable
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1694644 Metz Connect 151P7EAEA30E Fibreglass FO Cable [1x SC APC plug - 1x SC APC plug] 9/125 µ Singlemode OS2 3.00 m
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- SC APC plug
- Single-mode fiber OS2, E 9 / 125 µm bending resistant according to IEC 60793-2-50 Type B6_A and B6_b and G.657. A2 and B2 compatible with G.652. D
- Cable sheath halogen-free, low smoke LSHF-FR (low smoke, halogen-free, flame retardant)
- 100% to insertion and return loss tested
- Patch cable is provided with a serial number
