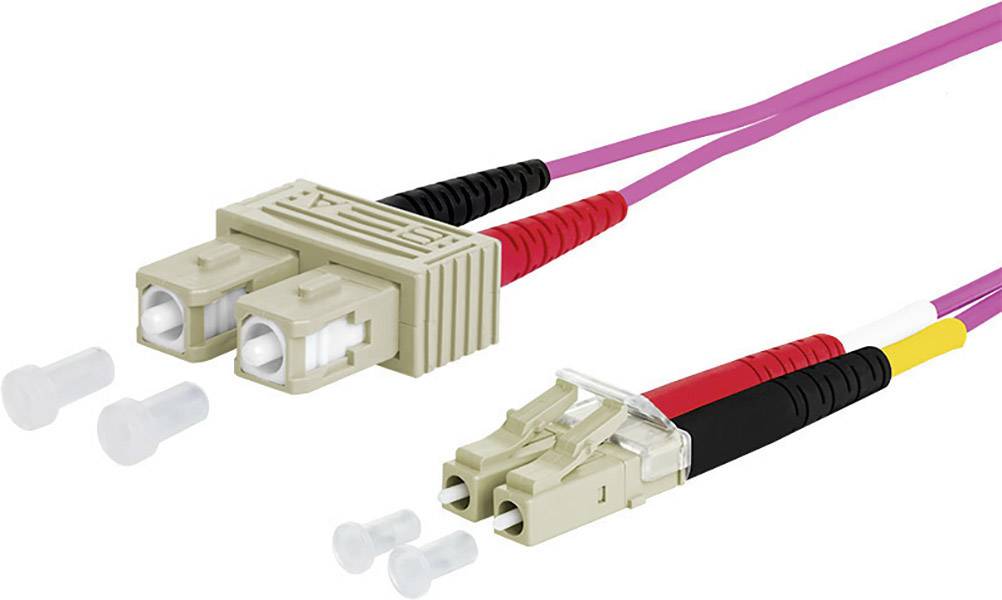

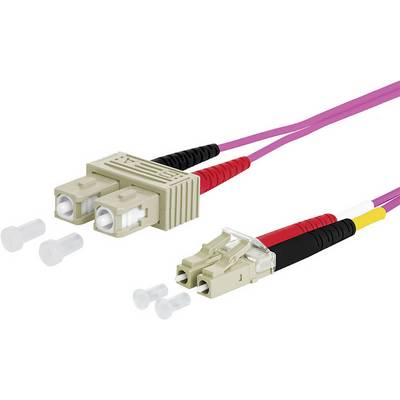

Metz Connect 151S1EOJO20E Fibreglass FO Cable 2.00 m Violet [2x SC plug - 2x LC plug] 50/125 µ Multimode OM4
EAN:
Part number:
Item no:
Highlights & Details
OpDAT Patch cable SC-D/LC-D OM4, 2.0 m
- SC plug to LC plug
- Duplex-Cable
- Factory colour: Violet
Technical specifications
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
2 x
- Type A
SC plug
- No. of B connections
2 x
- Type B
LC plug
- Fibre type
50/125 µ
Multimode OM4
Duplex
- Attenuation
0.4
- Halogen-free
Yes
- Cable length
2.00 m
- Factory colour
Violet
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Duplex
Flame-retardant
Halogen-free
FO
- Cable use
FO
- Version
Cable
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1694665 Metz Connect 151S1EOJO20E Fibreglass FO Cable 2.00 m Violet [2x SC plug - 2x LC plug] 50/125 µ Multimode OM4
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Multimode patch cable I-V (ZN) H 50/125 OM4
- SC-D APC plug, LC-D APC plug
- Laser-optimized multimode fiber bending insensitive OM4, G according to IEC 60793-2-10 50/125µm type A 1a.3
- Halogen-free sheath material with low smoke LSHF-FR, flame-resistant
- Duplex cable as the Zipcord (Figure 8) with two volladern and aramid as strain relief
- 100% tested
