Metz Connect Kabel Metz Connect Kabel N/A 1309515003-E Grey 1 pc(s) 1309515003-E Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket
Type
Kabel
Type A
RJ45 8p8c plug
Type B
RJ45 8p8c plug
Weight
0.0780 kg
Datasheet (PDF)
Metz Connect Kabel N/A 1309515003-E Grey 1 pc(s)
Highlights & Details
- RJ45 connection unit C6A in flange housing
- GHMT CAT.6A re-embedded PVP certified
- Suitable for 10 GBit Ethernet, Remote Power and HDBaseT
- Easy to mount connection of data lines
- Intelligent cable management in charger
Technical specifications
- Type
Kabel
- Product type
Socket
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Weight
0.0780 kg
- Factory colour
Grey
- Content
1 pc(s)
- Material
Zinc (die-cast)

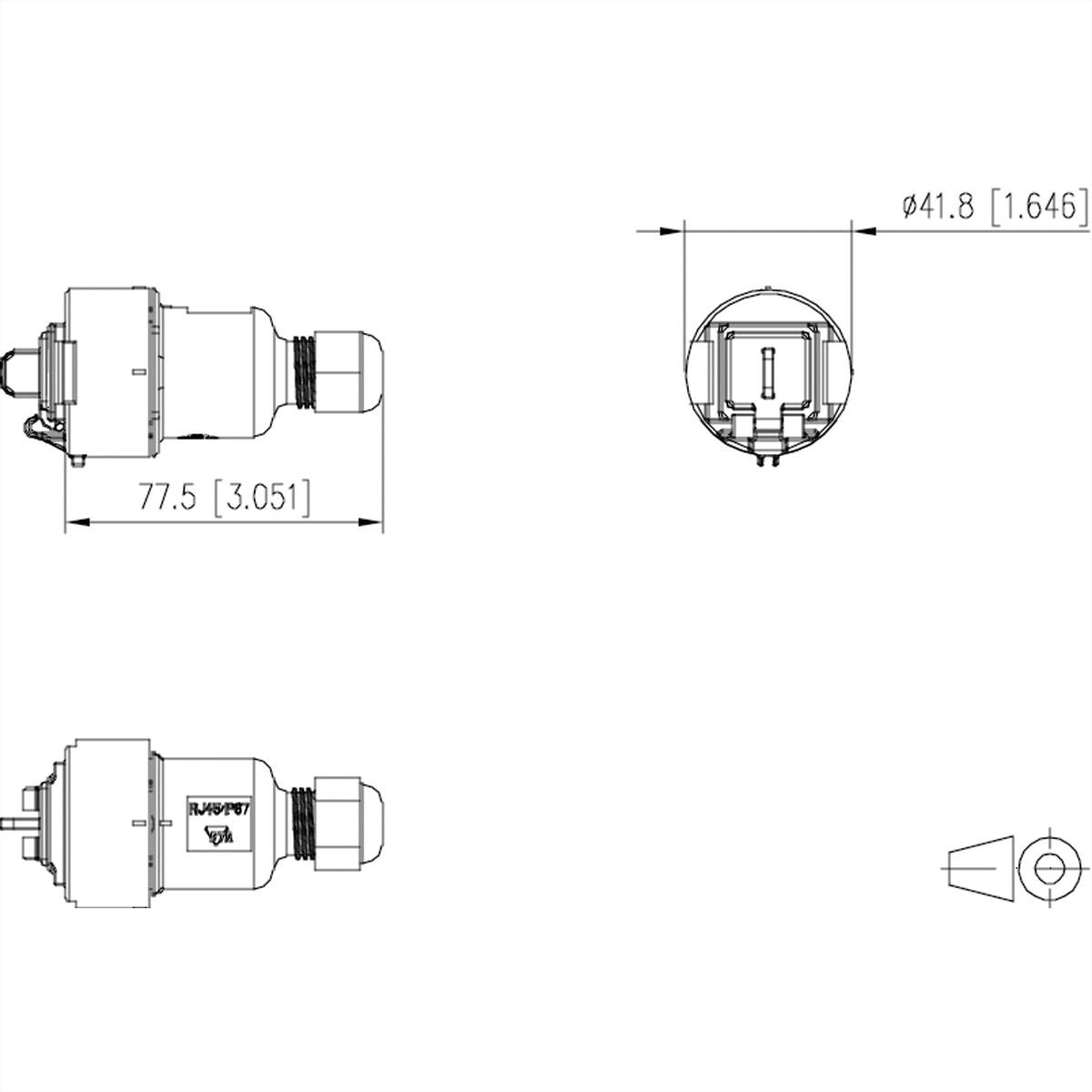

- Width
41.8 mm
- Height
41.8 mm
- Depth
77.5 mm
IP67
- Type
C6A Module
- UKCA
yes
- Sockets quantity
1
- Number of products included
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3799413 Metz Connect Kabel Metz Connect Kabel N/A 1309515003-E Grey 1 pc(s) 1309515003-E Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3799413 Metz Connect Kabel Metz Connect Kabel N/A 1309515003-E Grey 1 pc(s) 1309515003-E Grey 1 pc(s)
Description

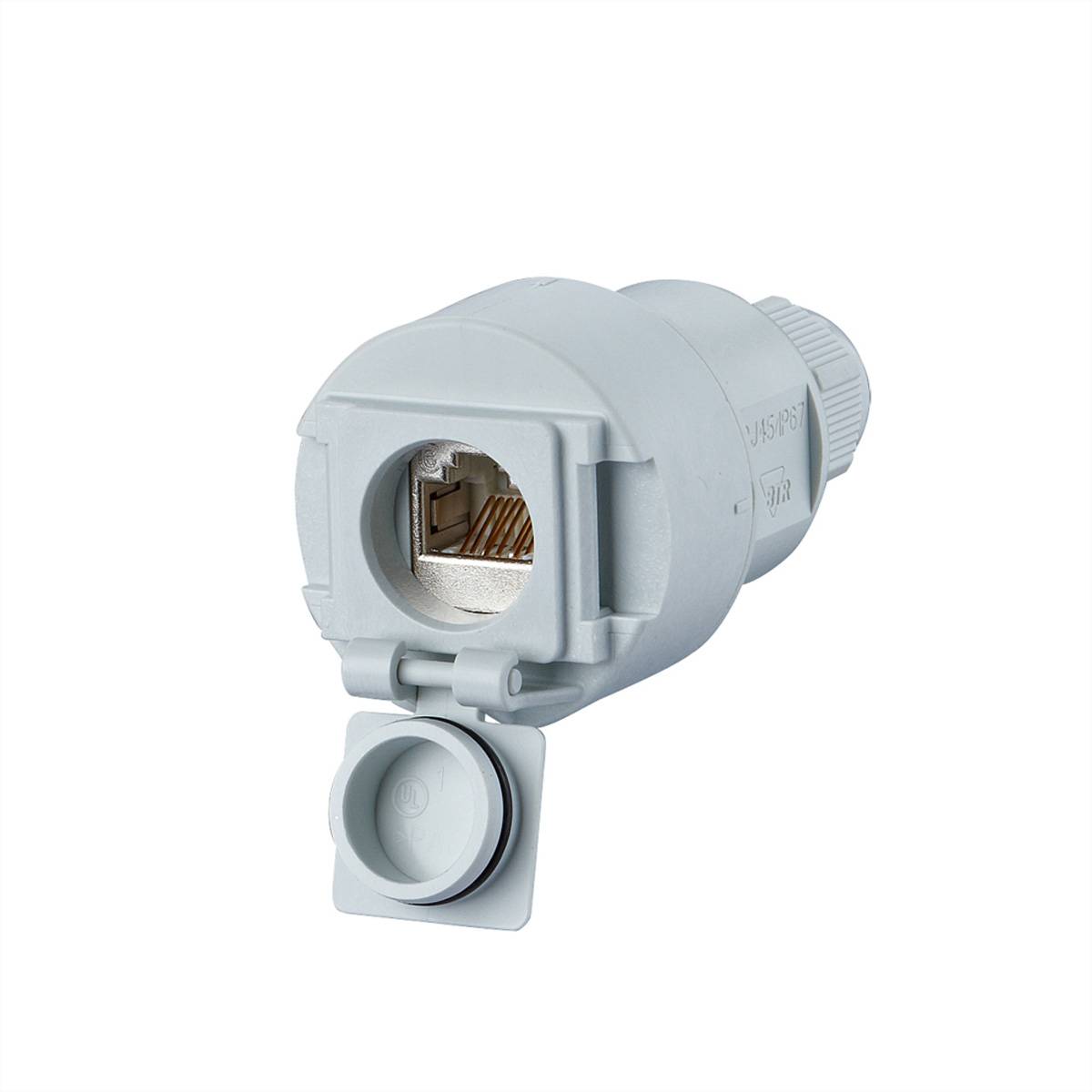

E-DAT Industry IP67 V6 cable coupling, 1 Port CAT.6A - C6Amodul RJ45-connection unit C6A in flange housing according to ISO/IEC 24702 and IEC 61076-3-106 variant 6. GHMT CAT.6A re-embedded PVP certified. CAT.6A component testing according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified. Class EA to ISO/IEC 11801, DIN EN 50173-1. Tested: Component up to 600 MHz, link up to 800 MHz. Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Power (PoE, PoE plus, PoE and 4PPPoE) and HDBaseT. This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals. Intelligent cable management in loading piece, also suitable for strongly drilled wires. Identification of the wire allocation T568A and T568B directly on the loading piece. Meets protection class IP67 when connected. Plug face in accordance with IEC 61076-3-106 (version 6). Large surface 360° shield contact. Can be used as free cable coupling (KK). Connection of standard RJ45 plugs possible (no IP protection). Mounting without special tools, strain-relief via snap-in clip directly at the loading piece of the module. Colour: Light gray RAL 7035
This text is machine translated.
Features
- RJ45 connection unit C6Amodul in flange housing according to ISO/IEC 24702 and IEC 61076-3-106 variant 6
- GHMT CAT.6A re-embedded PVP certified
- CAT.6A component testing according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- Class EA complies with ISO/IEC 11801, DIN EN 50173-1
- Tested: Component up to 600 MHz, link up to 800 MHz
- Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Power (PoE, PoE plus, PoE and 4PPPoE) and HDBaseT
- This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals.
- Intelligent cable management in loading piece, also suitable for strongly drilled wires
- Identification of the wire allocation T568A and T568B directly on the loading piece
- Meets protection class IP67 when connected
- Plug face in accordance with IEC 61076-3-106 (version 6)
- Large surface 360° shield contact
- Can be used as free cable coupling (KK)
- Connection of standard RJ45 plugs possible (no IP protection)
- Mounting without special tools, strain-relief via snap-in clip directly at the loading piece of the module
Scope of delivery
- Metz Connect E-DAT industry IP67 V6 cable coupling
