Metz Connect METZ CONNECT 1401505012-E, Rj-45, Schwarz RJ45 connector black cat.6 class EA 1401505012-E Plug Black 1 pc(
EAN:
Part number:
Item no:
Product type
RJ45 plug
Connector type
Plug
Connector standard
RJ45
Type
METZ CONNECT 1401505012-E, Rj-45, Schwarz
Type A
RJ45 8p8c plug
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included

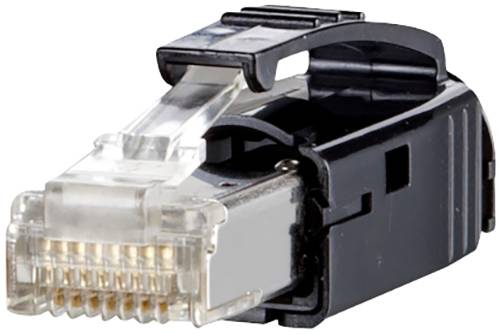

RJ45 connector black cat.6 class EA
Highlights & Details
- RJ45 MugConnectorsIndustryCat. 6 plugRJ45 plug with kink protection sleeveBTR Netcom
Technical specifications
- Type
METZ CONNECT 1401505012-E, Rj-45, Schwarz
- Product type
RJ45 plug
- Connector type
Plug
- Connector standard
RJ45
- Type A
RJ45 8p8c plug
- Type B
RJ45 8p8c plug
- Weight
0.0060 kg
- Factory colour
Black
- Content
1 pc(s)
- Contact material
Copper
- Width
13.90 mm
- Height
15.70 mm
- Length
43.30 mm
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860686 Metz Connect METZ CONNECT 1401505012-E, Rj-45, Schwarz RJ45 connector black cat.6 class EA 1401505012-E Plug Black 1 pc(
User & Safety Instructions
User & Safety Instructions 2860686 Metz Connect METZ CONNECT 1401505012-E, Rj-45, Schwarz RJ45 connector black cat.6 class EA 1401505012-E Plug Black 1 pc(
Description
Suitable for multi-port Cat.6 class E, A connector, Class E compliance, A to ISO/IEC 11801 Ed..2.2:2011-06, DIN EN 50173-1:2011-09, for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and PoE) and HDBaseT, port AWG 27/7 - 24/7 and AWG 26/1 - 24/1 possible, full-wire Cu conductor diameter 0.36 - 0.51 mm, Flex Cu conductor diameter 0.46 - 0.61 mm, wire diameter 0.85 - 1.05 mm, cable sheath up to 7.3 mm can be connected, connection of crimp contacts and shield with crimp tool is possible in one step, variant with and without bend relief, colored kink protection sleeves are available optionally, trumpet as bend protection of the connection cable, Can be used as test plug at IP67 protected sockets of the version 1, 4, 5, 6 and 14.
