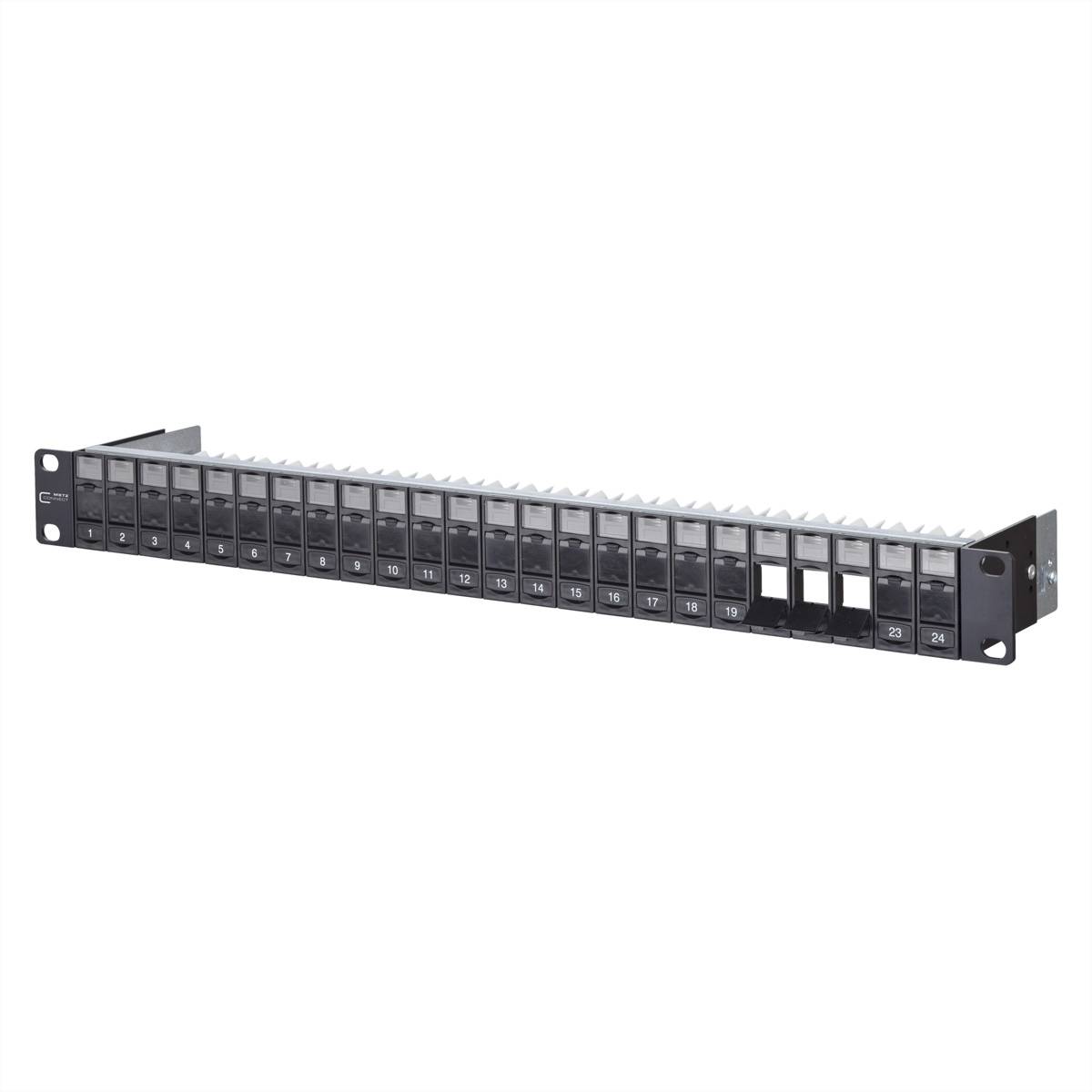

Metz Connect METZ CONNECT Keystone 19 Zoll Modulträge Unequipped 1 U Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Metz Connect 130920-BKKE control panel accessories
Highlights & Details
- Number of connections: 24
- Rack mounting
- Rack capacity: 1U
- Material: Acrylonitrile-butadiene-styrene (ABS), aluminum
- Black
Technical specifications
- Rack capacity: 1U
- Material: Acrylonitrile-butadiene-styrene (ABS),aluminum
Unequipped
- Rack unit
1 U
- Factory colour
Black
- Cable length
30 cm
- Version
Connection cable
- Cable use
Networks
- Material
Acrylonitrile butadiene styrene
- UKCA
yes
- Ports quantity
24
Documents & Downloads
Datasheet
Datasheet 3799408 Metz Connect METZ CONNECT Keystone 19 Zoll Modulträge Unequipped 1 U Black
User & Safety Instructions
User & Safety Instructions 3799408 Metz Connect METZ CONNECT Keystone 19 Zoll Modulträge Unequipped 1 U Black
Description
19 inch 1HE module carrier for 24 individual modules in Keystone design Module carrier front made of black anodized aluminum. Module bracket made of plastic with dust-protection flaps (more colors available as accessories) can be removed toward the front. Integrated cable traps, additional strain-relief possible. Viewing window for labelling insert. For 210 x 297 mm labeling sheet, see accessories. Earthing bolts M6 x 10 with nut and tooth washer. Incl. 30 cm earth cable. All fully shielded modules connected with the help of earthing rails
This text is machine translated.
Features
- 19 inch 1HE module carrier for 24 individual modules in keystone design
- Front of the module carrier made of black anodized aluminum
- Module bracket made of plastic with dust-protection flaps (more colors available as accessories) can be removed toward the front
- Integrated cable traps, additional strain-relief possible
- Viewing window for labeling insert
- For 210 x 297 mm labeling sheet, see accessories
- Earthing bolts M6 x 10 with nut and tooth washer
- Incl. 30 cm earth cable
- All fully shielded modules connected with the help of earthing rails
Scope of delivery
- Keystone 19 inch module carrier unfitted including 30 cm earthing cable
