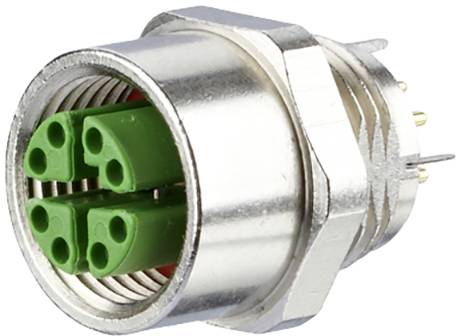

Metz Connect MMT361A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
PCB terminal
Connector type
Socket
Connection side A
M12
No. of pins
8
Nominal voltage
60 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
PCB socket M12, X-coded, 8-pin, IP67
- M12 PCB socketM12 EthernetBTR Netcom
Technical specifications
- Dimensions (DxH) 16.50 x 20.50 mm
- Packaging type
Piece
- Type
MMT361A315
- Product type
PCB terminal
- Connector type
Socket
- Connection side A
M12
- No. of pins
8
- Nominal voltage
60 V DC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Outside Ø
16.50 mm
- Connection
Socket
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
X
IP67
- Features
X-coded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
MMT361A315
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2860676 Metz Connect MMT361A315 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Piece
Description
PCB socket M12, 8-pin, X-coded according to IEC 61076-2-109, 10 GBit Ethernet suitable as per IEEE 802.3an, THR solderable, direction of insertion vertical, contact carrier green, protection class IP67 when connected, suitable for applications in the railway industry as per data sheet.
