Metz Connect MMT471A315-0003 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single
EAN:
Part number:
Item no:
Product type
PCB terminal
Connector type
Socket
Connector standard
Ethernet
Connection side A
M12
No. of pins
8
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Only 3 Piece(s) available
Highlights & Details

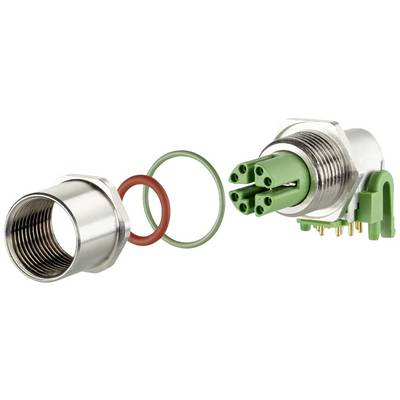

PCB socket M12, X-coded, 8-pin, IP67, 90° angled, Max. 2.5 mm wall thickness, in individual parts
- M12 PCB socketM12 EthernetBTR Netcom
Technical specifications
- Dimensions (LxWxH) 30.65 x 16.82 x 18.95 mm
- Packaging type
Single
- Type
MMT471A315-0003
- Product type
PCB terminal
- Connector type
Socket
- Connector standard
Ethernet
- Connection side A
M12
- No. of pins
8
- Nominal voltage
60 V DC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Connection
M12 socket
- Factory colour
Metal
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
X
IP67
- Features
Ethernet
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
MMT471A315-0003
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2860681 Metz Connect MMT471A315-0003 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2860681 Metz Connect MMT471A315-0003 PCB terminal M12 Socket No. of pins (RJ): 8 1 pc(s) Single
Description
PCB socket M12, 8-pin, X-coded in accordance with IEC 61076-2-109, 90° angled, 10-Gbit Ethernet suitable in accordance with IEEE 802.3an, THR solderable plug-in direction, horizontal contact carrier green, protection class IP67 when connected, suitable for a wall thickness up to 2.5 mm, in individual components, suitable for applications in the railway industry according to data sheet.
