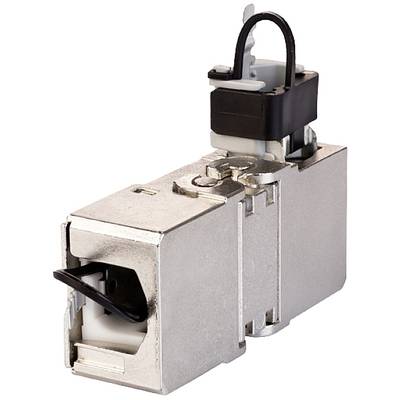

Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] 0 mm Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

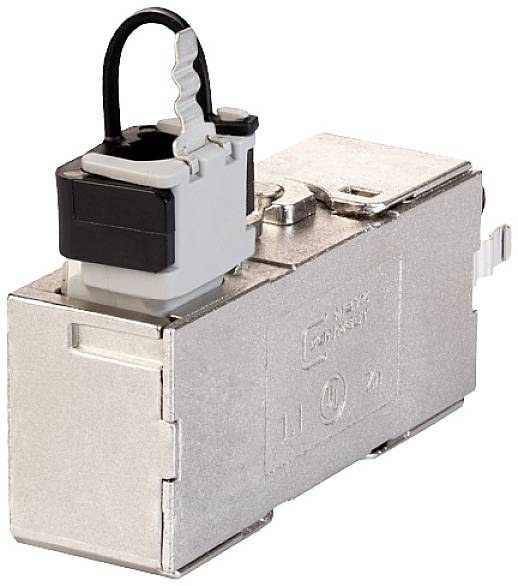

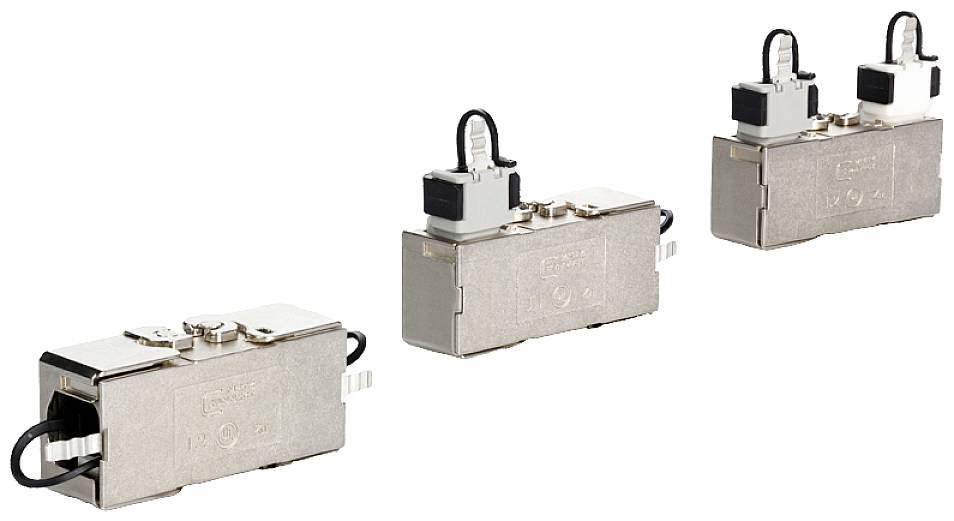

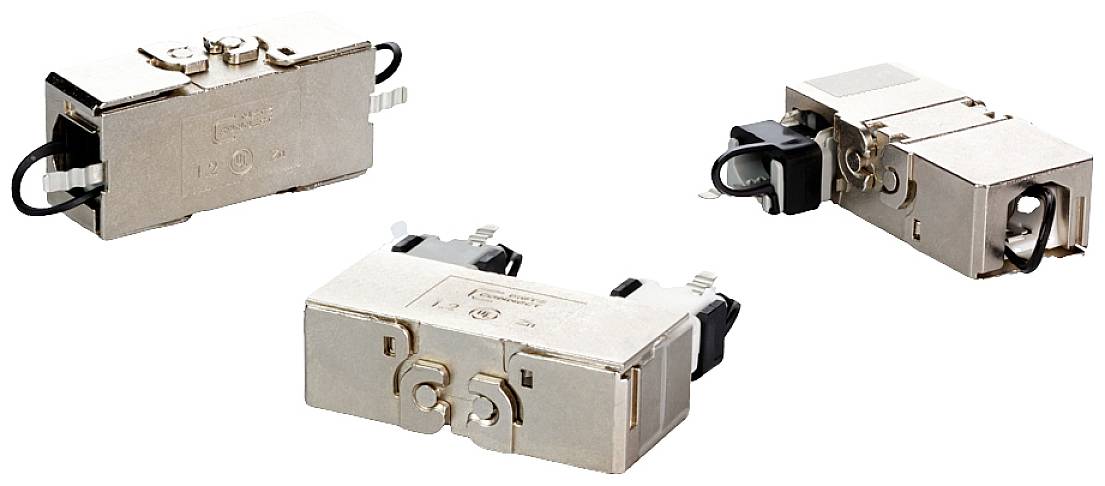

Cable connector class EA 270°

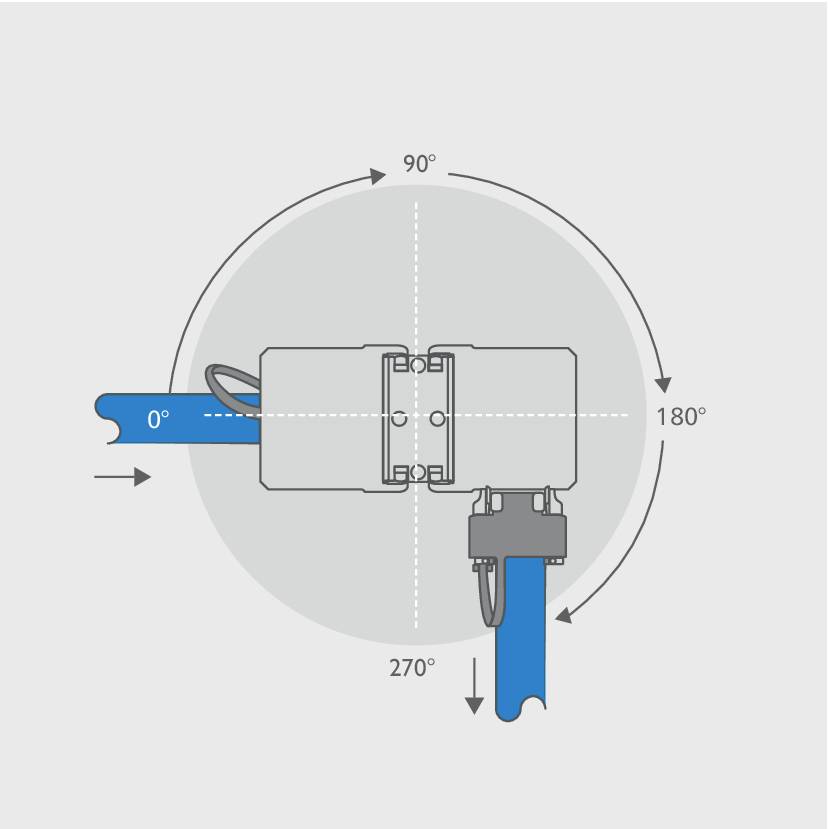

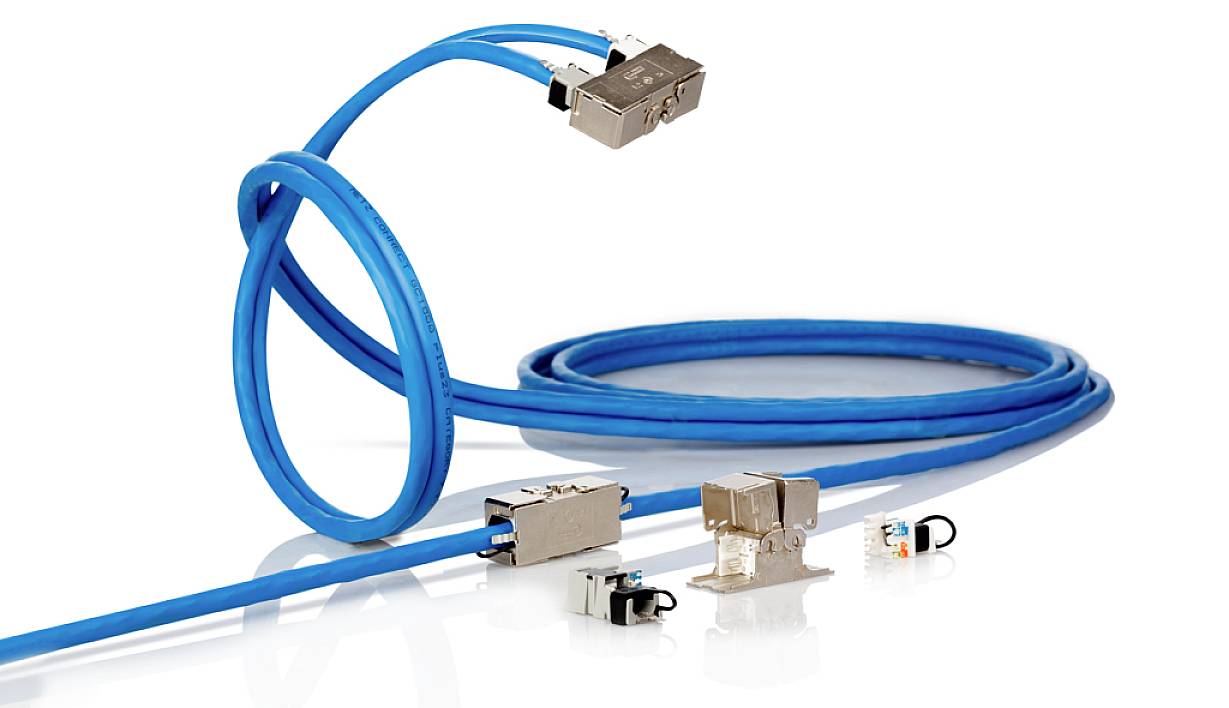

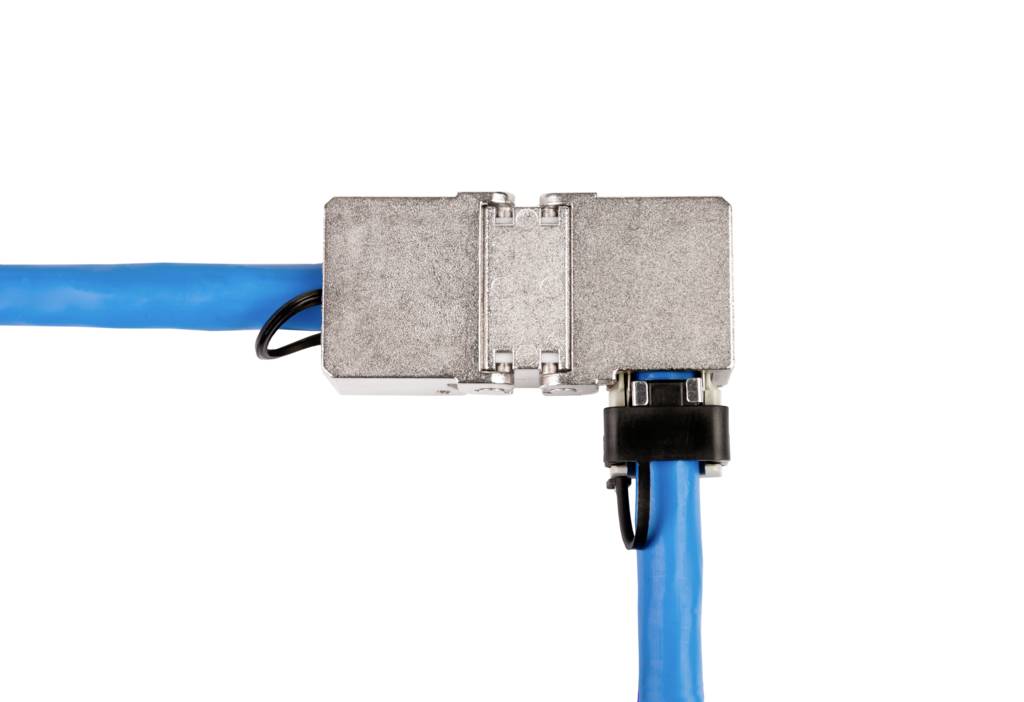

- Field-attachable class EA cable connector for 8-wire cables (optionally also for 4-wire cables)Cable outlet angled 90° and 270°For connection/extension/repair/relocation of Cu data cables up to Cat. 7A
- This text is machine translated.
Technical specifications
CAT 7a
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 socket
- No. of B connections
1 x
- Type B
RJ45 socket
- Cable length
0 mm
- Factory colour
Silver
- Cable use
Networks
- Version
Adapter
- Weight
0
- Product type
Networks Adapter
Documents & Downloads
Datasheet
Datasheet 2588167 Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] 0 mm Silver
Description
Features
- In conjunction with cat. 6a or higher Cu-cables are fulfilled the class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173For 10GBit Ethernet (IEEE 802.3an), Remote Power (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP suitableCompact design, length 46.6 mm x width 14.7 mm x height 31.8 mmRobust, one-piece and reusable housing made of zinc die-cast, refinedSimple assembly - installation without special tools, strain relief by snap-in clip directly at the loading pieceIntelligent cable management in the loading piece - also suitable for strongly drilled wiresShield connection and strain reliefIdentification of the wire assignment T568A and T568B directly on the charging pieceSimple extension or relocation of existing infrastructure C6A module by re-usable or re-usable loading piecesEasy to mount connection of data lines AWG 26/1 to 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminalsConductor diameter solid wire 0.409 to 0.643 mmConductor diameter stranded wire 0.483 to 0.762 mmSuitable for cable jacket diameters from 5.5 to 10 mmFully shielded design according to DIN EN 50173
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
![RJ45 Networks Adapter CAT 5e 90° angled at the bottom [1x RJ45 plug - 1x RJ45 socket] 0.00 m Black Renkforce](https://asset.conrad.com/media10/isa/160267/c1/-/en/1362472_LB_01_FB/rj45-networks-adapter-cat-5e-90-angled-at-the-bottom-1x-rj45-plug-1x-rj45-socket-0-00-m-black-renkforce.jpg)
![Renkforce RJ45 Networks Adapter CAT 6 [1x RJ45 socket - 1x RJ45 socket] Metal](https://asset.conrad.com/media10/isa/160267/c1/-/en/1404063_LB_02_FB/renkforce-rj45-networks-adapter-cat-6-1x-rj45-socket-1x-rj45-socket-metal.jpg)
![Renkforce RJ45 Networks Adapter CAT 5e [1x RJ45 socket - 1x RJ45 socket] White](https://asset.conrad.com/media10/isa/160267/c1/-/en/1381787_LB_00_FB/renkforce-rj45-networks-adapter-cat-5e-1x-rj45-socket-1x-rj45-socket-white.jpg)
![Renkforce RJ45 Networks Adapter CAT 6A [1x RJ45 socket - 1x RJ45 socket]](https://asset.conrad.com/media10/isa/160267/c1/-/en/002265799PI00/renkforce-rj45-networks-adapter-cat-6a-1x-rj45-socket-1x-rj45-socket.jpg)
![Renkforce RJ45 Networks Adapter CAT 6A [1x RJ45 socket - 1x RJ45 socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/002265785PI00/renkforce-rj45-networks-adapter-cat-6a-1x-rj45-socket-1x-rj45-socket-black.jpg)
![RJ45 Networks Adapter CAT 5e Angled 90° upward [1x RJ45 plug - 1x RJ45 socket] 0.00 m Black Renkforce](https://asset.conrad.com/media10/isa/160267/c1/-/en/1362471_LB_00_FB/rj45-networks-adapter-cat-5e-angled-90-upward-1x-rj45-plug-1x-rj45-socket-0-00-m-black-renkforce.jpg)
![Renkforce RJ45 Networks Adapter CAT 6A [1x RJ45 8p8c socket - 1x RJ45 8p8c socket]](https://asset.conrad.com/media10/isa/160267/c1/-/en/002265787PI00/renkforce-rj45-networks-adapter-cat-6a-1x-rj45-8p8c-socket-1x-rj45-8p8c-socket.jpg)
![Renkforce RJ45 Networks Adapter CAT 6A [1x RJ45 socket - 1x RJ45 socket] White](https://asset.conrad.com/media10/isa/160267/c1/-/en/1574604_LB_00_FB/renkforce-rj45-networks-adapter-cat-6a-1x-rj45-socket-1x-rj45-socket-white.jpg)
![Renkforce RJ45 Networks Adapter CAT 6 [1x RJ45 socket - 1x RJ45 socket] Metal](https://asset.conrad.com/media10/isa/160267/c1/-/en/002281366PI00/renkforce-rj45-networks-adapter-cat-6-1x-rj45-socket-1x-rj45-socket-metal.jpg)
![Renkforce RJ45 connector Networks Adapter CAT 6A [1x RJ45 socket - 1x RJ45 socket]](https://asset.conrad.com/media10/isa/160267/c1/-/en/002265805PI00/renkforce-rj45-connector-networks-adapter-cat-6a-1x-rj45-socket-1x-rj45-socket.jpg)
![Renkforce RJ45 Networks T adapter CAT 6 [2x RJ45 socket - 1x RJ45 plug] 15.00 cm Metal](https://asset.conrad.com/media10/isa/160267/c1/-/en/1650722_LB_00_FB/renkforce-rj45-networks-t-adapter-cat-6-2x-rj45-socket-1x-rj45-plug-15-00-cm-metal.jpg)
![Renkforce RJ45 Networks T adapter CAT 5e [2x RJ45 socket - 1x RJ45 plug] 15.00 cm Metal](https://asset.conrad.com/media10/isa/160267/c1/-/en/1650572_LB_00_FB/renkforce-rj45-networks-t-adapter-cat-5e-2x-rj45-socket-1x-rj45-plug-15-00-cm-metal.jpg)
![Renkforce RJ45 / USB-C® Networks Adapter [1x RJ45 plug - 1x USB-C® socket] Anthracite grey](https://asset.conrad.com/media10/isa/160267/c1/-/en/002441813PI00/renkforce-rj45-usb-c-networks-adapter-1x-rj45-plug-1x-usb-c-socket-anthracite-grey.jpg)
![Renkforce USB-C®, RJ45 Adapter cable [1x USB-C® plug - 1x RJ45 8p8c plug] 3.00 m Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/002189861PI00/renkforce-usb-c-rj45-adapter-cable-1x-usb-c-plug-1x-rj45-8p8c-plug-3-00-m-black.jpg)
![Renkforce RJ45 Networks Adapter CAT 6 [1x RJ45 socket - 1x RJ45 socket] Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/002266969PI00/renkforce-rj45-networks-adapter-cat-6-1x-rj45-socket-1x-rj45-socket-black.jpg)
![Renkforce RJ45 Networks Adapter cable [1x RJ45 8p8c socket - 1x Clip terminal] 30 cm Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/003221988PI00/renkforce-rj45-networks-adapter-cable-1x-rj45-8p8c-socket-1x-clip-terminal-30-cm-black.jpg)
![Renkforce RJ45 (cross-over) Networks Adapter CAT 5e [1x RJ45 socket - 1x RJ45 socket] Metal](https://asset.conrad.com/media10/isa/160267/c1/-/en/971918_LB_00_FB/renkforce-rj45-cross-over-networks-adapter-cat-5e-1x-rj45-socket-1x-rj45-socket-metal.jpg)
![Renkforce RJ45 Networks Adapter cable [1x RJ45 8p8c plug - 1x Clip terminal] 30 cm Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/003221987PI00/renkforce-rj45-networks-adapter-cable-1x-rj45-8p8c-plug-1x-clip-terminal-30-cm-black.jpg)
![Renkforce RJ45 Networks Adapter cable [1x RJ45 8p8c plug - 1x Clip terminal] 30 cm Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/003221989PI00/renkforce-rj45-networks-adapter-cable-1x-rj45-8p8c-plug-1x-clip-terminal-30-cm-black.jpg)
![Metz Connect RJ45 Networks Adapter CAT 7a [1x RJ45 socket - 1x RJ45 socket] 0 mm Silver](https://asset.conrad.com/media10/isa/160267/c1/-/en/002588168PI00/metz-connect-rj45-networks-adapter-cat-7a-1x-rj45-socket-1x-rj45-socket-0-mm-silver.jpg)

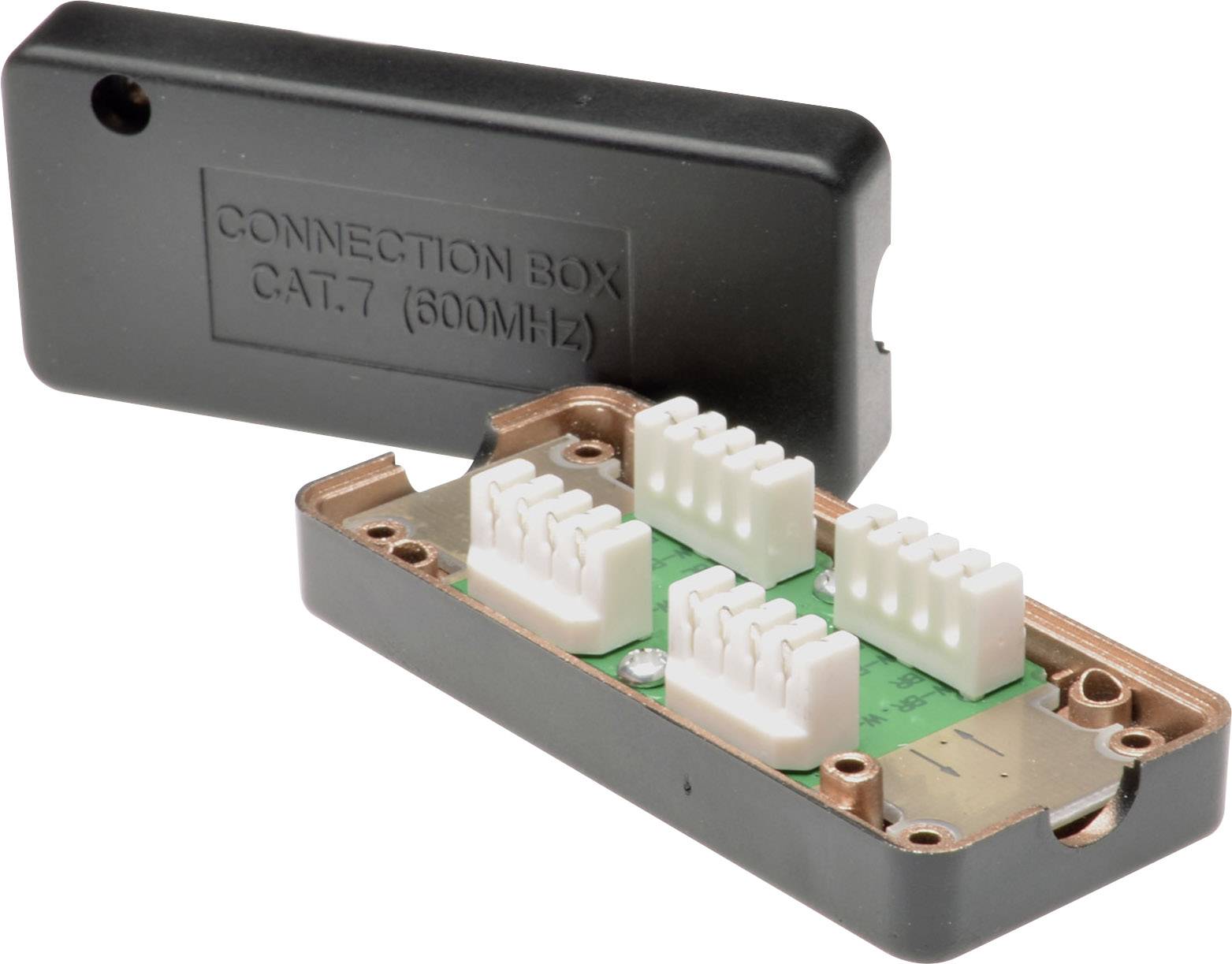

![Digitus Networks Adapter CAT 7 [1x LSA, Cut & Clip - 1x LSA, Cut & Clip] 0.08 m Black](https://asset.conrad.com/media10/isa/160267/c1/-/en/001934431PI01/digitus-networks-adapter-cat-7-1x-lsa-cut-clip-1x-lsa-cut-clip-0-08-m-black.jpg)
