Buy Digitus Networks Adapter CAT 7 [1x LSA, Cut & Clip - 1x LSA, Cut & Clip] 0.08 m Black | Conrad Electronic

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

'CAT.7 connection box (600MHz)' opened with visible connection terminals and circuit board, housing cover placed beside it.

'CAT.7 connection box (600MHz)' opened with visible connection terminals and circuit board, housing cover placed beside it.

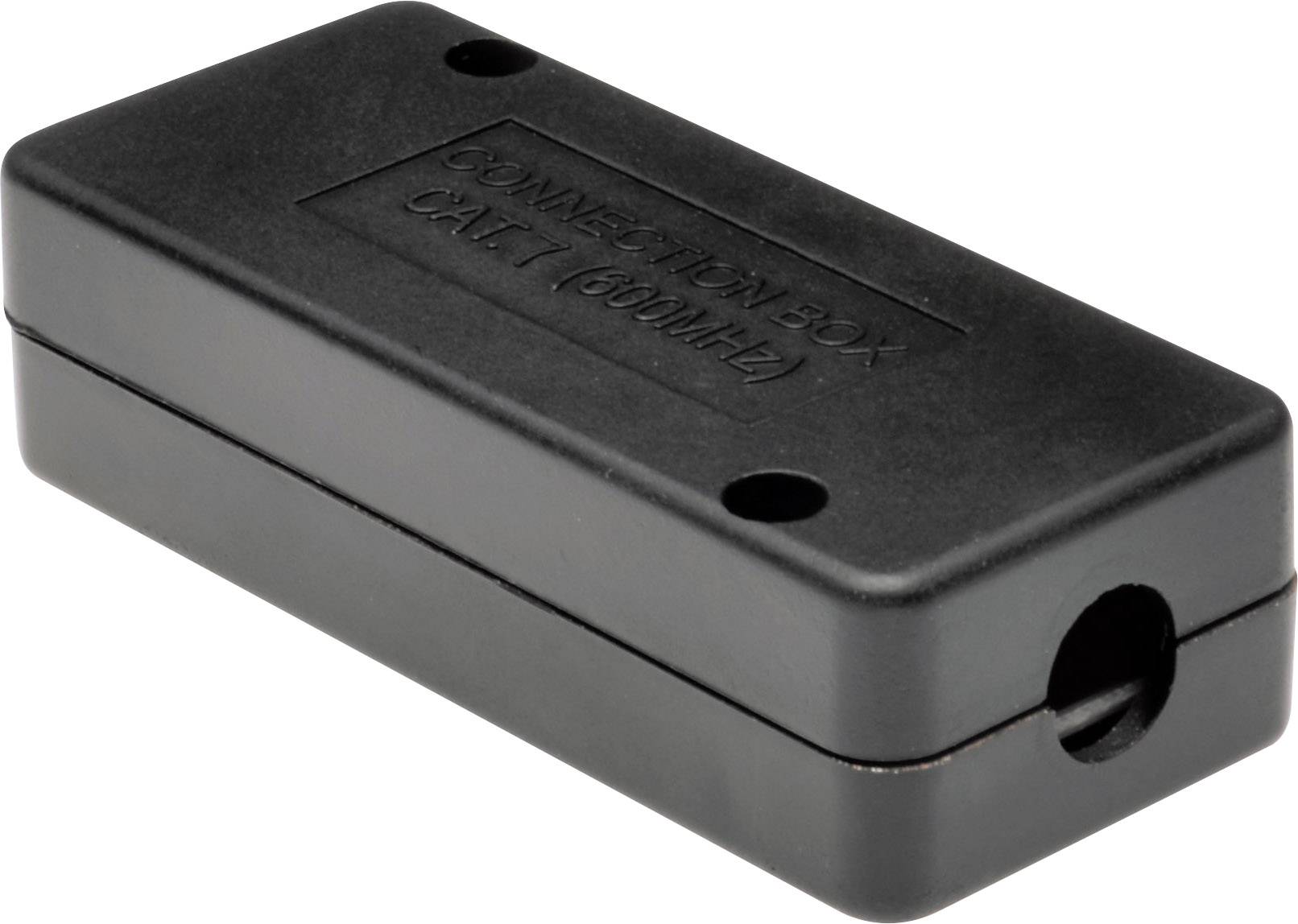

A black connection socket with the inscription 'Connection Box C-KIT (600 MHz)'. It has holes for cable connections on both sides.

1/2

Digitus

Datasheet (PDF)

149 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.51 / piece)

€

Report legal concerns

Highlights & Details

Network cable connection module CAT 7, 600 MHz LSA-strips for AWG 22-26, shielded

Suitable for installation in dado trunking, flush-mounted & surface-mounted
Cable installation via LSA strips, colour coded as per EIA/TIA 568 A & B
Suitable for connecting installation cables - extension of cables, replacement of defective cable sections
Integrated strain relief for installation cable

Technical specifications

Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
Material casing: ABS UL-94V-0
Material RJ45 socket: ABS UL 94V-0
Contact RJ45 socket: Nickel plated phosphor bronze, 0.5 μ gold plated contact
RJ-45 shielding: Nickel-plated bronze
LSA-cutting terminal: Krone LSA+, UL 94V-0, galvanized phosphor bronze
PRINTED CIRCUIT BOARD FR4, UL 94V-0
Physical properties:
OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Terminal: Greater than 200 in accordance with ISO/IEC 11801, IEC 60603-7-5
Wire intake: 22-26 AWG solid and stranded conductor
Insulation resistance: Greater than 500 MOhm
Contact resistance: Less than 20 milliohms
Dielectric strength 1000VDC (contact/contact), 1500VDC (contact/ground)

: CAT 7

No. of A connectors: 1 x

Type A: LSA
Cut & Clip

No. of B connections: 1 x

Type B: LSA
Cut & Clip

Cable length: 0.08 m

Factory colour: Black

Cable features: Shielded

Cable use: Networks

Version: Adapter

: Copper

Weight: 0.10

Plastic free packaging: Plastic-free packaging

Product type: Networks Adapter

Documents & Downloads

Datasheet

Datasheet 1934431 Digitus Networks Adapter CAT 7 [1x LSA, Cut & Clip - 1x LSA, Cut & Clip] 0.08 m Black

User & Safety Instructions

User & Safety Instructions 1934431 Digitus Networks Adapter CAT 7 [1x LSA, Cut & Clip - 1x LSA, Cut & Clip] 0.08 m Black

Description

The DIGITUS® CAT 7 connection module is used to optimally connect shielded data cables. Use the connector module to extend the wiring or replace damaged cables with a new one without having to reinstall the entire wiring section. For a simple and quick installation the cable connector uses the proven LSA-technology with 45°-inclination of the contacts.

This text is machine translated.

Features

Suitable for AWG 22-26 wire average

Hints

Please check the adapter pin layout. Depending on use, required pin layouts may differ.
