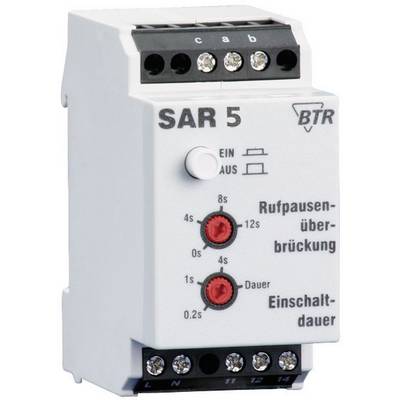

Metz Connect SAR5 Power-on relay
EAN:
Part number:
Item no:
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
BTR heavy-current start-up relay SAR 5 for carry rail TH35
Highlights & Details
- Remote switching via call signal
- Adjustable switching times
- Carry rail mounting
Technical specifications
- Product type
Power-on relay
- Dim
(W x H x D) 35 x 68 x 60 mm
- Factory colour
Light grey
- Width
35 mm
- Height
68 mm
- Depth
60 mm
- Switching capacity
1500 VA AC 240 VA at <30 V/DC 50 VA at >30 V/DC
- Switching voltage
max. 250 V /AC
- Switching current
max. 8 A
- Supply voltage
24 V (AC/DC), 10 mA
- Screen size diagonal (inches)
1.0 inch
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 930510 Metz Connect SAR5 Power-on relay
Conformity certificate
Conformity certificate 930510 Metz Connect SAR5 Power-on relay
Description
The SAR 4 and SAR 5 switches an external signal generator (e.g. bell, horn or lamp) through a contact with its own or separate power supply when a control voltage is applied (e.g. incoming call voltage of a telecommunications connection line). With the in-built switch the external signalling can be switched on or off. The SAR 4 and 5 are connected to a telecommunications line or to a direct-voltage signal source and controlled by the call voltage or the control voltage. The mounting is done on a carry rail TH35. With the help of two potentometers the call-pause bridging and the switch-on duration restriction can be set individually. This makes it possible to connect different devices like blinking lights or surge current switch. The SAR 4 and SAR 5 have a changeover contact for connecting the devices. Reaction only to the control voltage, not to the dial pulse (IWV).
Features
- Mounting on carry rail TH35
- In-built switch for switching on and off the external signalling
- Connection at telecommunications connection line or direct-voltage signal source
- Adjustable fall delay and call-pause bridging for an optimum control of the connected consumers
