1/2
Metz Connect Sonstige Installationstechnik Unequipped White
EAN:
Part number:
Item no:
Datasheet (PDF)
Metz Connect 130861-0602KE control panel accessories
Highlights & Details
- Number of connections: 6
- Wall mounting
- Material: Aluminium, steel, zinc
- Modular
- White

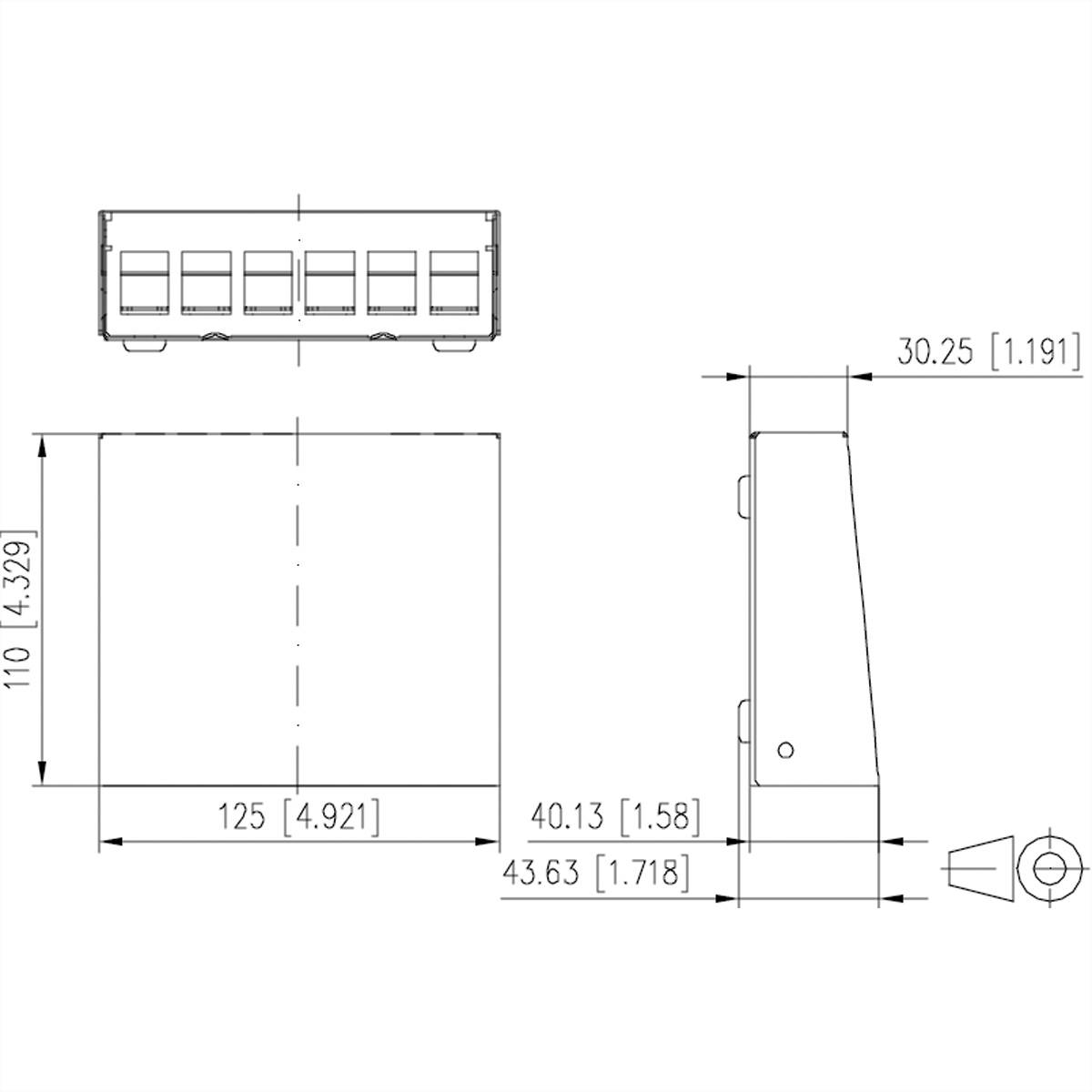

Technical specifications
Unequipped
- Width
125 mm
- Height
43.6 mm
- Depth
110 mm
- Factory colour
White
- Cable length
0 mm
- Version
Connection cable
- Material
Aluminium
Steel
Zinc
- Type
Other installation technique
- UKCA
yes
- Operating temperature (T-T)
-40 - 70 °C
- Ports quantity
6
- Quantity per pack
1 Stück(e)
- Modular
yes
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
361 g
Documents & Downloads
Datasheet
Datasheet 3799399 Metz Connect Sonstige Installationstechnik Unequipped White
User & Safety Instructions
User & Safety Instructions 3799399 Metz Connect Sonstige Installationstechnik Unequipped White
Description

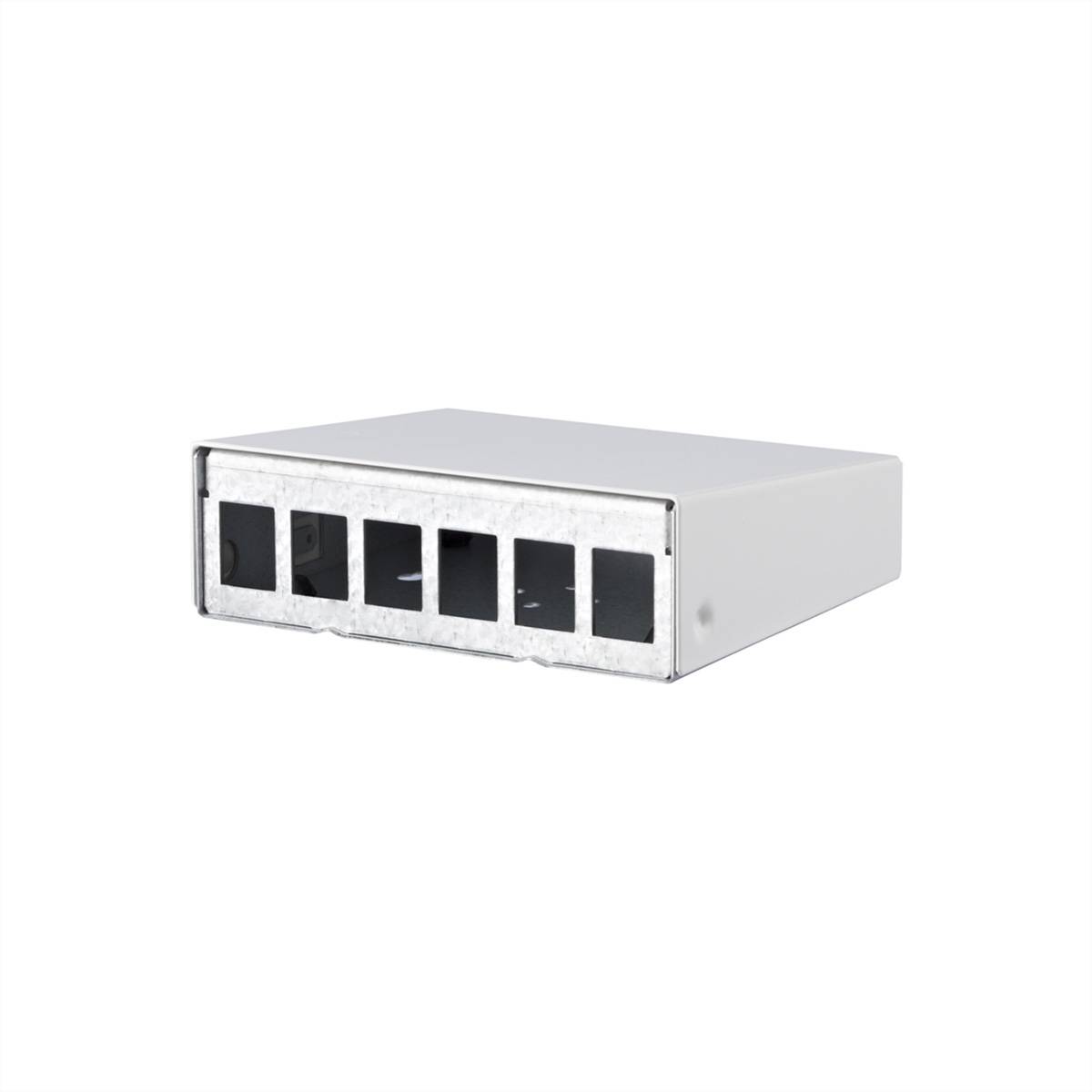

Keystone housing surface-mounted unfitted for single modules in keystone design stable steel-plate casing. Powder-coated housing top in RAL9010. Easily attach and remove the upper part of the casing through screw-free mounting Potential balancing possible by spade connector Additional cable strain-relief at the lower part of the casing with cable tie The casing is suitable for direct wall mounting, as desktop and with mounting rail adapters for rail mounting. Optional FO expansion kit for module and Keystone AP housing 130861-MSK-E
This text is machine translated.
Features
- Keystone housing surface-mounted unfitted for single modules in keystone design - stable steel sheet housing
- Powder-coated upper part of the casing in RAL9010 - easy attachment and removal of the upper part of the casing through screw-free attachment
- Potential balancing possible by spade connector
- Additional cable strain-relief at the lower part of the casing with cable tie
- The casing is suitable for direct wall mounting, as desktop and with mounting rail adapters for rail mounting
- The bottom of the 3-port and 4-port versions can be removed. The additional attachment options are available here via a 60 mm hole track
- Available as an option and can be used in all housings except 2 ports: FO expansion set for module and Keystone AP-housing 130861-MSK-E
- Available as an option for housing 2x12 port: Strain relief for patch cable 130861-24ZE-E.
- Variants: 2, 3, 4, 6, 8. 12, 16 and 2x12 ports
Scope of delivery
- Metz Connect Keystone AP-housing 6 port pure white RAL9010
