Metz Connect Zubehör Telefone Metz Connect Zubehör Telefone N/A 130863-02-E Adapter Pins: 8 No. of pins (RJ) 8 Metal 1 p
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Core connector
Connector type
Adapter
No. of pins
8
Specification
CAT 7a
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
14-day return policy included

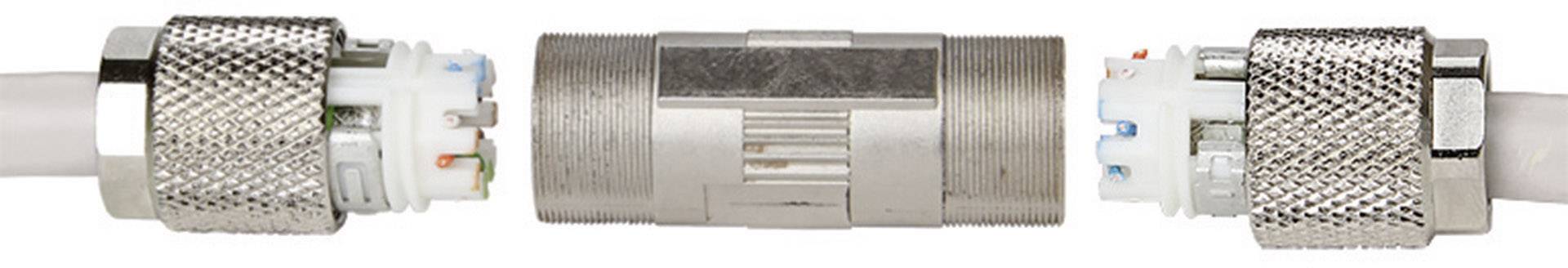

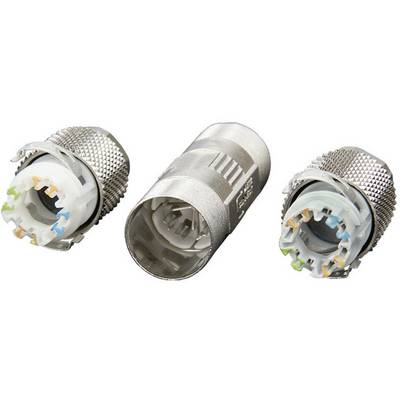

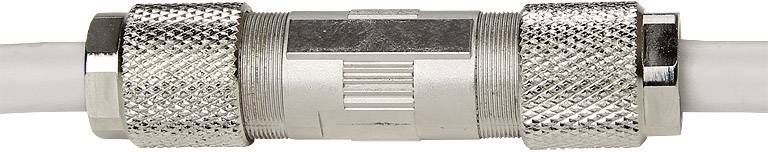

Metz Connect Zubehör Telefone N/A 130863-02-E Adapter Pins: 8 No. of pins (RJ) 8 Metal 1 pc(s)
Highlights & Details
- 8-wire field assembly cable connector
- Cu-Datenkabel class FA for up to CAT 7a
- Industrial capability refined zinc die-cast housing
Technical specifications
- Packaging type
Piece
- Type
Zubehör Telefone
- Product type
Core connector
- Connector type
Adapter
- No. of pins
8
CAT 7a
- Connector standard
Single wire connector
- AWG max.
22
- AWG (min.)
24
- Connection
Cut & Clip
- No. of ports
1 x
- Weight
0.0430 kg
- Factory colour
Metal
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Width
16.8000 mm
- Height
16.8000 mm
- Length
64 mm
- Features
+ strain relief
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Cross section (flexible) (max.)
0.0050 mm²
- Cross section (inflexible) (max.)
0.0032 mm²
- Cross section (flexible) (min.)
0.0032 mm²
- Cross section (inflexible) (min.)
0.0020 mm²
- Standards
In connection with Cat 7 A Cu-Kabeln is the class FA according to ISO/IEC 11801 Ed.2.2: 2011-06 up to 1000 MHz.
- Material (details)
Zinc diecasting
- Pins
8
- Cable diameter (details)
5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 994973 Metz Connect Zubehör Telefone Metz Connect Zubehör Telefone N/A 130863-02-E Adapter Pins: 8 No. of pins (RJ) 8 Metal 1 p
User & Safety Instructions
User & Safety Instructions 994973 Metz Connect Zubehör Telefone Metz Connect Zubehör Telefone N/A 130863-02-E Adapter Pins: 8 No. of pins (RJ) 8 Metal 1 p
Description
The cable connector is designed for connection, extension, repair or umverlegung of copper data cables up to cat. 7A and makes clunky connection boxes are unnecessary. It allows the extended cable without any problem in cable conduits to run. In addition, even the cable out of the already extended lines, since the connector two-sided with strain relief.
This text is machine translated.
This text is machine translated.
