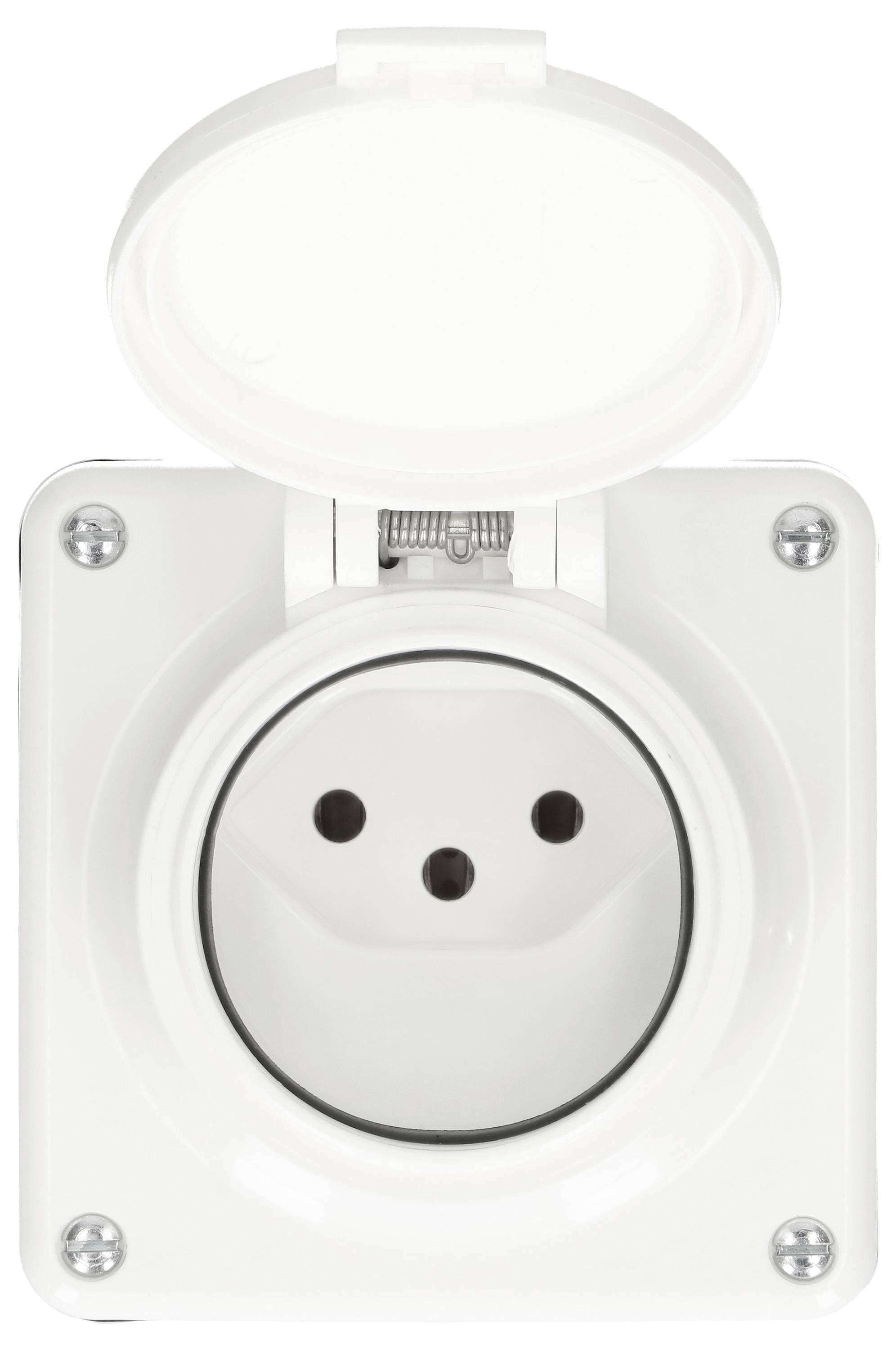

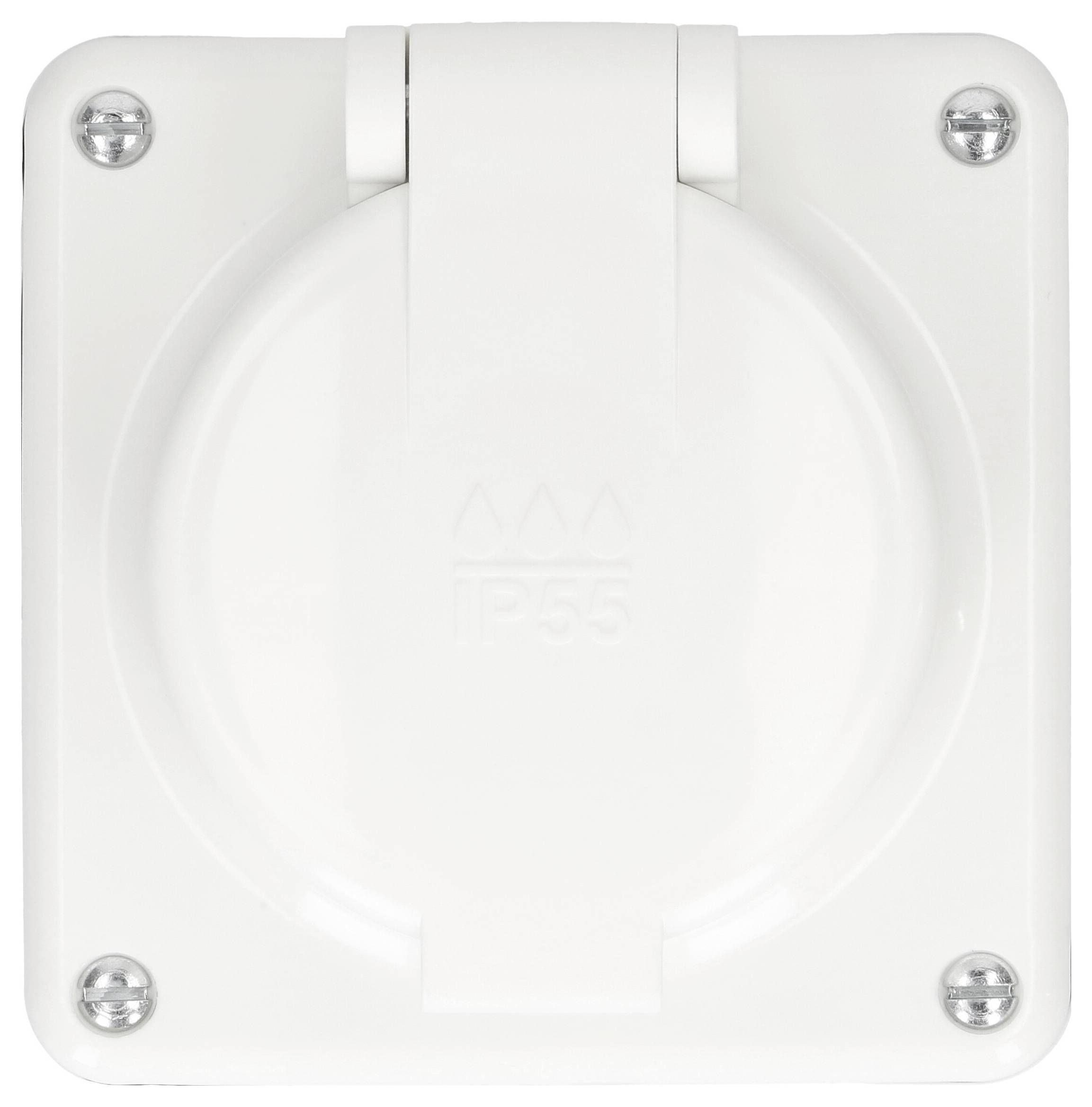

MICA 168262 Socket IP55 White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Socket 1x type 13 size 1x1 AP mica wet IP55 white
- Water-resistant sockets for outdoor use
- Swiss quality
- Timeless design
Technical specifications
- Device function: Type 13
- Product type
Socket
- Outlets
1
- Nominal voltage
230 V
- Nominal current
10 A
- Mounting type
Surface-mount
- Factory colour
White
IP55
- Dim
(L x W x H) 75 x 75 x 80 mm
- Length
75 mm
- Width
75 mm
- Height
80 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3396792 MICA 168262 Socket IP55 White
User & Safety Instructions
User & Safety Instructions 3396792 MICA 168262 Socket IP55 White
Description
Socket 1x type 13 / size 1x1 / design: Surface-mounted / current: 10A / voltage: 250V / conductor connection: L+N+PE / additional function: With screw terminals, hinged cover / mounting height: 80mm / color: White / IP protection class: IP55 / Mica wet
The wet program of electro-mica AG enables the use of sockets in the outdoor area. Mica Wet offers Swiss quality combined with a timeless design.
This text is machine translated.
The wet program of electro-mica AG enables the use of sockets in the outdoor area. Mica Wet offers Swiss quality combined with a timeless design.
This text is machine translated.
Features
- With screw terminals
- Protective cover
