Micro Star International Computer B550-A PRO Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset A
EAN:
Part number:
Item no:

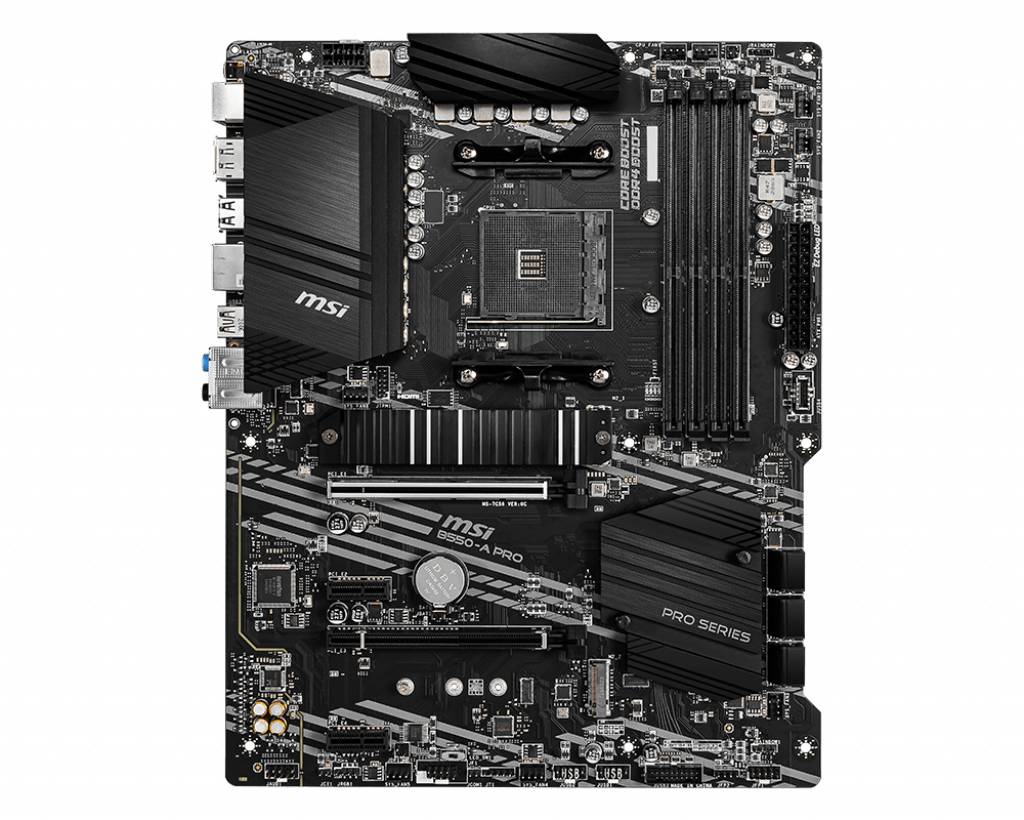

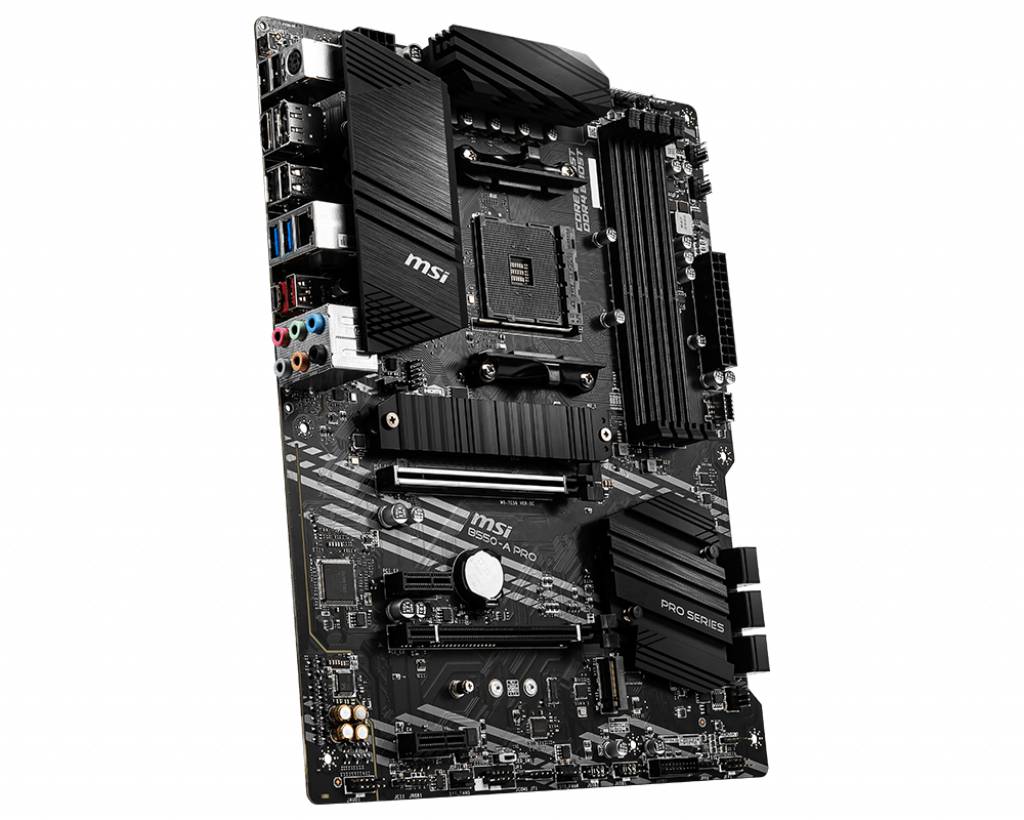

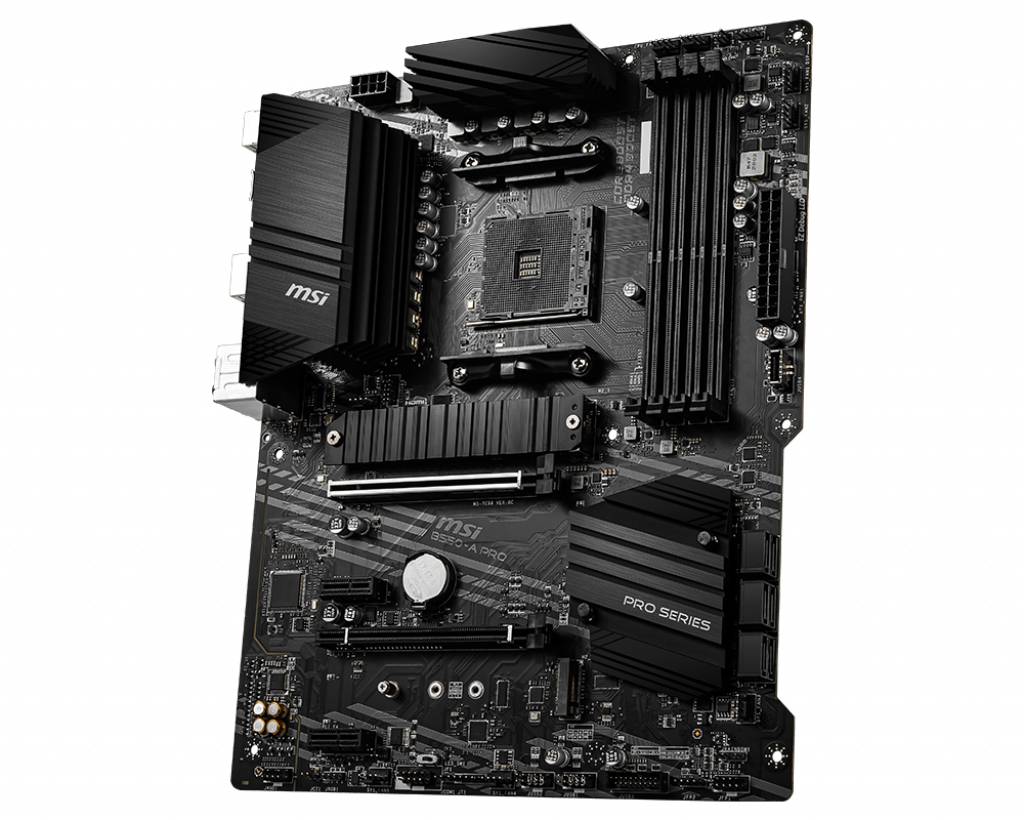

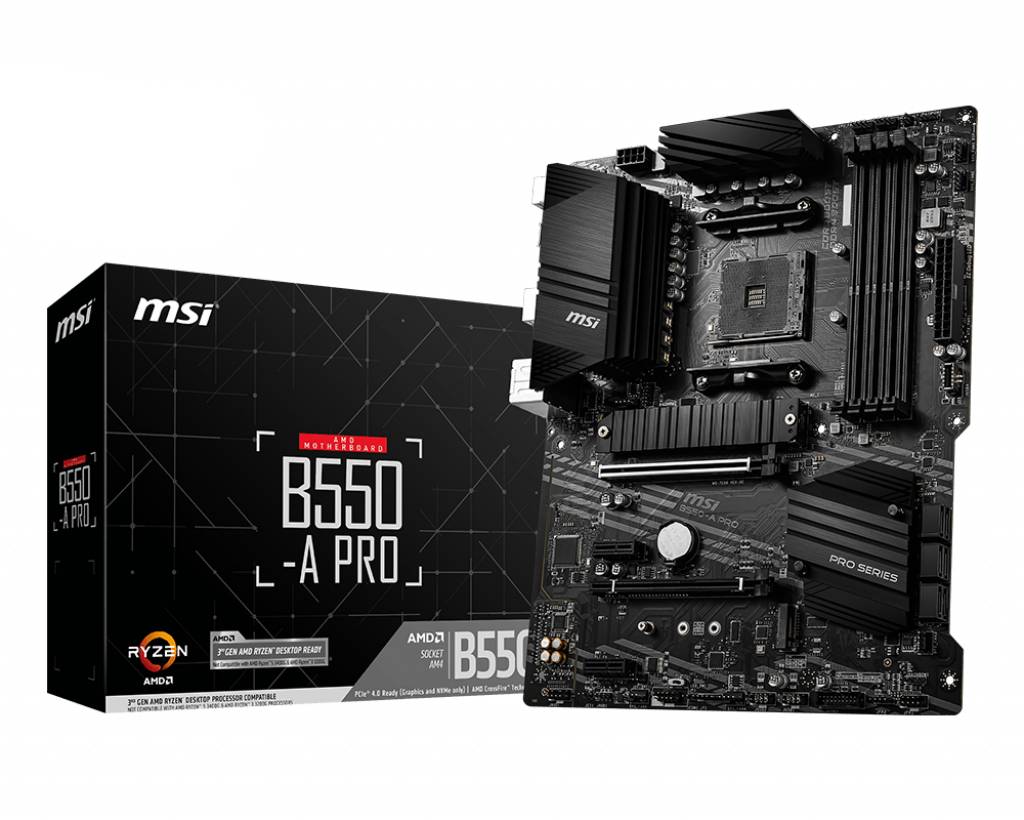

Micro Star International Computer B550-A PRO Motherboard
Technical specifications
- Product type
Motherboard
- Chipset
AMD® B550
AMD AM4
- Form factor
ATX
- Processor/type
AMD Ryzen™ (unterstützt 1., 2., 3., 4., 5. Generation)
- RAM type
DDR4 SDRAM

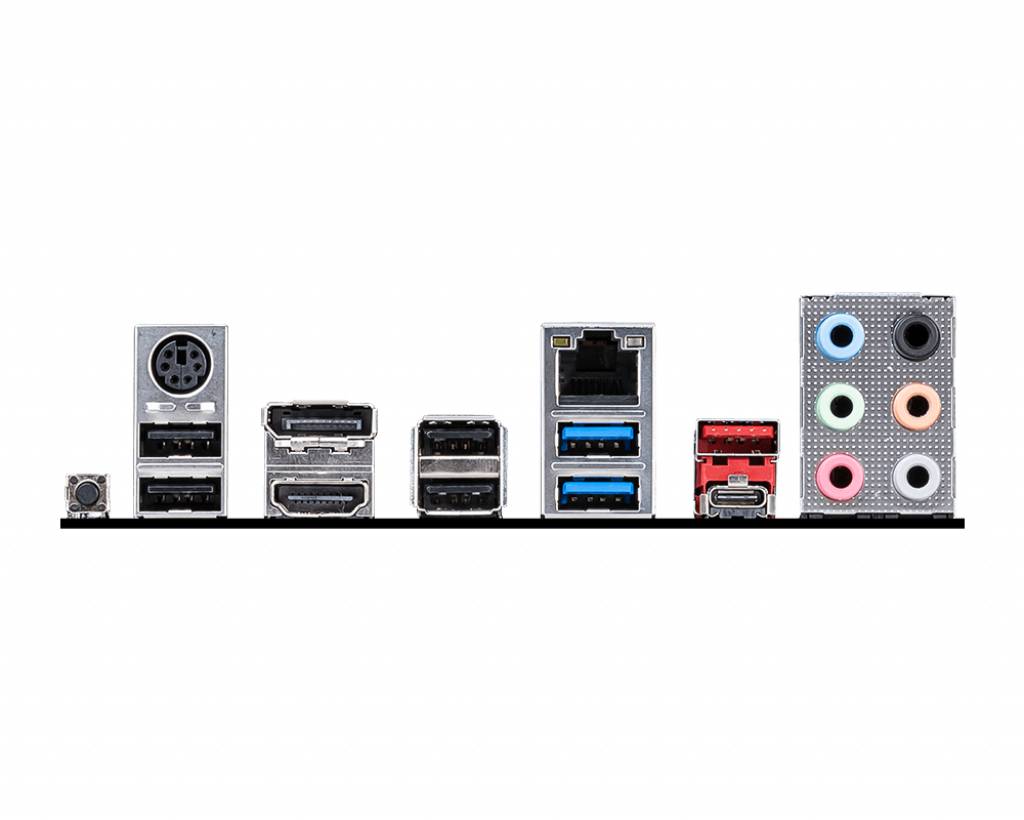

- Interfaces
M.2
- No. of DDR4 slots
4 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
6 x
- Onboard audio
7.1
- No. of PS/2 ports
1 x
- Factory colour
Multicolour
- Depth
244 mm
- Height
65 mm
- Width
305 mm
- Design height
65 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- Weight
1 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2841775 Micro Star International Computer B550-A PRO Motherboard PC base AMD AM4 Form factor (details) ATX Motherboard chipset A
Description
Features
- Processor manufacturer: AMDSocket AM4Compatible processors: 3rd generation AMD Ryzen™ 33rd generation AMD Ryzen 53rd generation AMD Ryzen™ 73rd Supported memory: DDR4 SDRAMRAM maximum: 128 GBRAM type DIMM. Supported drive interfaces: SATA III.Supported drives: HDD & SSDRAID levels 0110. Parallel processing technology: 2-way CrossFireXMaximum graphics card memory of 16000 MBMaximum resolution 4096 x 2160 pixel. Ethernet interfaces, type Gigabit EthernetRealtek 8111H LAN controller
