Microphone (instruments) JTS CM-502 Transfer type (details):Corded Steel enclosure
EAN:
Part number:
Item no:
Technical specifications
- System: Electret/supercardioid
- Frequency range 100-18000 Hz
- Impedance 220 ohms +/-30 %
- Sensitivity 40 mV/Pa/1 kHz
- Maximum acoustic pressure 125 dB
- Power supply: 48 VDC Phantom
- Connection, microphone: -
- Connection, cable: XLR, bal. Cable length 7.5 m.
- Housing: metal
- Weight: 190 g
- Product type
Microphone (instruments)
- Transfer type
Corded
- Frequency response
100-18000 Hz
- Characteristics
Supercardioid
- Impedance
220 Ω ±30%
- Features
Steel enclosure
- Cable length
7,5 m
- Connector
XLR, balanced
- Weight
190 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331440 Microphone (instruments) JTS CM-502 Transfer type (details):Corded Steel enclosure
Description
Features
- Electret-handling overhead microphone
- THE CM-502 was designed for suspended applications and can thus be viewed as a kind of special overhead microphone
- This microphone is particularly suitable in areas where direct microphone is not desired for optical or functional reasons
- It can be used, for example, for choir acceptances or on theater and school platforms

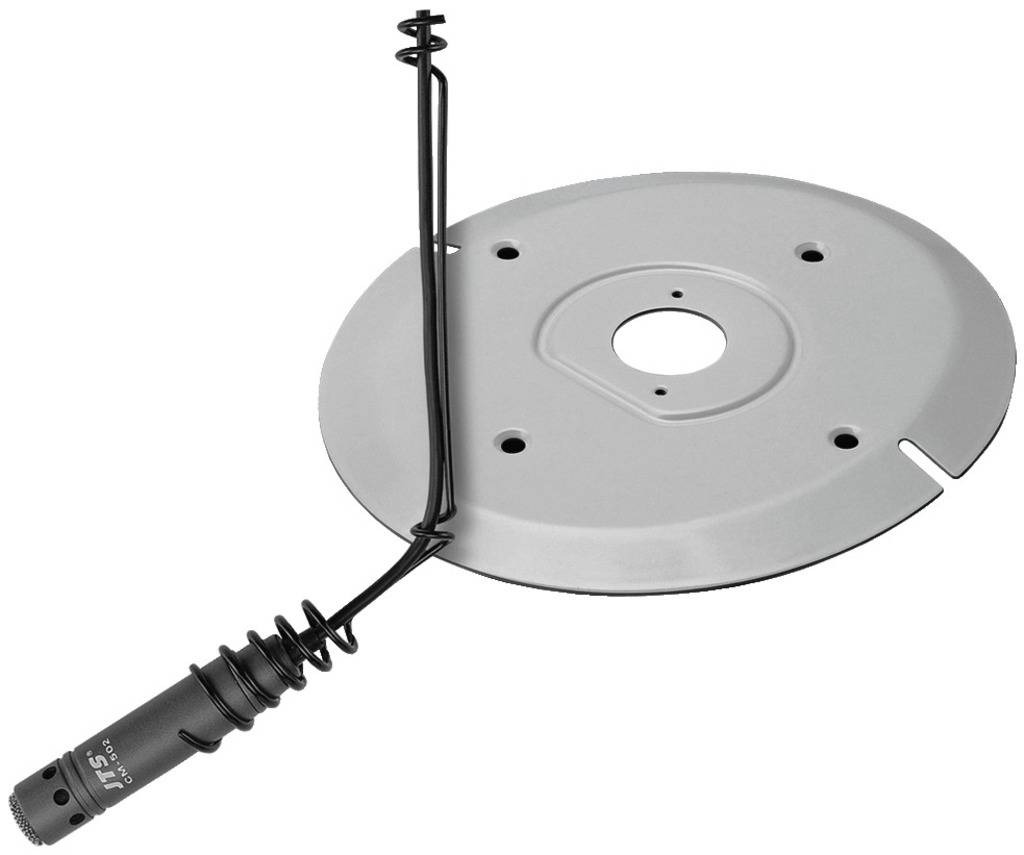

- The installation of the ceiling mounting plate and the perfect alignment to the sound source using the spring holder is very simple and quick
- Including ceiling mounting plate and spring holder
- This text is machine translated.
Scope of delivery
- Ceiling mounting plate with spring holder
- Integrated phantom adapter
- Wind protection
