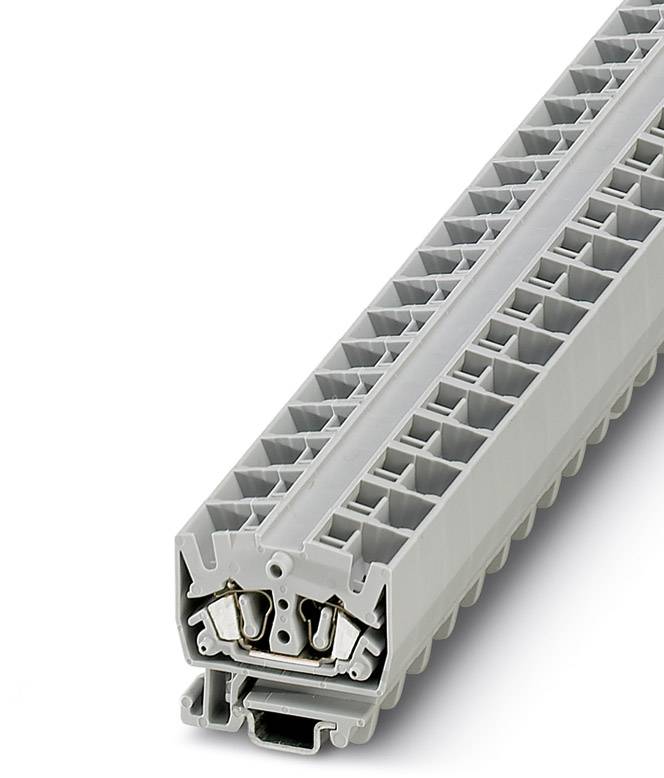

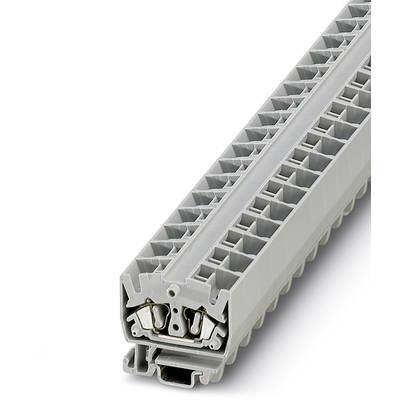

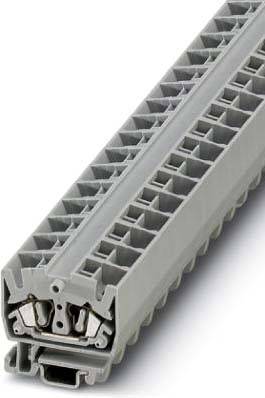

Mini feed-through terminal block MSDB 2,5 3244216 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Total (€ 1.45 / piece)
€ 72.26
plus VAT.
Highlights & Details
Mini feed-through terminal block MSDB 2,5
- MSDB 2,5
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10.4 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3244216
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MSDB 2,5
- Dim
(L x W x H) 32 x 10.4 x 22 mm
- Width
10.4 mm
- Height
22 mm
- Length
32 mm
- Flammability rating
V0
Documents & Downloads
Datasheet
Datasheet 587216 Mini feed-through terminal block MSDB 2,5 3244216 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 587216 Mini feed-through terminal block MSDB 2,5 3244216 Phoenix Contact
Description
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 10.4 mm, Height: 22 mm, Color: gray, Mounting type: NS 15
