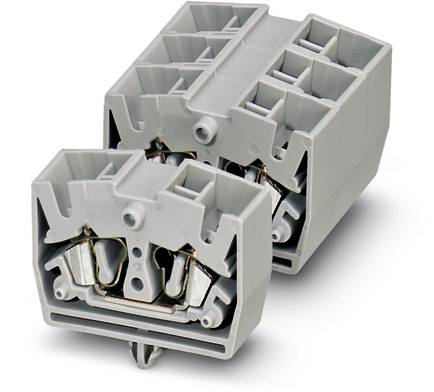

Image similar
Image similar
Mini feed-through terminal block MSDB 2,5-RZ YE 3244371 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Total (€ 1.51 / piece)
€ 75.62
plus VAT.
14 days return policy included
Highlights & Details
Mini feed-through terminal block MSDB 2,5-RZ YE
- MSDB 2,5-RZ YE
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10.4 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3244371
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MSDB 2,5-RZ YE
- Dim
(L x W x H) 32 x 10.4 x 22 mm
- Width
10.4 mm
- Height
22 mm
- Length
32 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 586280 Mini feed-through terminal block MSDB 2,5-RZ YE 3244371 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586280 Mini feed-through terminal block MSDB 2,5-RZ YE 3244371 Phoenix Contact
Description
Mini feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 10.4 mm, Height: 22 mm, Color: yellow, Mounting type: On mounting plate
Hints
Special order, no right of withdrawal.
