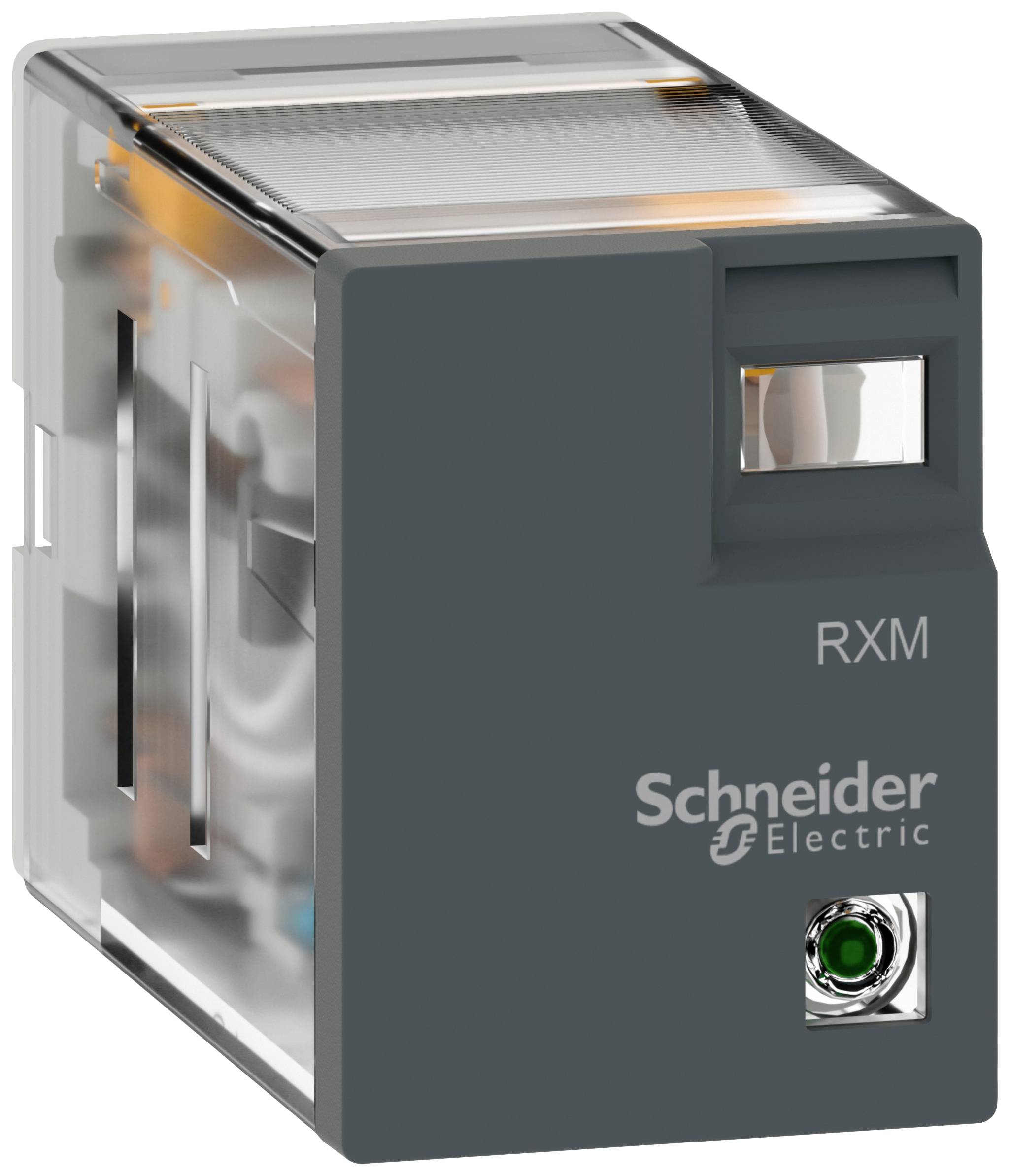

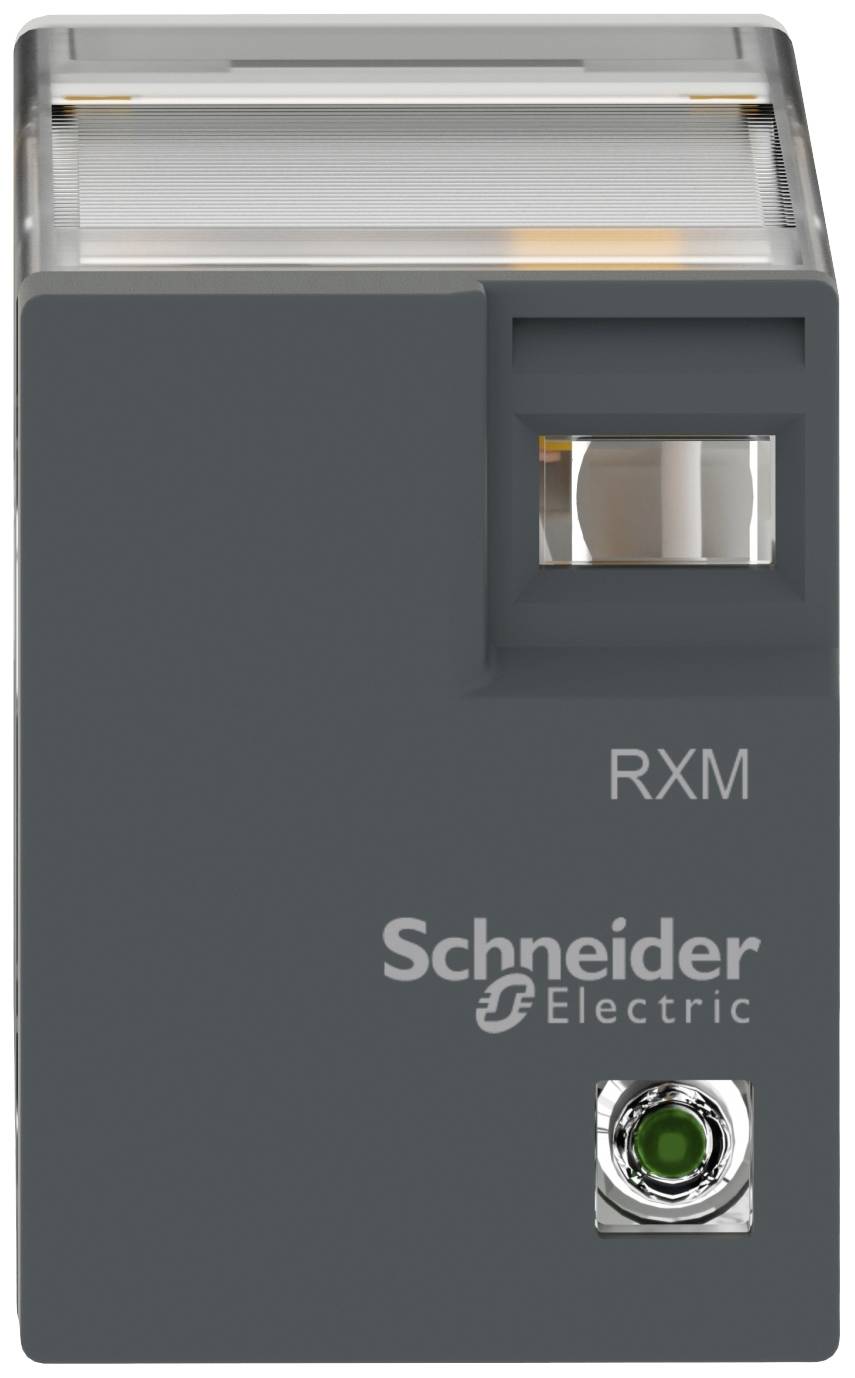

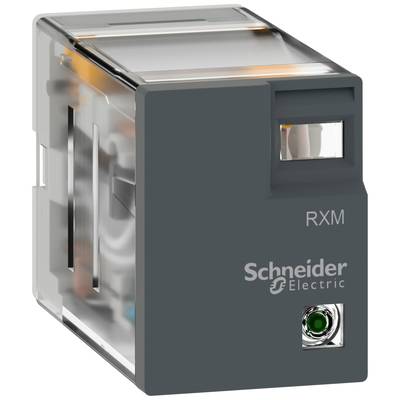

Mini relay Push-fit Schneider Electric RXM4LB1P7 4 change-overs 230 V AC Piece 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Mini relay
Operating voltage
230 V AC
Contact type
4 change-overs
Mounting type
Push-fit
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
5
6% = € 0.48
€ 7.49
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Mini relay
- Type
RXM4LB1P7
- Operating voltage
230 V AC
- Permanent current (max.)
3 A
- Contact type
4 change-overs
- Mounting type
Push-fit

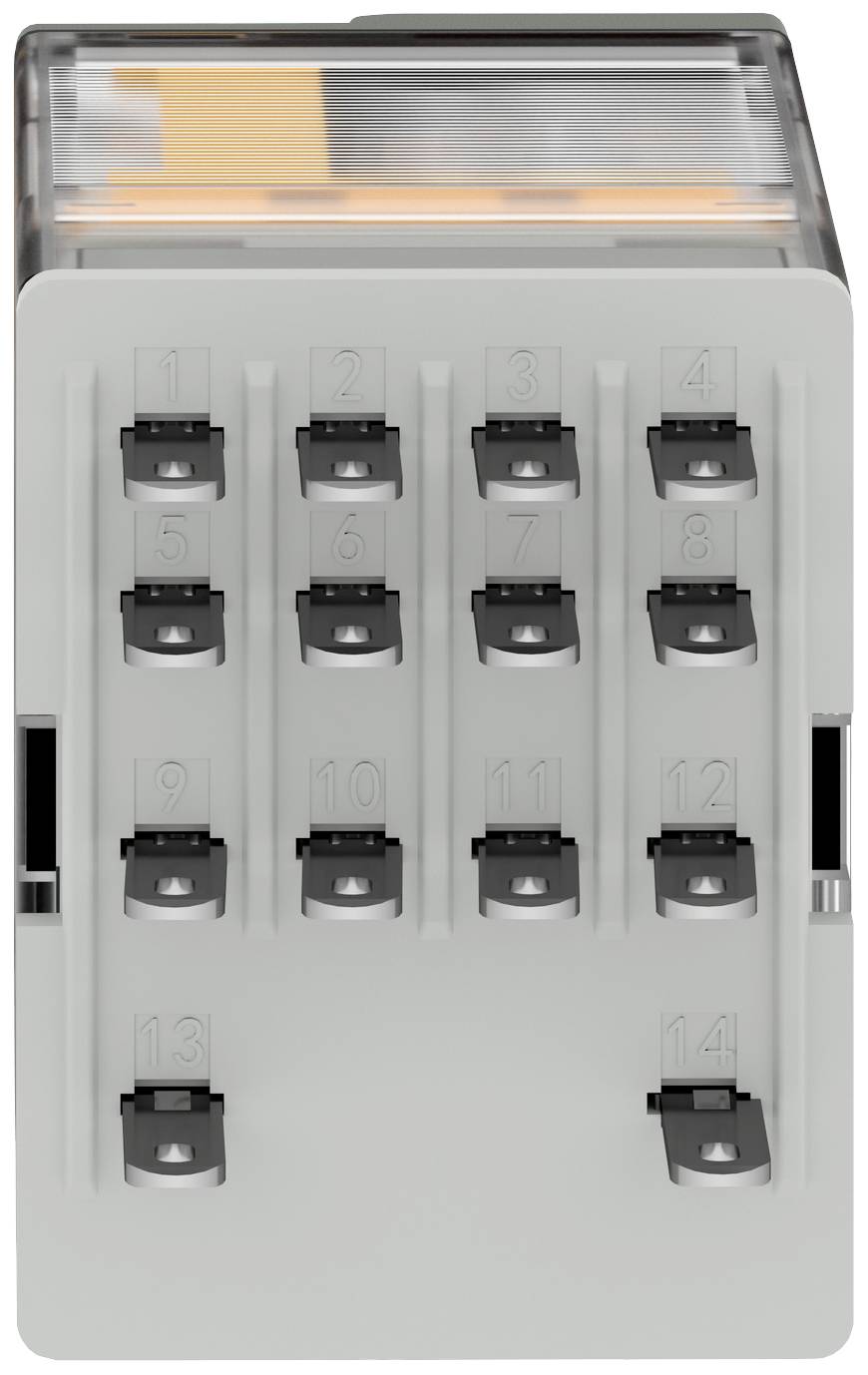

- Connection
Jack connector
- Content
10 pc(s)
3 A
21

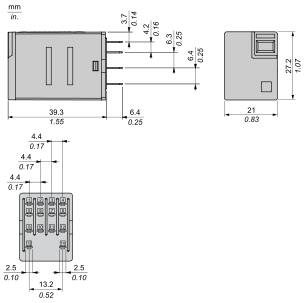

27 mm
46 mm
TRUE
Polarity free
Mono stable
TRUE
Other
FALSE
Other
230-230.0 V
230-230.0 V
Other
IP40
FALSE
Other
AC
0
0
4
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3305106 Mini relay Push-fit Schneider Electric RXM4LB1P7 4 change-overs 230 V AC Piece 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3305106 Mini relay Push-fit Schneider Electric RXM4LB1P7 4 change-overs 230 V AC Piece 10 pc(s)
Description

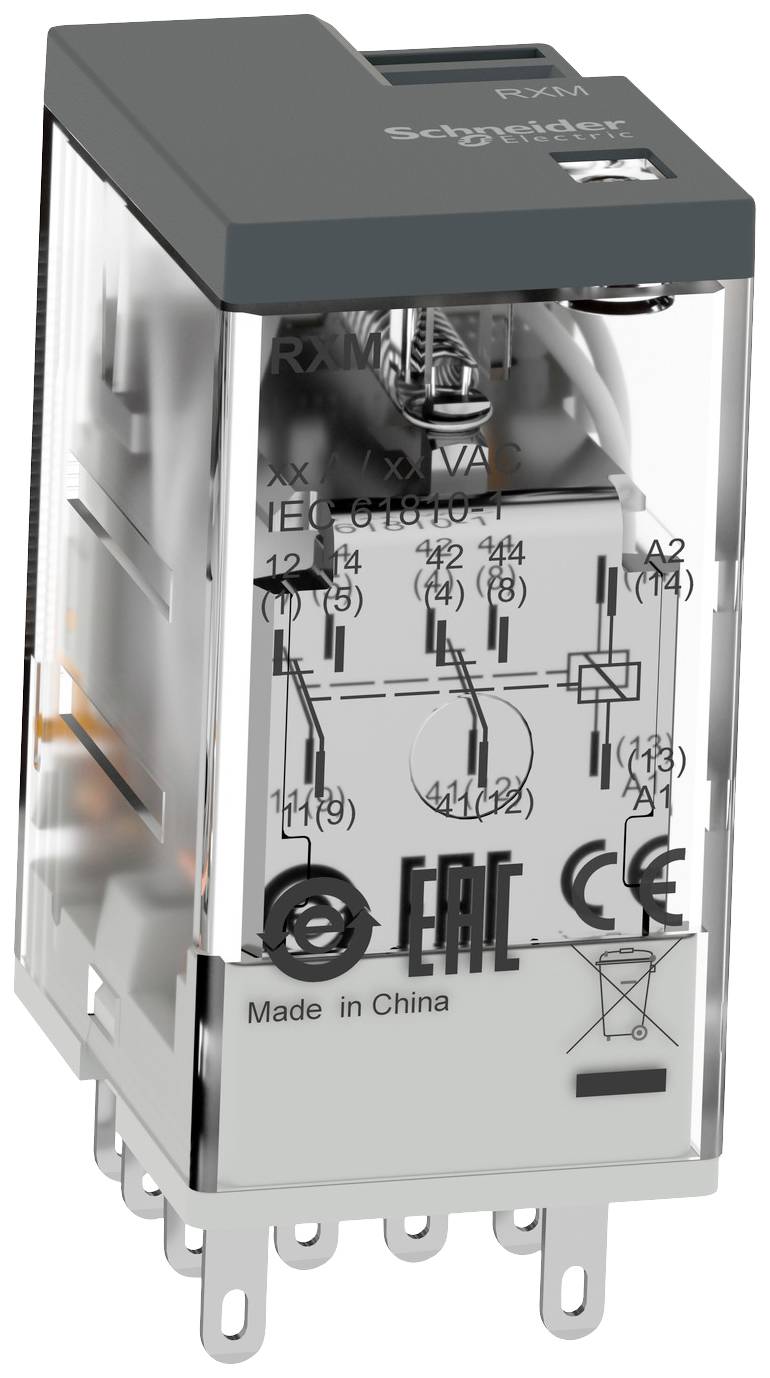

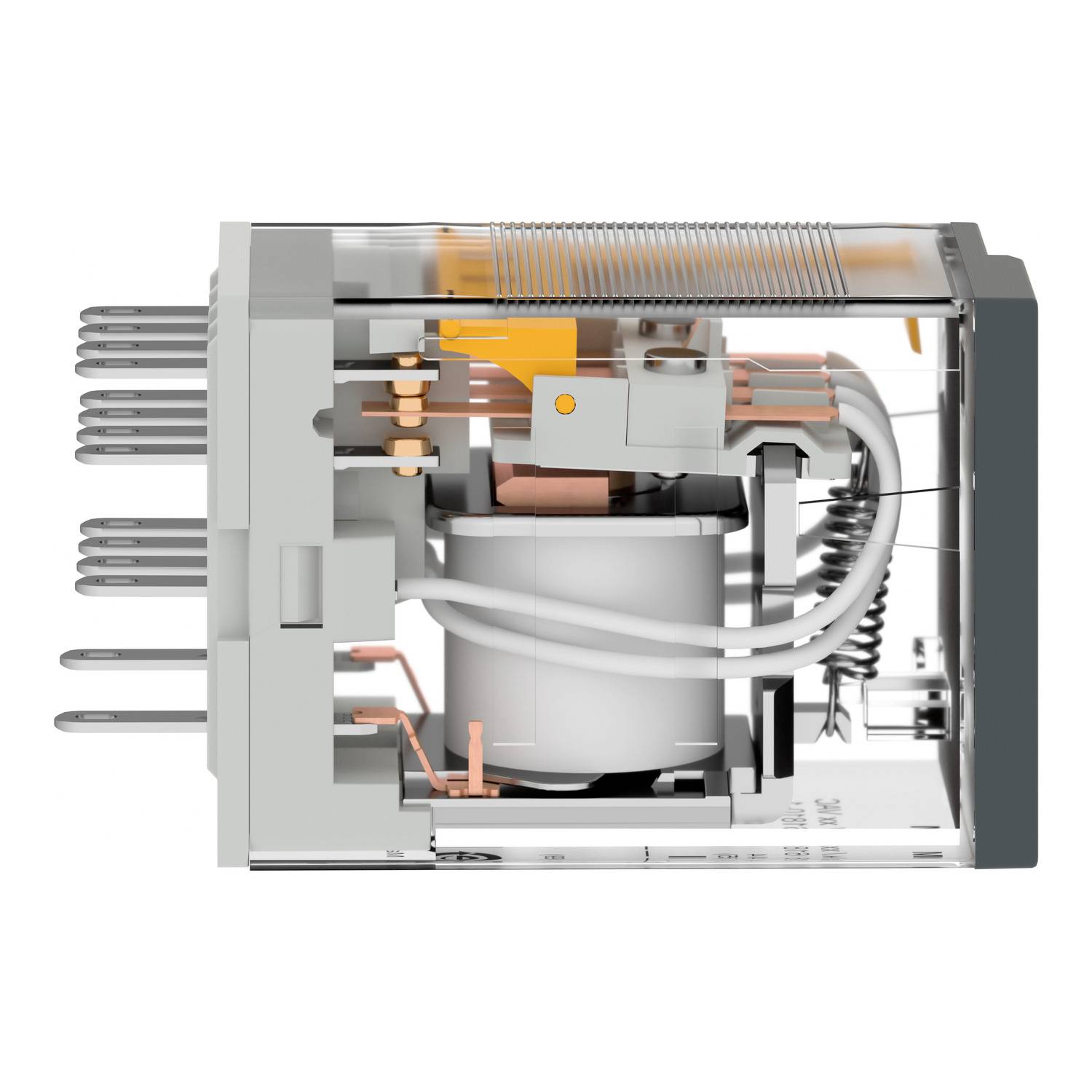

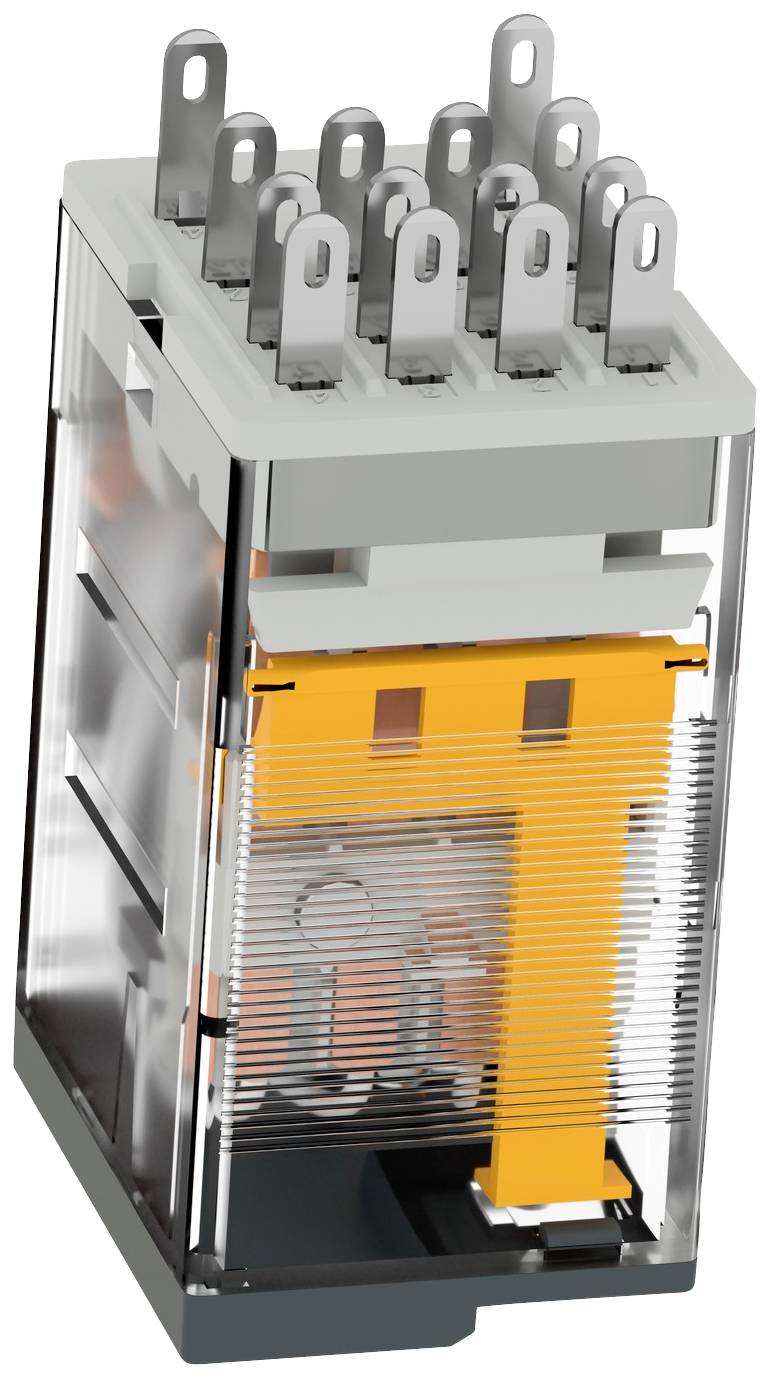

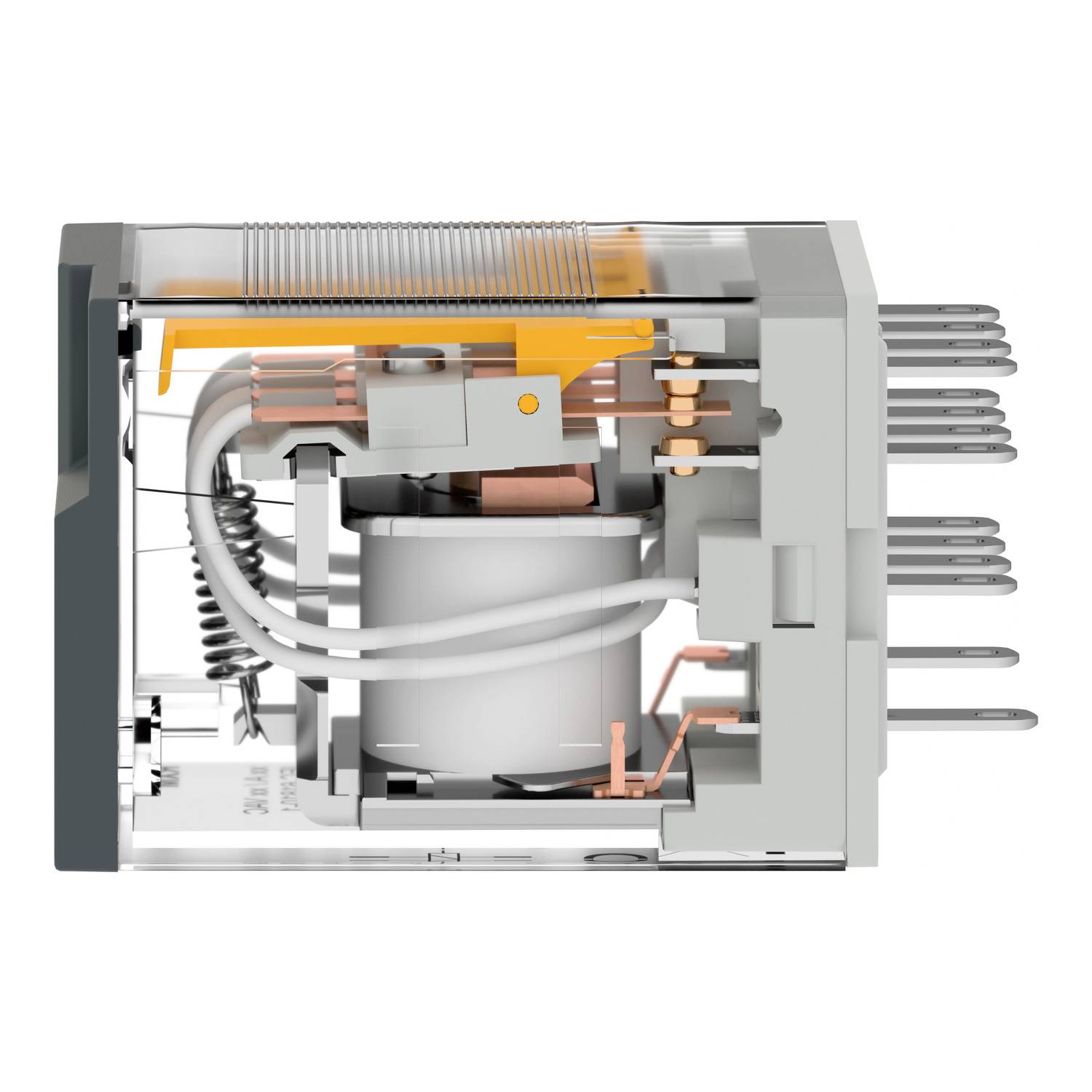

The Easy RXMLB miniature relays are part of the electromechanical relays of the Harmony series and are especially suitable for simple automation systems. This plug relay has 4 changeover contacts, a rated current of 3A and requires a 230V AC input voltage. The mounting is done thereby with an additional RXZE base, which has a mixed contact arrangement. For additional protection against vibrations, a metal clamp RXZ can be attached to the base. It also has a transparent cover to visually check the status of the contacts. The product complies with international standards and certifications such as IEC and CE. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
