Mini relay Push-fit Schneider Electric RXM4LB2FD 4 change-overs 110 V DC 10 pc(s)
EAN:
Part number:
Item no:
Product type
Mini relay
Operating voltage
110 V DC
Contact type
4 change-overs
Mounting type
Push-fit
Type
RXM4LB2FD
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
5
6% = € 0.48
€ 7.49
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Technical specifications
- Product type
Mini relay
- Type
RXM4LB2FD
- Operating voltage
110 V DC
- Permanent current (max.)
3 A
- Contact type
4 change-overs
- Features
+ LED
- Mounting type
Push-fit
- Content
10 pc(s)
FALSE
FALSE
Other

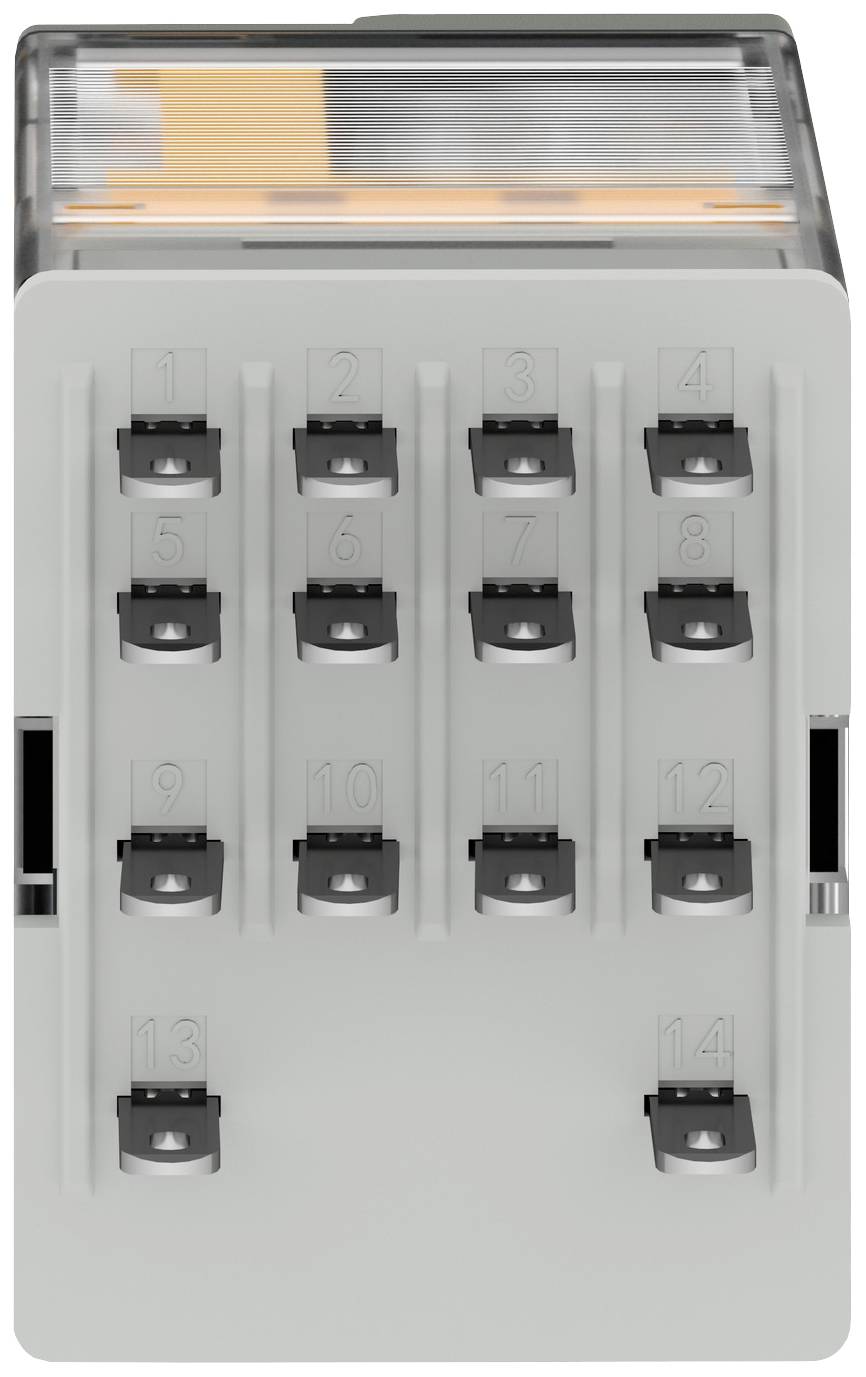

Plug-in connection
110-110.0 V
DC
TRUE
DC
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3305110 Mini relay Push-fit Schneider Electric RXM4LB2FD 4 change-overs 110 V DC 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3305110 Mini relay Push-fit Schneider Electric RXM4LB2FD 4 change-overs 110 V DC 10 pc(s)
Description

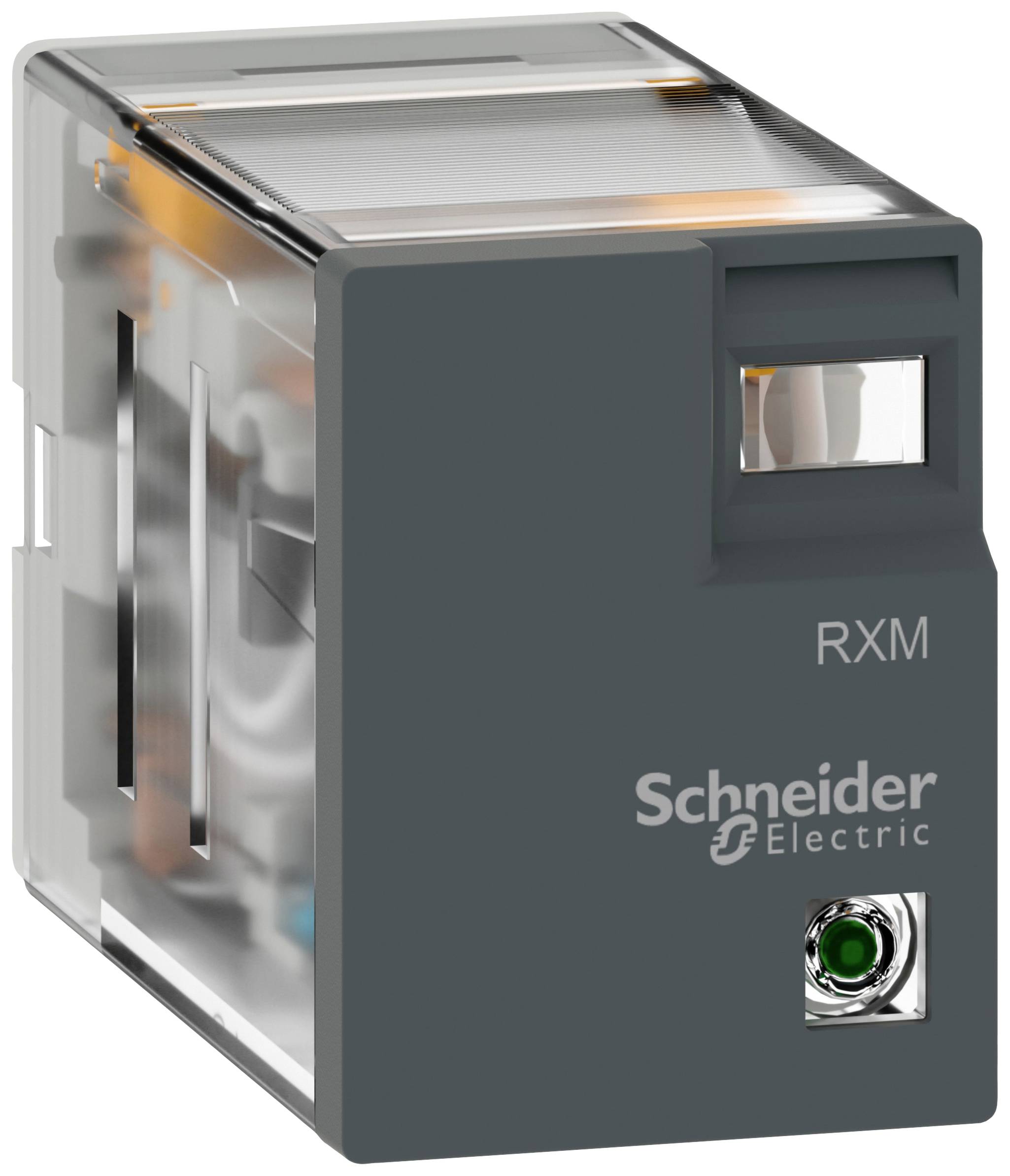

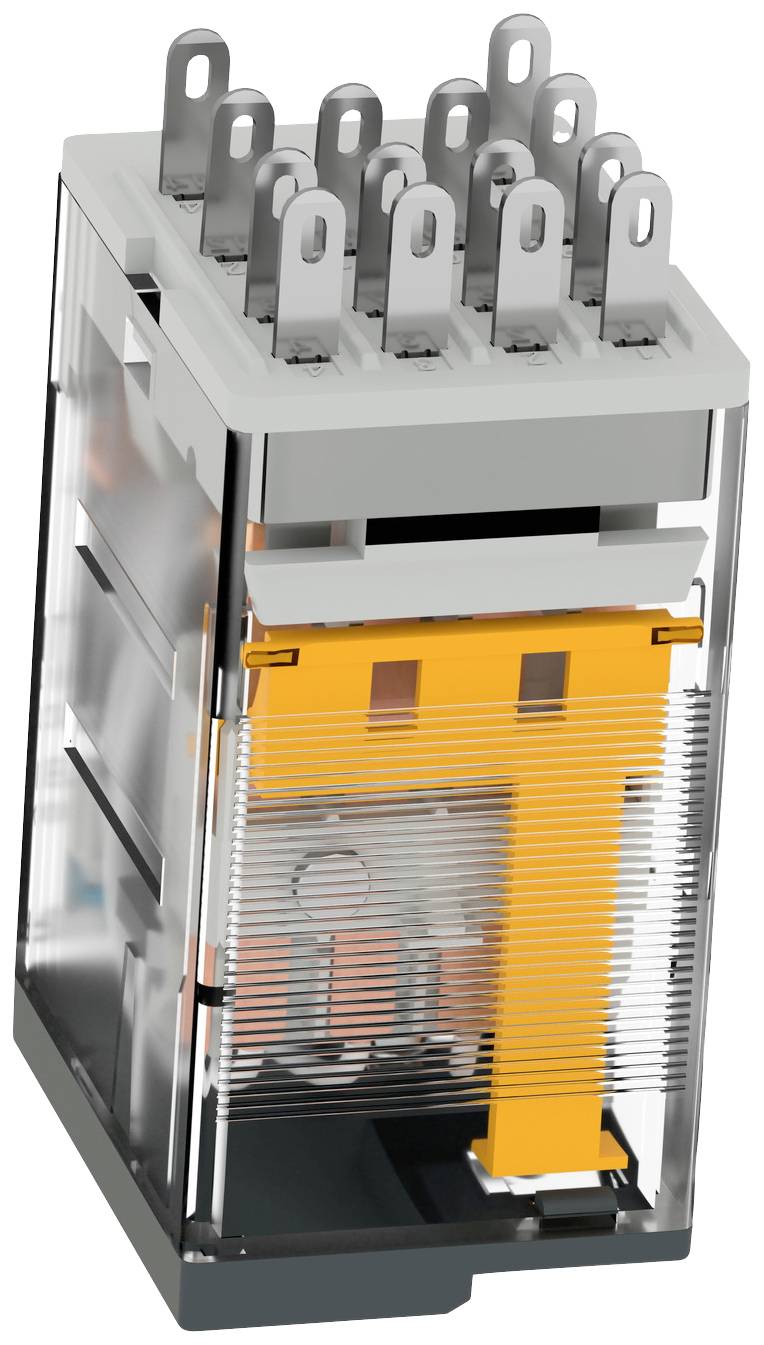

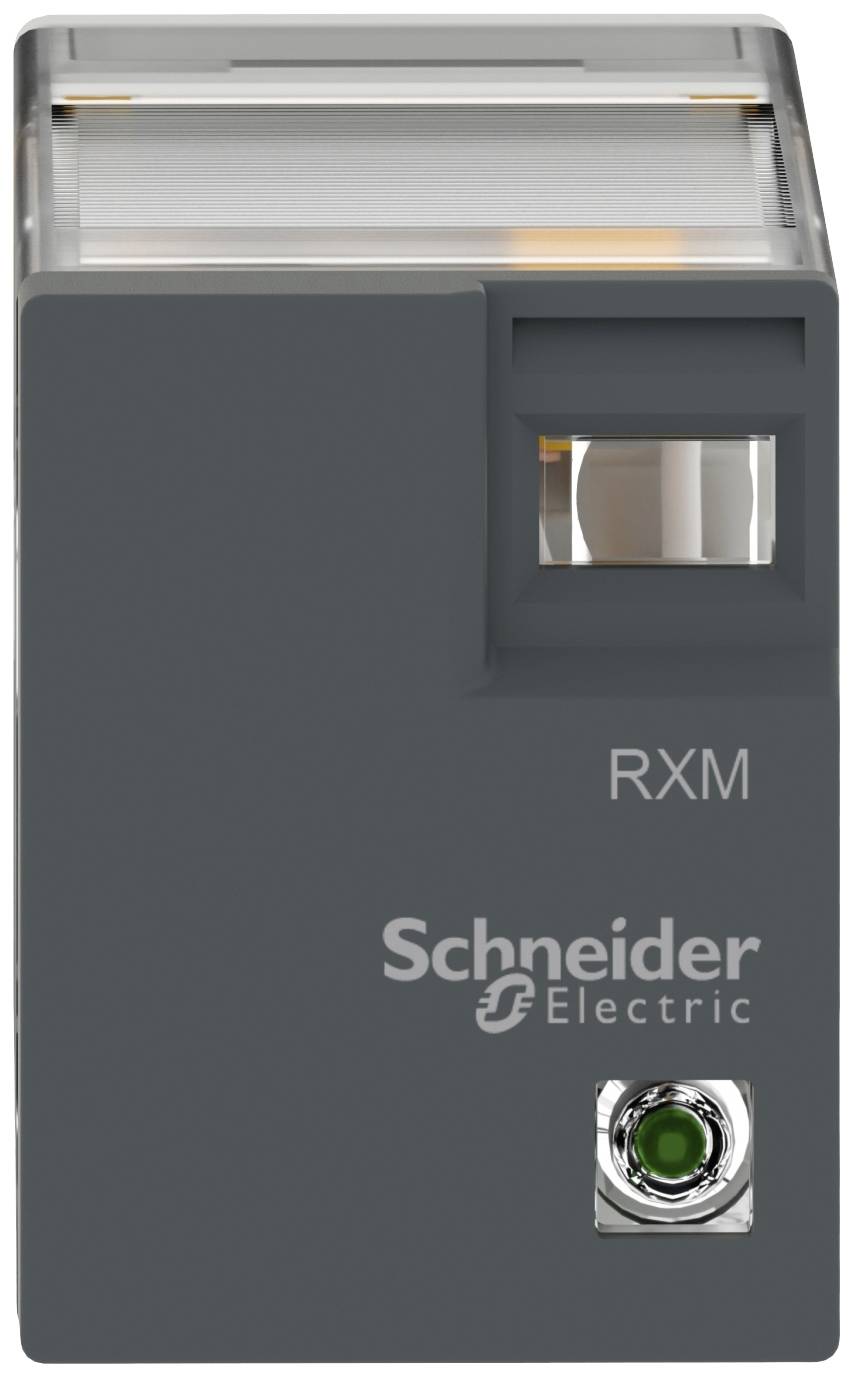

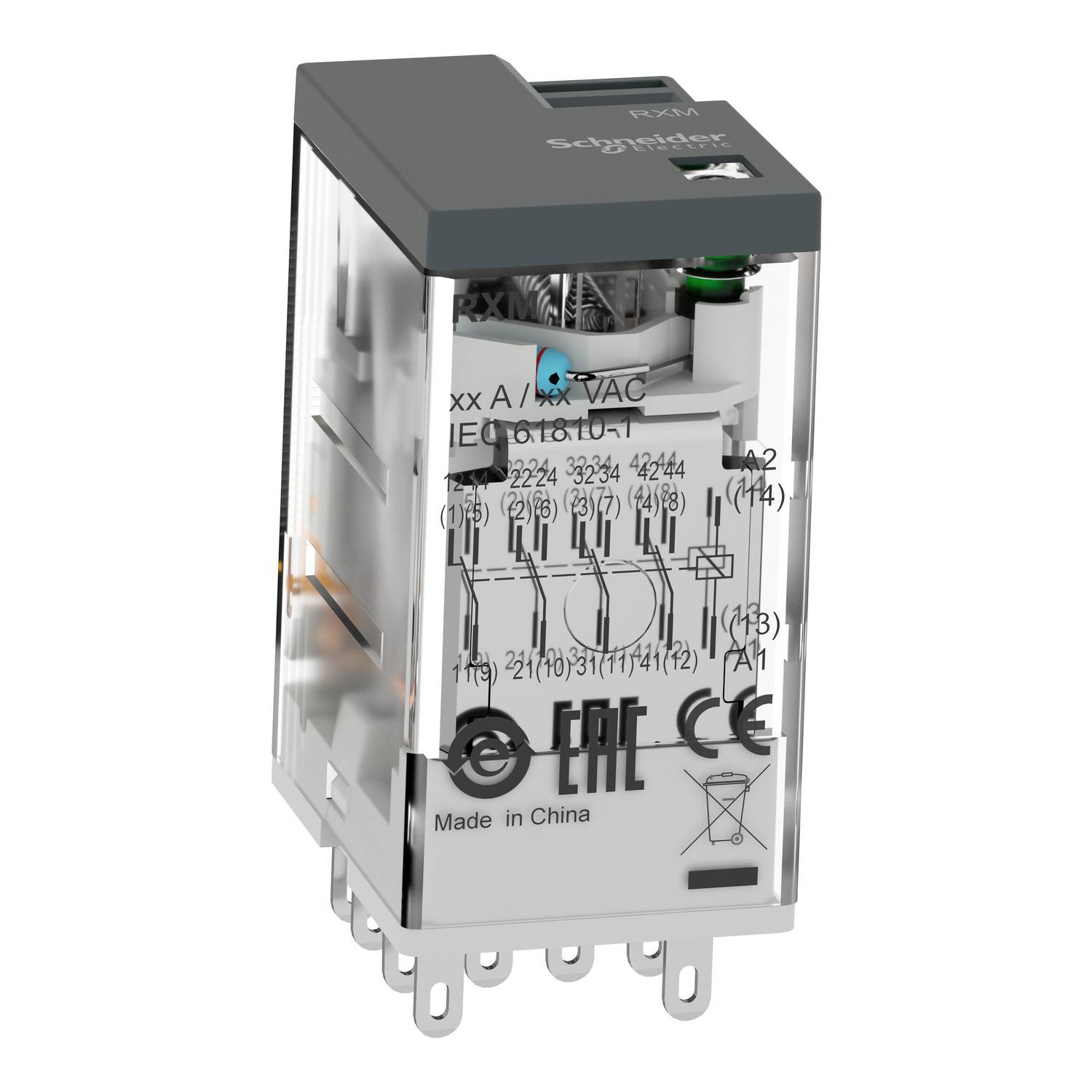

The Easy RXMLB miniature relays are part of the electromechanical relays of the Harmony series and are especially suitable for simple automation systems. This plug relay has 4 changeover contacts, a rated current of 3A and requires a 110V DC input voltage. The mounting is done thereby with an additional RXZE base, which has a mixed contact arrangement. For additional protection against vibrations, a metal clamp RXZ can be attached to the base. In addition, it has a transparent cover and an LED for visual inspection of the status of the contacts. The product complies with international standards and certifications such as IEC and CE. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
This text is machine translated.
