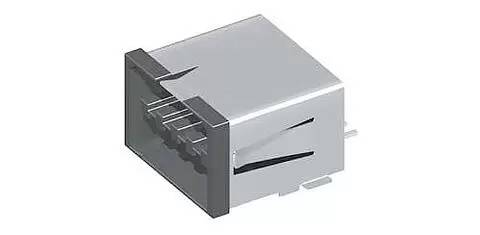

Mini-USB panel jack 397-6-S-XS0 MPE Garry Content: 1 pc(s)
Part number:
Item no:
Packaging type
Piece
Product type
USB connector
USB type
Mini B
Connector standard
Mini-B USB
Type
397-6-S-XS0
Datasheet (PDF)
Highlights & Details
Mini-USB panel jack
Our service for you

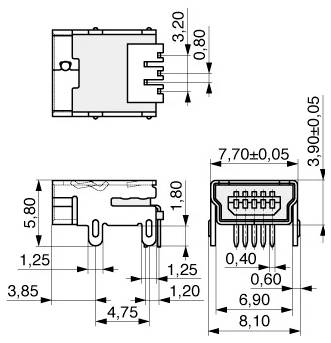

Technical specifications
- Height (incl. pins): 6.5 mm
- Soldibility 260 °C / 10 s
- Breakdown voltage 500 V RMS / min.
- Packaging type
Piece
- Type
397-6-S-XS0
- Product type
USB connector
- USB type
Mini B
- Connector standard
Mini-B USB
- Connection
Print
- Manufacturer part #
397-6-S-XS0
- Content
1 pc(s)
- Width
9.2 mm
- Length
7.7 mm
- RoHS-compliant
Yes
- Features
L-shaped
- Height
3.9 mm
- Nominal current
1 A
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735481 Mini-USB panel jack 397-6-S-XS0 MPE Garry Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735481 Mini-USB panel jack 397-6-S-XS0 MPE Garry Content: 1 pc(s)
Description
Mini USB panel jack for PCB mounting
90° angled
Pin version
This text is machine translated.
90° angled
Pin version
