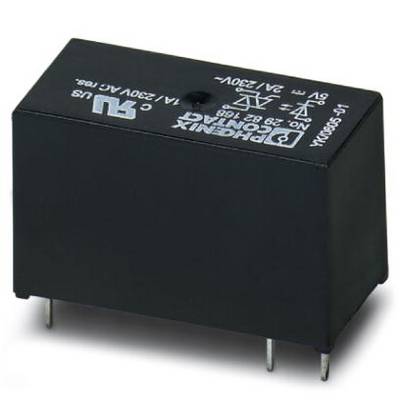

Miniature solid-state relay OPT-24DC/230AC/ 2 2982171 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
24 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
253 V AC
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 25.97 / piece)
€ 361.34
-28 %
€ 259.66
plus VAT.
14-day return policy included
Highlights & Details
Miniature solid-state relay OPT-24DC/230AC/ 2
- Industrial packaging, pack of 10
Technical specifications
- Packaging type
Piece
- Product type
SSR
- Type
OPT-24DC/230AC/ 2
- Connection
Jack connector
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
253 V AC
- Current load (max.)
2 A
- Output voltage (min.)
24 V AC
- Output voltage (max.)
253 V AC
- Max. output current
2 A
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
12.7 mm
- Height
29 mm
- Depth
15.7 mm
- Industrial packaging
Yes
- Permanent current (max.)
2 A
- Content
10 pc(s)
- Nominal control voltage
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 709180 Miniature solid-state relay OPT-24DC/230AC/ 2 2982171 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 709180 Miniature solid-state relay OPT-24DC/230AC/ 2 2982171 Phoenix Contact
Description
Plug-in miniature solid-state relay, power solid-state relay, input: 24 V DC, output: 24 - 253 V AC/2 A
