Buy Minix Android Mini PC X35i plus ARM Cortex RK3566 Cortex-A55 Quad-Core 1.8 GHz 2 GB RAM 32 GB eMMC ARM Mali-G52 Android

A black mini PC with an attached antenna and multiple USB ports on the side, suitable for compact computer applications.

Black adapter with a power button, 3 USB ports, a TF card slot, a lock symbol, and an OTG port.

Back of a media player with connections: headphones, HDMI, SPDIF, Ethernet, 12V DC.

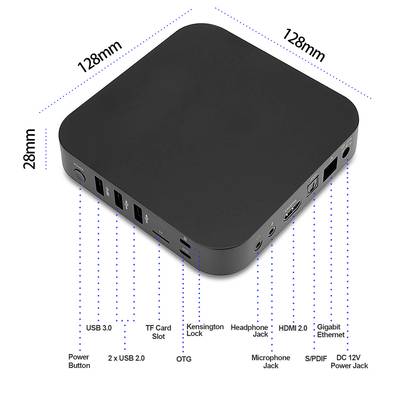

'Black square device measuring 128 mm x 128 mm x 28 mm. Includes connections: USB 3.0, 2 x USB 2.0, TF card slot, HDMI, Ethernet.'

1/4

200 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 142.85 / piece)

€

Report legal concerns

Highlights & Details

Minix X35i plus Android Mini PC

ARM Cortex RK3566 Cortex-A55 Quad-Core 4 core(s) / max. 1.8 GHz
RAM: 2 GB DDR4 RAM 2666 MHz
32 GB eMMC
ARM Mali-G52
Android™ 11

Technical specifications

Other features: Geroted firmware; fanless; EMI protective case; 6-layer PCB; electrostatic charge protection; debug/ICE/MUART connections; support for Wake On LAN, auto Power, RTC, watchdog; surge protection; Lower power consumption (below 5W); 12V power supply; industrial quality componentsPower adapter WB-24M12R (details): Input: 100-240V~, 50-60Hz, 0.7A Max. Output: 12.0V==2.0A 24.0W

Product type: Android Mini PC

Model: X35i plus

CPU series: ARM Cortex

CPU: ARM Cortex RK3566 Cortex-A55 Quad-Core

Processor/type: RK3566 Cortex-A55 Quad-Core

Processor cores (No.): 4 x

CPU speed: 1.8 GHz

CPU turbo clock speed (max.): 1.8 GHz

: 2 GB

RAM type: DDR4 RAM

Memory clock speed: 2666 MHz

No. of memory slots: 1

RAM / Max. upgrade: 4 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): ARM

Onboard graphics card (version): Mali-G52

Dedicated graphics card: No

HDD capacity (total): 32 GB

Hard drive: 32 GB

HDD 1 type: eMMC

Drive: w/o hard drive

Bluetooth: 5.0

Mobile internet: WiFi

Keyboard layout: Keyboard not included

No. of Gigabit LANs: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

No. of USB 3.0 ports: 1 x

No. of USB type A 3.0 ports: 1 x

Interfaces: Wi-Fi 6 (IEEE 802.11
Bluetooth
HDMI™
Gigabit LAN (1 Gbps)
USB A (USB 3.0)
USB A (USB 2.0)
microSD
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
S/PDIF
Micro USB
Show more

Supported memory cards: microSD

Factory colour: Black

Width: 128 mm

Height: 28 mm

Depth: 128 mm

Weight: 270 g

Operating system (Version): Android™ 11

Graphics card type: Mali

No. of graphics cards: 1

Graphics card type: G52

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2705131 Minix Android Mini PC X35i plus ARM Cortex RK3566 Cortex-A55 Quad-Core 1.8 GHz 2 GB RAM 32 GB eMMC ARM Mali-G52 Android

Description

The right media playerThe Minix X35i PLUS is a powerful digital signage media player, which displays videos, widgets, live streams, social media feeds, and much more on advertising displays or menu boards. All content is stored in the cache, which means that it can be retrieved immediately even after a power outage. They can be played in portrait and landscape format both off and online. With low power consumption and reliable software and hardware the Minix X35i PLUS is the optimum partner for commercial 24/7-use.Seamless connectivityThe Minix X35i PLUS supports Wake On LAN, Auto Power, RTC, watchdog, has debug/ICE/MUART connections as well as a built-in 802.11ax dual band WiFi 6. Bluetooth 5.0 is available as an additional wireless connection. Inside the Minix, a reliable ARM Cotex A55 processor with Mali G52 graphics works. 2 GB RAM and 32 GB internal eMMC memory are available and the rooted Android 11 firmware lets you customize and configure the media player to individual needs.Numerous interfacesFor data exchange, the Minix X35i PLUS has numerous peripheral interfaces available: RJ-45 Gigabit-Ethernet, micro-SD card reader, USB 3.0, 2x USB 2.0, one OTG-connection (micro-USB), Kensington lock, 3.5 mm headphone jack, 3.5 mm microphone jack as well as an IR receiver. An HDMI 2.0 connection transmits audio and video signals in 4K quality. Furthermore, an optical SPDIF interface is available.Robust housingUnder the EMI protective housing, all components are protected from electrostatic charging, overvoltage and lightning strikes. The heat-conducting aluminum housing enables the fan-less and thus noiseless operation and the power conversion efficiency of the 12V-power supply can be increased by 85%.Comprehensive deliveryIn addition to dual-band antenna and power adapter, the X35i PLUS comes with HDMI and micro-USB cable, remote control and user manual.

This text is machine translated.
