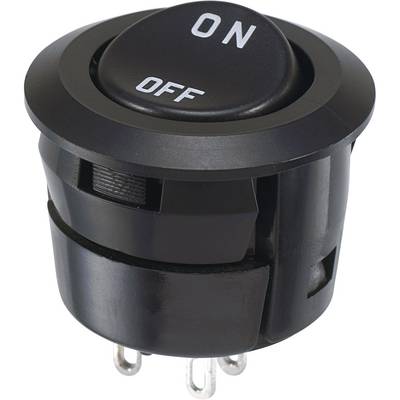

Miyama Flip switch DS-059S-ON 250 V AC 3 A 2 x Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
19.6 x 13 mm
Functions
latch
Lighting type
None
Datasheet (PDF)
Number
Total (€ 1.99 / piece)
€ 1.99
plus VAT.
Highlights & Details
MIYAMA rocker switches 250 V/AC 3 A
Our service for you
Technical specifications
- Product type
Flip switch
- Casing/button colour
Black
- Front panel cut-out
19.6 x 13 mm
- Functions
latch
- Lighting type
None
- Switch position
2 x Off/On
- Print motif
OFF/ON
- Connection
Solder tag
- Contact resistance
≤ 20 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Dielectric strength
(1 min) 1500 V AC
- Front panel thickness
2.5 mm
- Content
1 pc(s)
- Insulation resistance
500 V/DC - 100 MΩ
- RoHS-compliant
Yes
- Type
DS-059S-ON
- Type
2-pin OFF/ON
- Switching capacity
5 A/125 V/AC, 1.5 A/250 V AC
- Switching voltage
250 V AC
- Switching current
3 A
- Type
DS-059S-ON
- Connection
Soldered connection
Documents & Downloads
Datasheet
Datasheet 706036 Miyama Flip switch DS-059S-ON 250 V AC 3 A 2 x Off/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 706036 Miyama Flip switch DS-059S-ON 250 V AC 3 A 2 x Off/On latch 1 pc(s)
Description
Rocker switch for "snap-in" mounting.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
