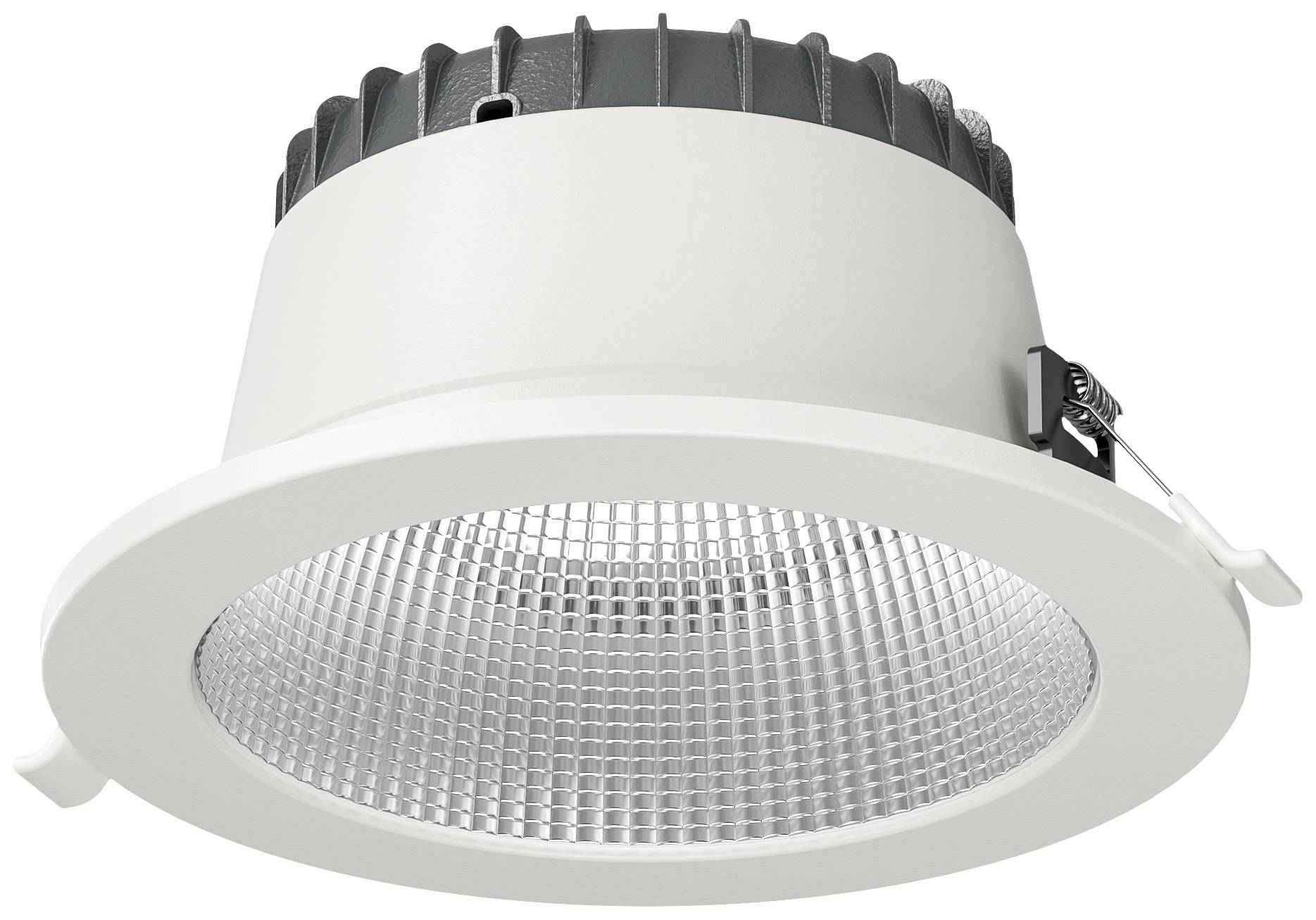

mlight 81-3330 LED recessed light LED (monochrome) 10 W White
EAN:
Part number:
Item no:
Highlights & Details
LED DOWNLIGHT UNO II
- Power= 10 W
- Total luminous flux= 1200 lm
- Colour temperature= 3000 K
- Warm white, Natural white, Cool white
Technical specifications
- Dim
(Ø x H) 114 mm x 66 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED recessed light
- Width
114 mm
- Bulb type
LED (monochrome)
- Height
66 mm
- Rating per bulb
10 W
- Depth
66 mm
10 W
- (Ø)
114 mm
- Light features
Dimmable
- Protection class
II
IP20
IP65
- Factory colour
White
- Material
Aluminium
Sheet metal
Plastic
n.rel.
- Colour rendering index
80
- Colour
Warm white
Natural white
Cool white
- Light bulb included
Yes
3000 K
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5700 K
- Total luminous flux
1200 lm
1200 lm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3305238 mlight 81-3330 LED recessed light LED (monochrome) 10 W White
Description
10W, 250mA, 1200lm, IP64, 60°
This text is machine translated.
This text is machine translated.
Features
- Symmetric radiating, round LED downlight, for mounting in saw ceiling openings
- Installation without tools by rapid assembly springs
- Resetted lens and aluminum reflector for non-glare light
- Supplied with electronic LED driver, not dimmable
- Driver: Enclosed; provided, white, round, replaceable decorative ring
- Outer diameter: 114mm; mounting depth: 66mm; ceiling section; 90 - 102mm
- Power consumption: 10W; Luminous flux: 1120 - 1200 Lumen
- Beam angle: 60°
- Dimmable: Using optional accessories
- Through-wiring capability: No.
- Colour temperature 3000K/4000K/5700K (adjustable)
- Colour rendering index:Ra 80
- Luminaire body made of metal, rear side made of plastic, aluminum reflector
- Housing color: White
- L70/B50 Life: Approx. 85,000 h at 25°C,
- L80/B10 Life: Approx. 50,000 h at 25 °C.
- Light color: Warm white/neutral white/cold white (adjustable)
- Switching cycles 25,000
- Protection class IP20/ IP64
- Protection class: II
- Temperature range: 0°C to +40°C;
