Mobeye Call-Key LTE door access control system Frequency 800 MHz, 2600 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
Highlights & Details
Mobeye Call-Key LTE door access control system Frequency 800 MHz, 2600 MHz
- User friendly 4G LTE-M door access control system
- 4G LTE-M/2G COMMUNICATION MODULE
- 4 x NO/NC inputs (potential-free)
- 2 x relay outputs (bi-stable, max. 1 A/30 V)
- 1 x 12-24 V DC input for connecting external voltage
- Power supply: 12-24 V DC (regulated)
- Optional 2 x CR123 Batteries for power failure reporting
Technical specifications
- Product type
LTE door access control system
- Frequency
800 MHz
2600 MHz
- Transfer Standard (Smart Home)
Manufacturer-specific
- Data transfer (Smart Home)
Wireless
- Channels
2
Manufacturer-specific
- Max. switching capacity
30 W
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Features
Signal input
Documents & Downloads
Datasheet
Datasheet 3341166 Mobeye Call-Key LTE door access control system Frequency 800 MHz, 2600 MHz
User & Safety Instructions
User & Safety Instructions 3341166 Mobeye Call-Key LTE door access control system Frequency 800 MHz, 2600 MHz
Description

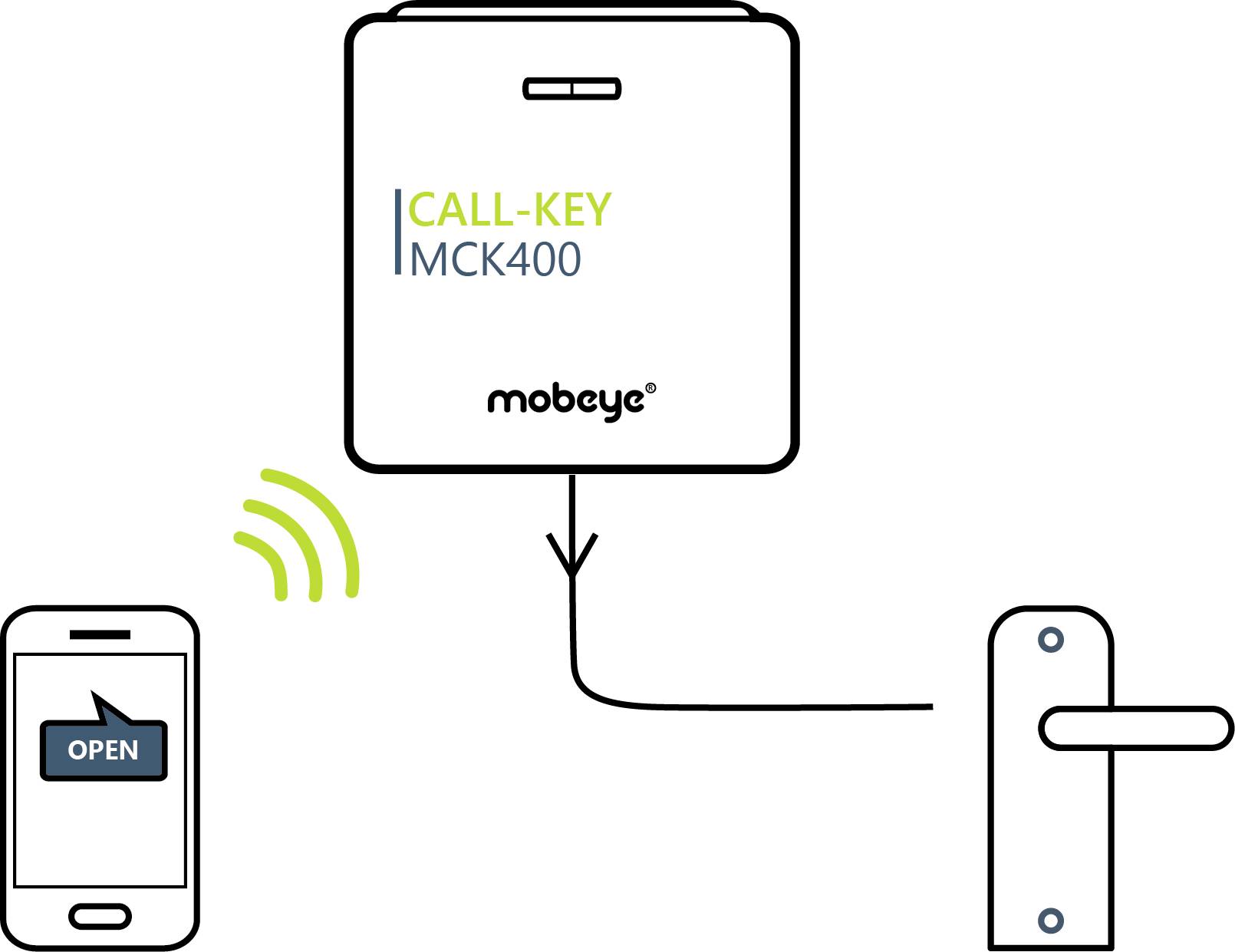

The Mobeye call key is a user-friendly and secure remote switch for entrance doors, gates and for situations where access rights change regularly. An authorized call opens electronic closing plates or door controls. No costs are incurred for the caller.
The granting of access rights is simple. The rights are assigned in the secure and clear Mobeye portal, unlimited or for certain time windows (period, day, time). The Mobeye call key automatically retrieves these rights and stores them locally. Due to communication via the internal 4G module and the Mobeye SIM card, on-site no Internet or WLAN is required. The MCK400 works with all electronic locks and locking plates, which react to a pulse or switching command. A protocol in the portal indicates who used the door control and when.
The Mobeye call key has two relay outputs for opening a lock. These are bi-stable relays, which can switch a maximum of 30V/1A. Output 1 switches after an incoming call or SMS command. Output 2 switches per defined opening schedule and/or an SMS command. The relays switch back after a pulse time or after a new command.
The MCK400 has a total of four NO/NC inputs. Two of them can be used to connect alarm contacts. The placing of magnetic contacts and setting of suppression times means that the call-key can also function as an intruder alarm. If the door or gate is opened without a call from an authorized number, the configured contacts receive an alarm message via APP, call, SMS or e-mail.

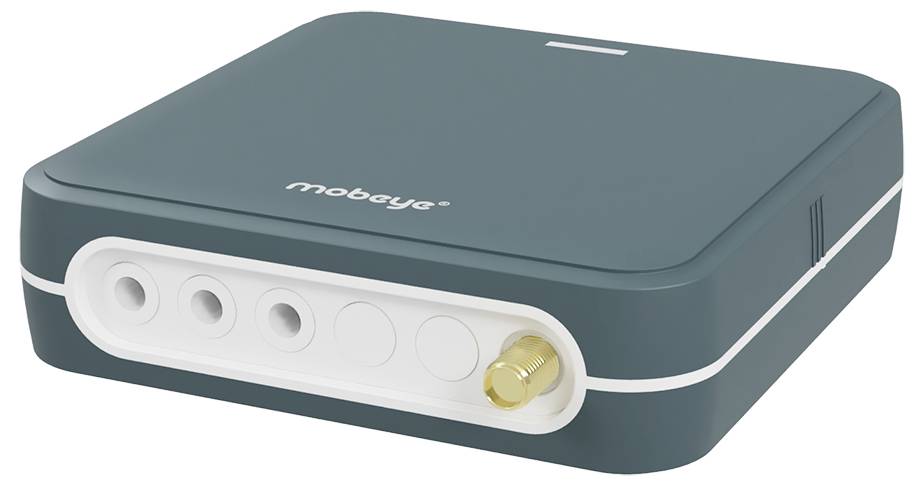

The device has a housing for indoor use. For outdoor use, the manufacturer offers the MCK400, as a special order, in an IP66 housing.
The call key is delivered with the Mobeye multi-provider SIM card. This not only enables communication via 4G LTE-M, with 2G as fallback, but also enables the use of the Mobeye portal. This secure Internet portal offers additional options for the Mobeye call key. Create users, set permissions and schedules, etc.
For companies with their own access software, an API is available for updating the authorizations. In exceptional circumstances, it is possible to use your own SIM card, but it is not preferred.
Ask the manufacturer about the explanations and conditions.
This text is machine translated.
The granting of access rights is simple. The rights are assigned in the secure and clear Mobeye portal, unlimited or for certain time windows (period, day, time). The Mobeye call key automatically retrieves these rights and stores them locally. Due to communication via the internal 4G module and the Mobeye SIM card, on-site no Internet or WLAN is required. The MCK400 works with all electronic locks and locking plates, which react to a pulse or switching command. A protocol in the portal indicates who used the door control and when.
The Mobeye call key has two relay outputs for opening a lock. These are bi-stable relays, which can switch a maximum of 30V/1A. Output 1 switches after an incoming call or SMS command. Output 2 switches per defined opening schedule and/or an SMS command. The relays switch back after a pulse time or after a new command.
The MCK400 has a total of four NO/NC inputs. Two of them can be used to connect alarm contacts. The placing of magnetic contacts and setting of suppression times means that the call-key can also function as an intruder alarm. If the door or gate is opened without a call from an authorized number, the configured contacts receive an alarm message via APP, call, SMS or e-mail.
The device has a housing for indoor use. For outdoor use, the manufacturer offers the MCK400, as a special order, in an IP66 housing.
The call key is delivered with the Mobeye multi-provider SIM card. This not only enables communication via 4G LTE-M, with 2G as fallback, but also enables the use of the Mobeye portal. This secure Internet portal offers additional options for the Mobeye call key. Create users, set permissions and schedules, etc.
For companies with their own access software, an API is available for updating the authorizations. In exceptional circumstances, it is possible to use your own SIM card, but it is not preferred.
Ask the manufacturer about the explanations and conditions.
This text is machine translated.
Features
- Switching output 1: By phone call or SMS, authorized or unauthorized
- Output 2 circuit: By schedule and/or SMS, authorized or unauthorized
- Permissions: 500 users, with the optional extension to 1000 users
- Ability to connect API to enterprise software to grant permissions
- Setting options: Pulse times for outputs (or hard switching), timer for opening hours
- Alarm notifications via push message, call, SMS, email and/or control room
- Alarm message as group message or as sequential message with escalation plan and confirmation
- Alarm when an input is activated (possibly when restoring the alarm)
- Alarm for external power failure and power recovery (only when using batteries)
- Additional security and user-friendliness via the Mobeye Internet portal and the APP
- Warning for missing test reports "Keep-Alive"
- Developed and manufactured in the Netherlands.
Scope of delivery
- Mobeye MCK400
- Power supply unit

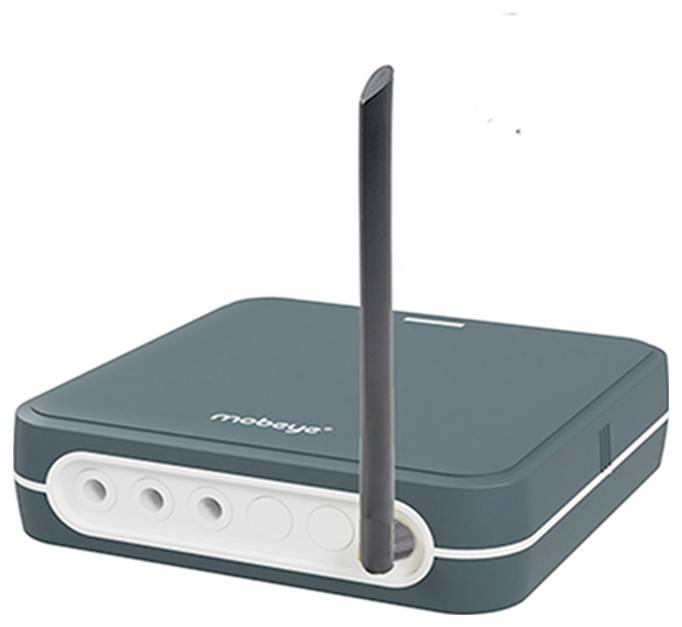

- Rod antenna
- Mobeye SIM card
Hints
The ambient temperature may not be exceeded or fallen below during operation (not below -10° C and not above 50° C). The device is to be protected against moisture, water spray as well as over-heating. The device may only be operated with the batteries specified by the manufacturer. The device must be protected against strong shocks and vibrations. The device may not be set up and operated in the vicinity of combustible gases, vapors or dust.
The device may only be repaired by a Mobeye® expert.
