Highlights & Details
Mobeye CM4400 GSM wireless smoke detector Frequency 800 MHz, 2600 MHz
- 4G LTE-M/2G COMMUNICATION MODULE
- Combined with Ei Electronics Ei650iC smoke detector
- Piezo alarm (85 dB at 3 m)
- Alarm via SMS/phone call/email
Technical specifications
- Dim. (Ø x H) 127 x 67 mm
- Power supply: 2 x CR123 lithium batteries
- Connectivity 4G LTE-M + 2G EGSM Quad band (900/1800 MHz)
- Product type
GSM wireless smoke detector
- Frequency
800 MHz
2600 MHz
- Transfer Standard (Smart Home)
Manufacturer-specific
n.rel.
- Data transfer (Smart Home)
Wireless
Manufacturer-specific
- Height
67 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
Documents & Downloads
Datasheet
Datasheet 2389918 Mobeye CM4400 GSM wireless smoke detector Frequency 800 MHz, 2600 MHz
User & Safety Instructions
User & Safety Instructions 2389918 Mobeye CM4400 GSM wireless smoke detector Frequency 800 MHz, 2600 MHz
Description

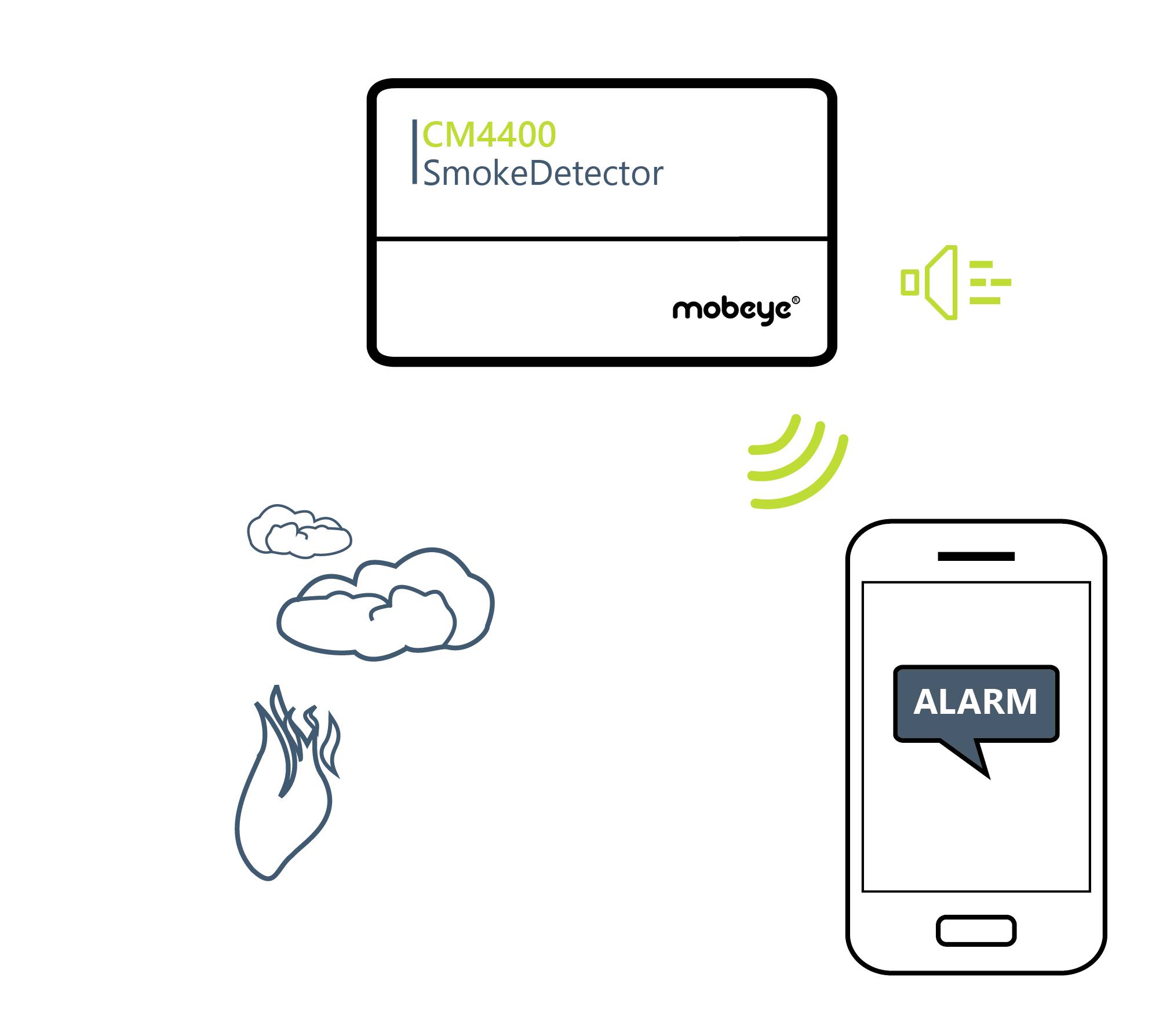

The Mobeye CM4400 smoke detector consists of the combination of a battery-operated smoke detector from EI Electronics and the reliable, specially developed and also battery-operated 4G LTE-M/2G module from Mobeye. In contrast to conventional smoke detectors, the CM4400, in case of smoke detection, in addition to the built-in siren, also alerts pre-set contacts via push message/telephone/SMS/e-mail. Transmission to a private emergency call center (PAC) is also possible. This is done via the standardized SIA DC09 protocol.
Application areas are: Holiday homes, garages, warehouses, boats, mobile homes, Caravans, basements, construction sites, care facilities, vacant properties, etc.
For communication, the Mobeye (M2M) SIM card is included in the delivery of the product. This low-cost "multi-provider" SIM card ensures communication over the 4G LTE-M network (with 2G as fallback). This SIM card also offers the use of the Mobeye Internet Portal and app for more comfort and optimum security. The 4G LTE-M network is very reliable, has strong penetration and also offers low power consumption. The SIM card for the Mobeye CM4400 to be activated online costs 4.00 EUR per month. This is a fixed amount based on fair use.
Optionally, a separate (micro) SIM card can be used. The device then works (only) with 2G and without using the Mobeye portal. The alarm notifications are sent via SMS and telephone call (max.) 5 contacts sent. Programming is done via (simple) SMS commands.
This text is machine translated.
Application areas are: Holiday homes, garages, warehouses, boats, mobile homes, Caravans, basements, construction sites, care facilities, vacant properties, etc.
For communication, the Mobeye (M2M) SIM card is included in the delivery of the product. This low-cost "multi-provider" SIM card ensures communication over the 4G LTE-M network (with 2G as fallback). This SIM card also offers the use of the Mobeye Internet Portal and app for more comfort and optimum security. The 4G LTE-M network is very reliable, has strong penetration and also offers low power consumption. The SIM card for the Mobeye CM4400 to be activated online costs 4.00 EUR per month. This is a fixed amount based on fair use.
Optionally, a separate (micro) SIM card can be used. The device then works (only) with 2G and without using the Mobeye portal. The alarm notifications are sent via SMS and telephone call (max.) 5 contacts sent. Programming is done via (simple) SMS commands.
This text is machine translated.
Features
- Corresponds to EN14604 for use in rooms with living function, 0 °C ... 40 °C).
- Power supply: 2 x CR123 lithium batteries
- Battery life: 1 year in normal use (battery operated)
- Simple programming of the settings: Programming is done via the Mobeye Internet Portal or without portal via SMS commands
- Additional security and user-friendliness via the Mobeye Internet Portal and the app
- Alarm notifications via push message, call, SMS, e-mail and/or control room
- Alarm message as a group message or as a sequential message with escalation plan and confirmation
- Warning of weak internal battery
- Warning for missing test reports "Keep-Alive"
- Developed and manufactured in the Netherlands.
Scope of delivery
- Mobeye CM4410 4G LTE-M/2G alarm module
- 2 x CR123 battery

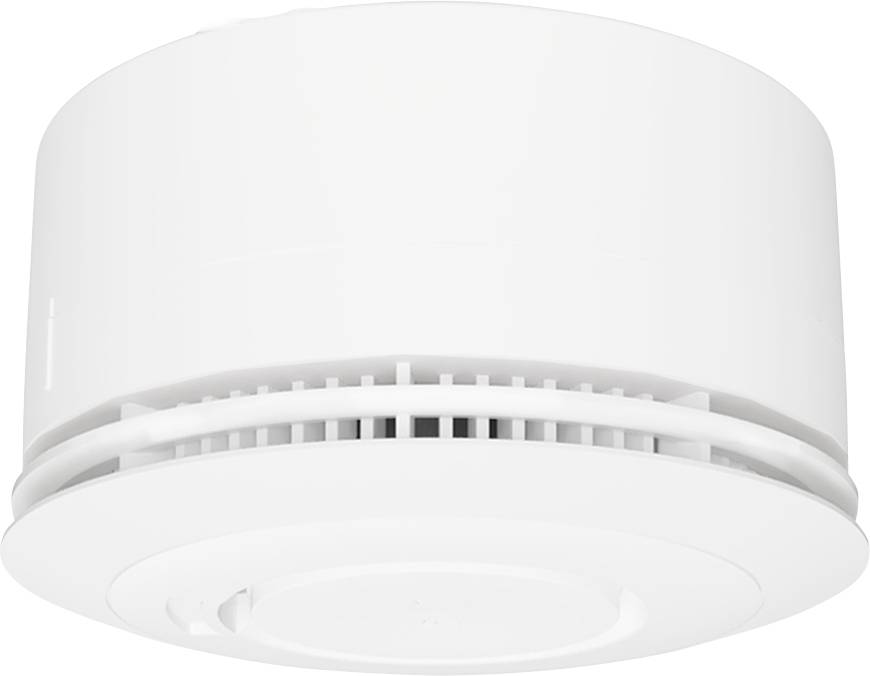

- Ei Electronics smoke detector Ei650iC (10-year lithium battery)
- Mobeye SIM card
Hints
The ambient temperature must not be exceeded or undercut during operation (not below -10 °C and not higher than 50 °C). The device must be protected against moisture, water spray and overheating. The device may only be operated with the batteries specified by the manufacturer. The device must be protected against strong vibrations and shocks. The device must not be installed and operated in the vicinity of flammable gases, vapors or dust.
The device may only be repaired by a Mobeye® expert.
