Mobeye CML4055 GSM monitoring system Frequency 800 MHz, 2600 MHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 273.11
€ 264.71
plus VAT.
Highlights & Details

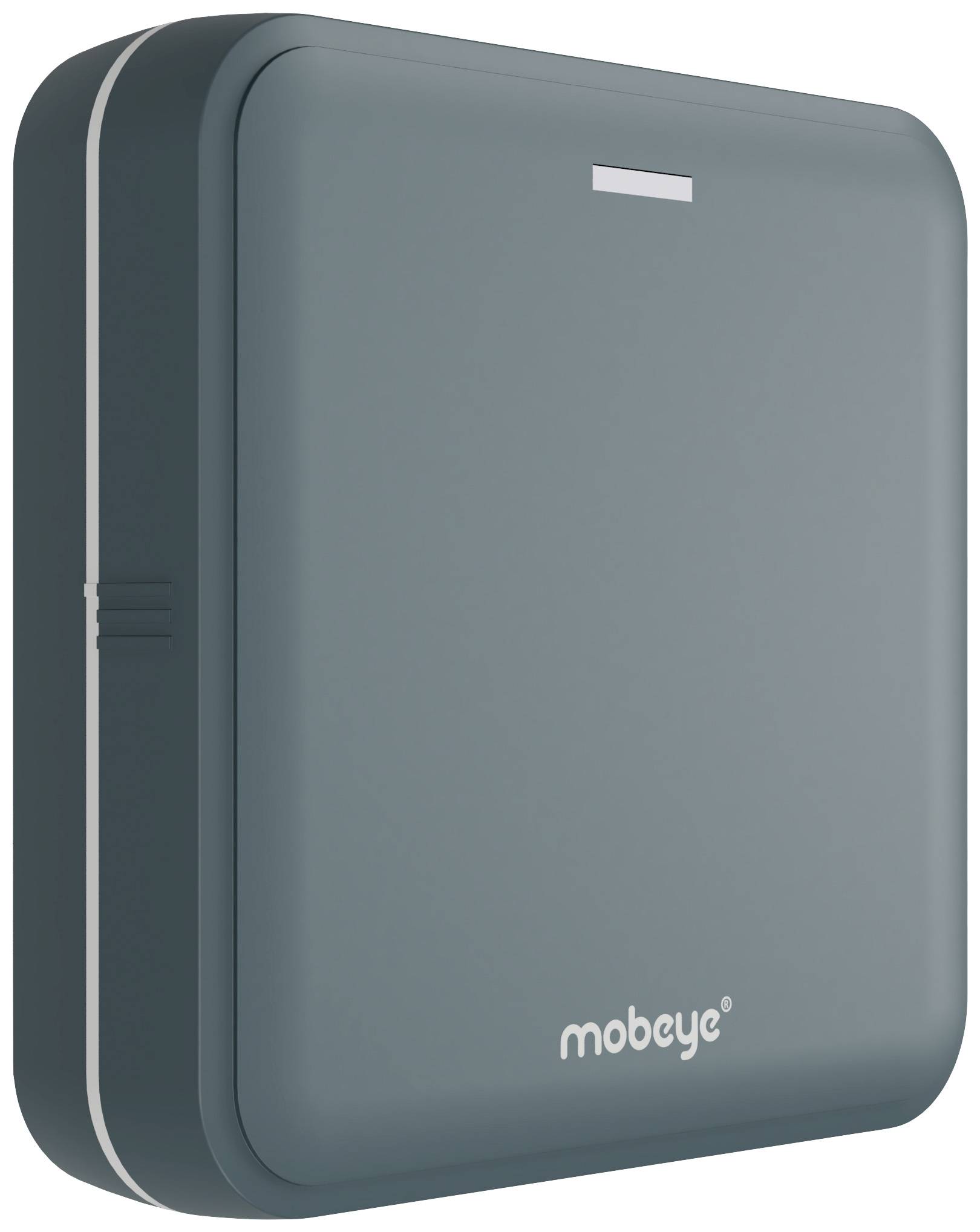

Mobeye CM guard TwinLog CML4055
- 4G LTE-M/2G COMMUNICATIONS MODULE2 INPUTS (ON/NO/NC)Alarm via SMS/call/emailBattery voltage monitor with measurement, recording, reporting and alarm function
Technical specifications
- 2 x inputs (ON/NO/NC)1 x Open Collector output (200mA at 12V DC)1 x 12 - 24 V DC input for connecting external voltage (with power failure monitoring)Protection class: IP44 housingBattery powered: 2 x CR123, includedBattery life: 1 year for normal use (battery operated), 3 years for normal use (external)Communication module: 4G LTE-M (EU) (and 2G 900/1800 MHz)
- Product type
GSM monitoring system
- Frequency
800 MHz
2600 MHz
- Transfer Standard (Smart Home)
Manufacturer-specific
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
2
Manufacturer-specific
- Width
94 mm
- Height
28 mm
- Length
94 mm
- Dim
(L x W x H) 94 x 94 x 28 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Features
Test function
Documents & Downloads
Datasheet
Datasheet 2585730 Mobeye CML4055 GSM monitoring system Frequency 800 MHz, 2600 MHz
User & Safety Instructions
User & Safety Instructions 2585730 Mobeye CML4055 GSM monitoring system Frequency 800 MHz, 2600 MHz
Description

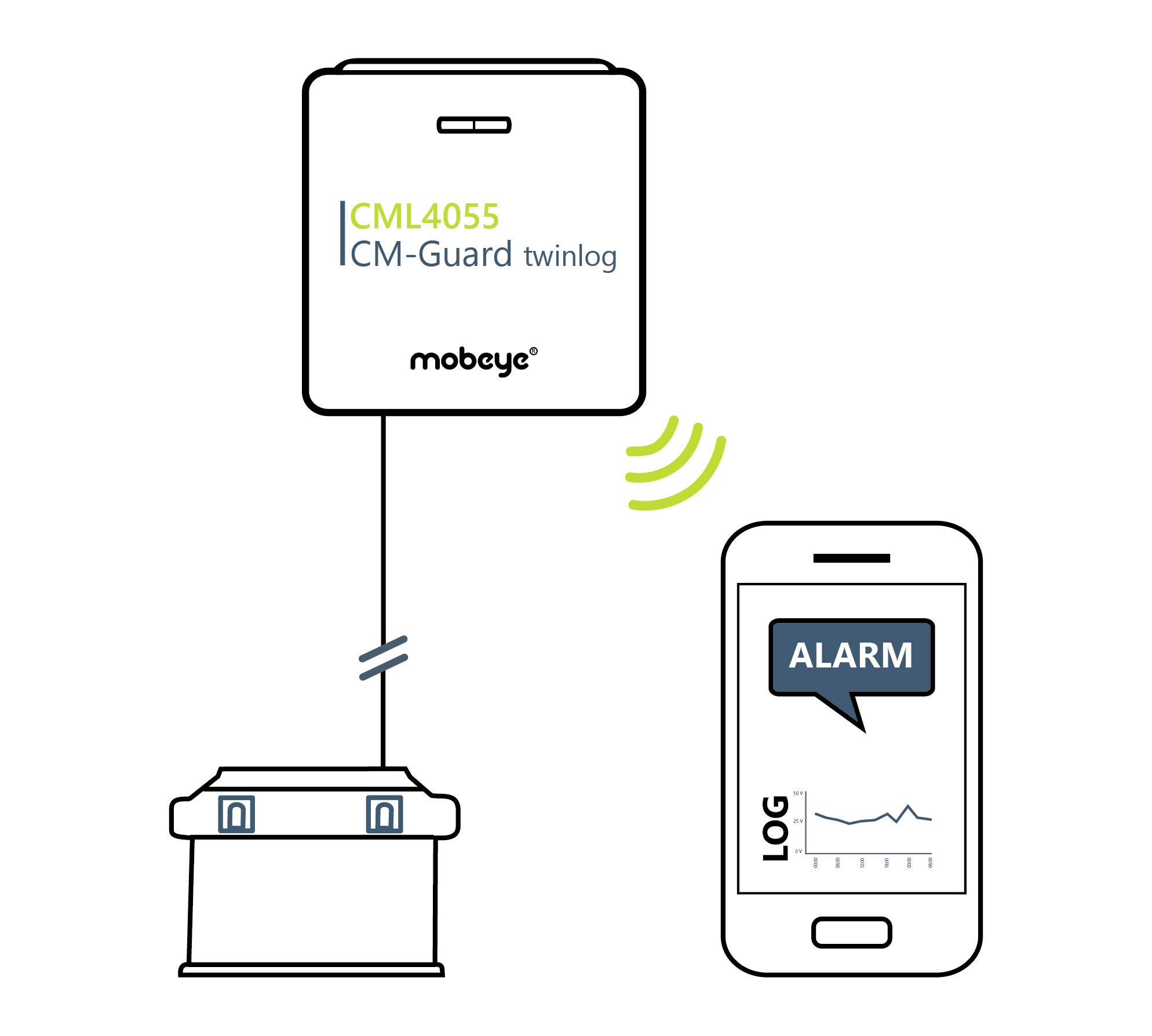

The Mobeye CM-Guard TwinLog (CML4055) is the special, compact module for monitoring analogue values and recording voltage gradients. By measuring two analogue values, the CML4055 monitors the preset low and/or high alarm limits and periodically logs the measured values. In the event of deviations, the 4G LTE-M/2G communication module sends an alarm message via push message/call/SMS/email. In addition, the Mobeye CM-Guard TwinLog logs the measured values and sends them regularly to the Mobeye Internet Portal. The values are displayed in graphic and table form, as well as available as a download file.The Mobeye CML4055 is ideal for measuring voltages between 0 and 48 volts, with peaks up to 60 volts. This makes the CML4055 ideal for monitoring a battery voltage. If a battery is discharged too deeply or if a voltage is reached that is too high, the defect may occur. By setting an alarm limit, measures can be taken in good time. The device can, for example, switch off a battery via the existing Open Collector output.If no external power source is available for the power supply of the Mobeye CM-Guard TwinLog, the CML4055 operates with its internal batteries, running time up to one year. However, if a voltage source is available, it is recommended to connect it with a 12 - 24 V DC adapter. The CML4055 can then be accessed online, the batteries last longer and it also functions immediately as a power failure alarm.For communication, the Mobeye (M2M) SIM card is included in the delivery of the product. This low-cost "multi-provider" SIM card ensures communication over the 4G LTE-M network (with 2G as fallback). This SIM card also offers the use of the Mobeye Internet Portal and app for more comfort and optimum security. The 4G LTE-M network is very reliable, has strong penetration and also offers low power consumption. The SIM card for the Mobeye CML4055 to be activated online costs 8.00 EUR per month. This is a fixed amount based on fair use.Optionally, a separate (micro) SIM card can be used. The device then works (only) with 2G and without using the Mobeye portal. The alarm notifications are sent via SMS and telephone call (max.) 5 contacts sent. Programming is done via (simple) SMS commands.
This text is machine translated.
This text is machine translated.
Features
- Alarm on voltage values (0 - 48 V)Alarm notifications via push message, call, SMS, e-mail and/or control roomAlarm message as a group message or as a sequential message with escalation plan and confirmationAlarm with an activated input (possibly in case of alarm recovery)Alarm in case of external power failure and power recoveryWarning of weak internal batteryWarning for missing test reports "Keep-Alive" (without portal: Test reports via SMS)Additional security and user-friendliness via the Mobeye Internet Portal and the appDeveloped and manufactured in the Netherlands.
Scope of delivery
- Mobeye CML4055
- 2 x CR123 batteries
- Mobeye SIM card (optional).
Hints
The ambient temperature must not be exceeded or undercut during operation (not below -10 °C and not higher than 50 °C). The device must be protected against moisture, water spray and overheating. The device may only be operated with the batteries specified by the manufacturer. The device must be protected against strong vibrations and shocks. The device must not be installed and operated in the vicinity of flammable gases, vapors or dust.The device may only be repaired by a Mobeye® expert.
