Mobeye CombiGuard CM4600 GSM monitoring system Frequency 800 MHz, 2600 MHz

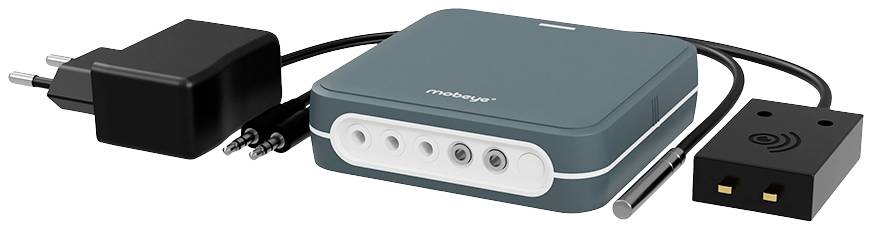

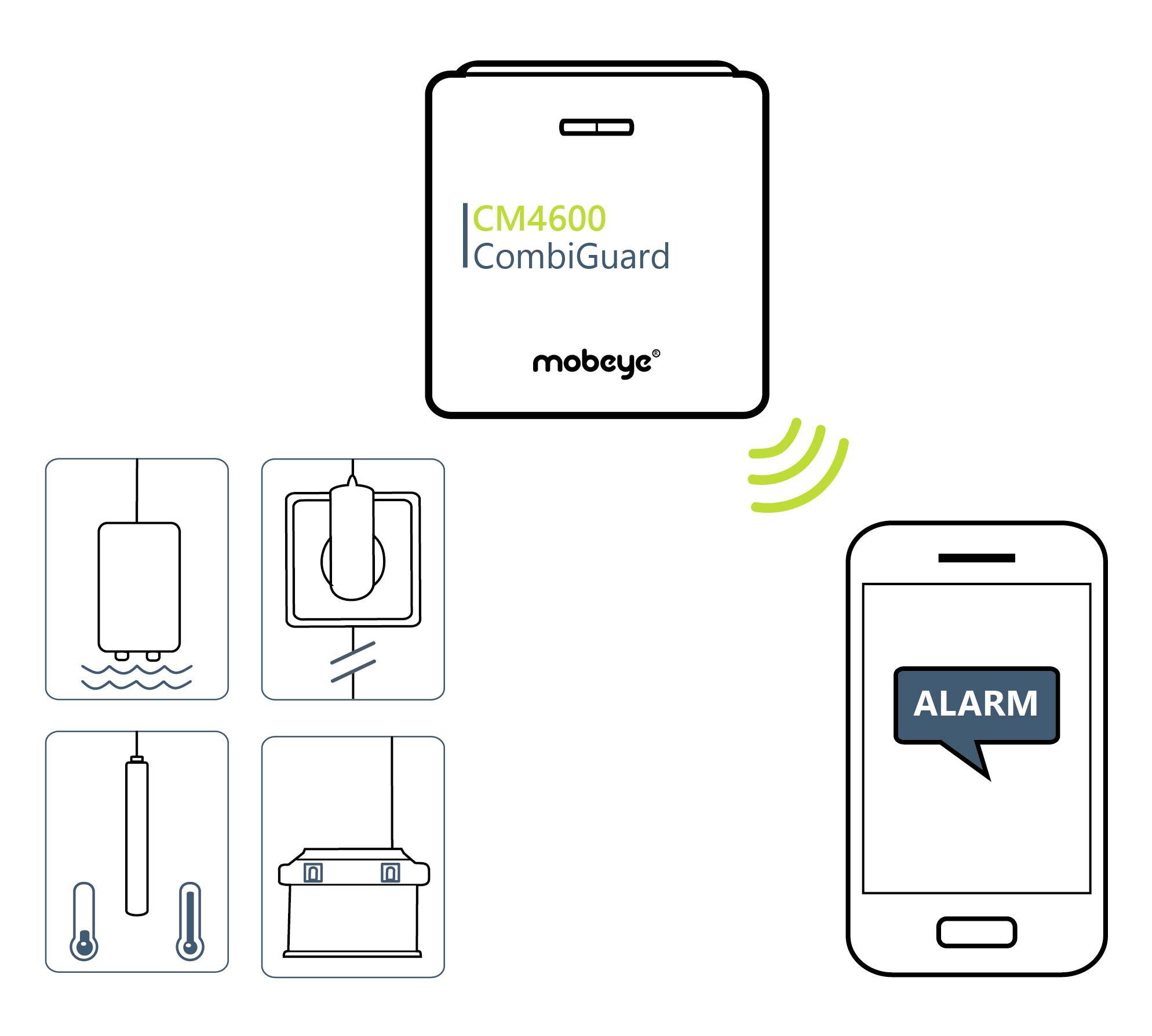

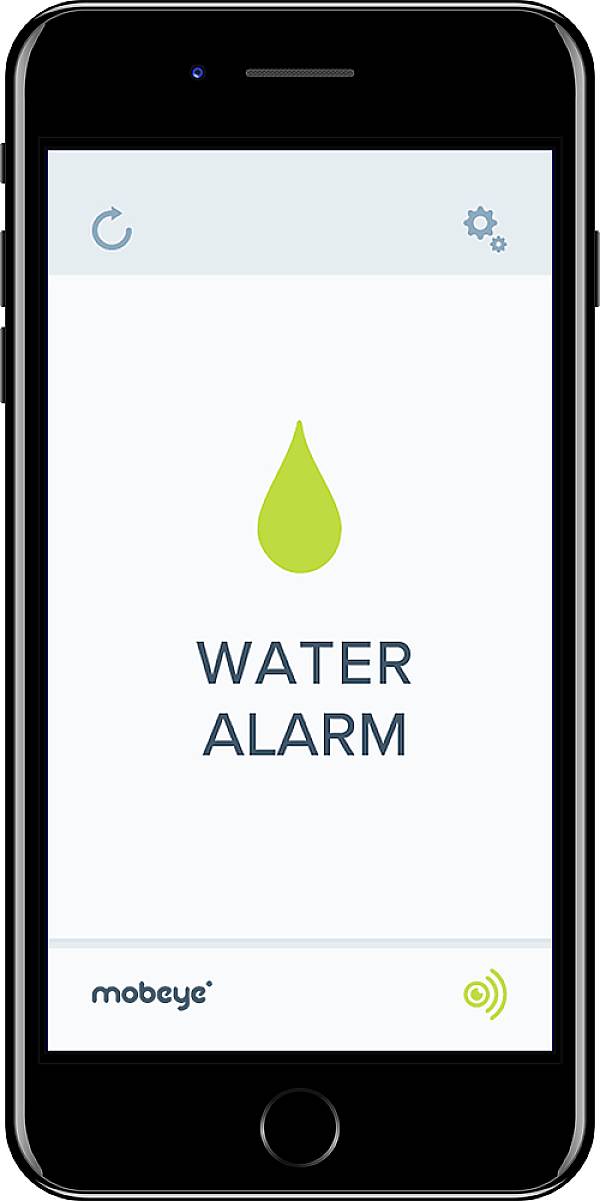

The perfect system for monitoring leakage, temperature, current, battery and mains voltage:The Mobeye CombiGuard is the optimal type of monitoring with its accompanying sensors and the possibilities for connecting other external sensors. This device will alert you when the set under- or overvoltage of a battery is reached, the leakage sensor detects water, in case of failure of the external power supply, as soon as the temperature exceeds or falls below the set temperature limits and if an additional sensor is activated. The alarm is triggered via the integrated 4G LTE-M/2G communication module. This sends corresponding messages to the set contacts via push message/call/SMS/email. The Mobeye CombiGuard is supplied with a digital temperature sensor, leakage sensor and mains adapter. The device has two inputs, which can be set as 0 - 48 V voltage input or as NO/NC. In addition, the device has an open collector output for automatic remote control of devices, after an alarm. The Mobeye CM4600 can be operated completely with batteries. Optionally, a 12 - 24V DC power source or the supplied power supply can be used.The CM4600 is ideally suited for monitoring and protecting a boat, especially in the case of long periods of absence or in winter storage. The module alerts when the shore supply is interrupted, water is in the bilge or the battery voltage drops. A device can be controlled via the Open Collector output. Thus, you can already switch on the refrigerator, heating or air conditioning on your way to the boat by simply sending an SMS to the CM4600.A Mobeye (M2M) SIM card is included for communication. This low-cost "multi-provider" SIM card provides the connection to the 4G LTE-M network (with 2G as fallback). The 4G LTE-M network is very reliable; has good accessibility in buildings and remote locations and is energy efficient. The SIM card also enables access to the Mobeye Internet portal and the push app for optimum user comfort, security and online programming. The Mobeye CM4600 SIM card that can be activated online costs 4.00 euros per month (plus VAT, flat rate).Optionally, you can use your own (micro) SIM card. The device then works (only) with 2G and without Portal/App. The alarm messages are sent via SMS and telephone call (max.) 5 phone numbers sent. Programming is done via (simple) SMS commands.
