Mobotix MOBOTIX ONE-S Dual Kamera Body ohne Obje Mx-ONE-S1A-D
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
The Mobotix S-ONE is a highly developed network security camera with two sensor modules that can be positioned flexibly, which provides a versatile overview of...
- Network camera
Technical specifications
- Product group: Security cameras
- Product type: Network camera
- Colour: white
- Mobotix ONE model
- Interface LAN
- ONVIF: Yes
- Image sensor type: No sensor module
- 8 MPx resolution
- Max. Resolution (pixels) 3840 x 2160
- Frame rate at max resolution (frames/second): MxPEG: 20@4K, H.264: 30@4K, H.265: 30@4K
- H.264, H.265, MxPEG+, M-JPEG compression
- Lens connector: Flexible sensor modules
- Lens type: No lens supplied
- Audio input: Yes
- Audio output: Yes
- Digital input: Yes
- Digital output: Yes
- Motion detection: Yes
- Memory card slot: Yes
- Power over Ethernet (PoE): Yes
- WLAN: no
- PROTECTION CLASS IP66 / IK10 / NEMA 4X
- Suitable for outdoor use: Yes
- Power connection Power over Ethernet (PoE)
- Min. Operating temperature -40 °C
- Max. operating temperature: 65 °C
- Height: 1.8" (137.5 cm)
- Width 115 cm
- Depth: 33 cm
- Weight: 0.45 kg
- Packaging height 100 mm
- Package width 150 mm
- Packaging depth 200 mm
- Package weight: 0,535 kg
- Gross weight: 0.535
- Transfer type
LAN
- Width
115 cm
- Height
137.5 cm
- Depth
33 cm
- Factory colour
White
- CCTV features
Microphone
Tamperproof
Speaker
Motion detector
Saves footage on SD card
ONVIF support
- Used at
Outdoors
- Power supply
PoE (Power over Ethernet)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798734 Mobotix MOBOTIX ONE-S Dual Kamera Body ohne Obje Mx-ONE-S1A-D
User & Safety Instructions
User & Safety Instructions 3798734 Mobotix MOBOTIX ONE-S Dual Kamera Body ohne Obje Mx-ONE-S1A-D
Description

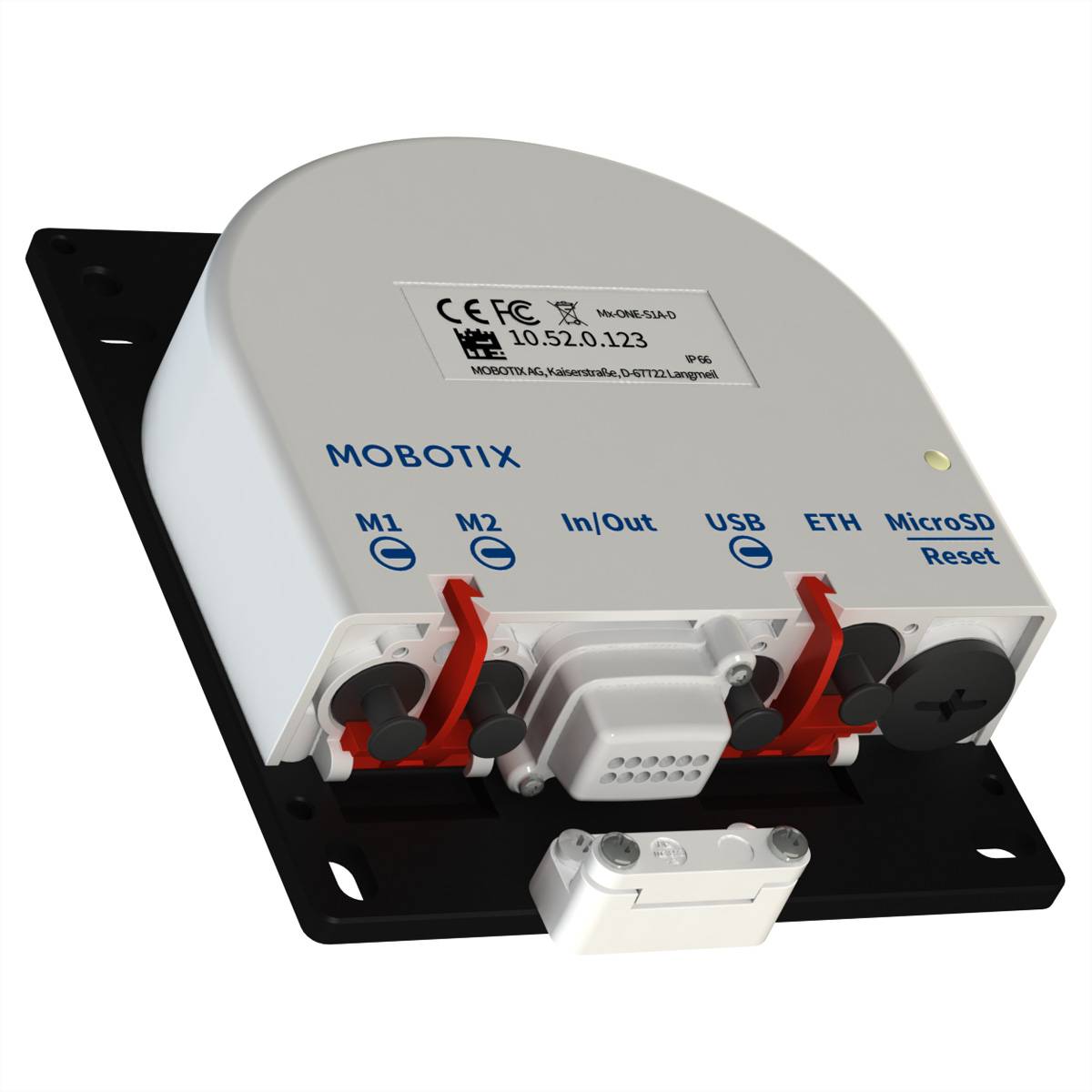

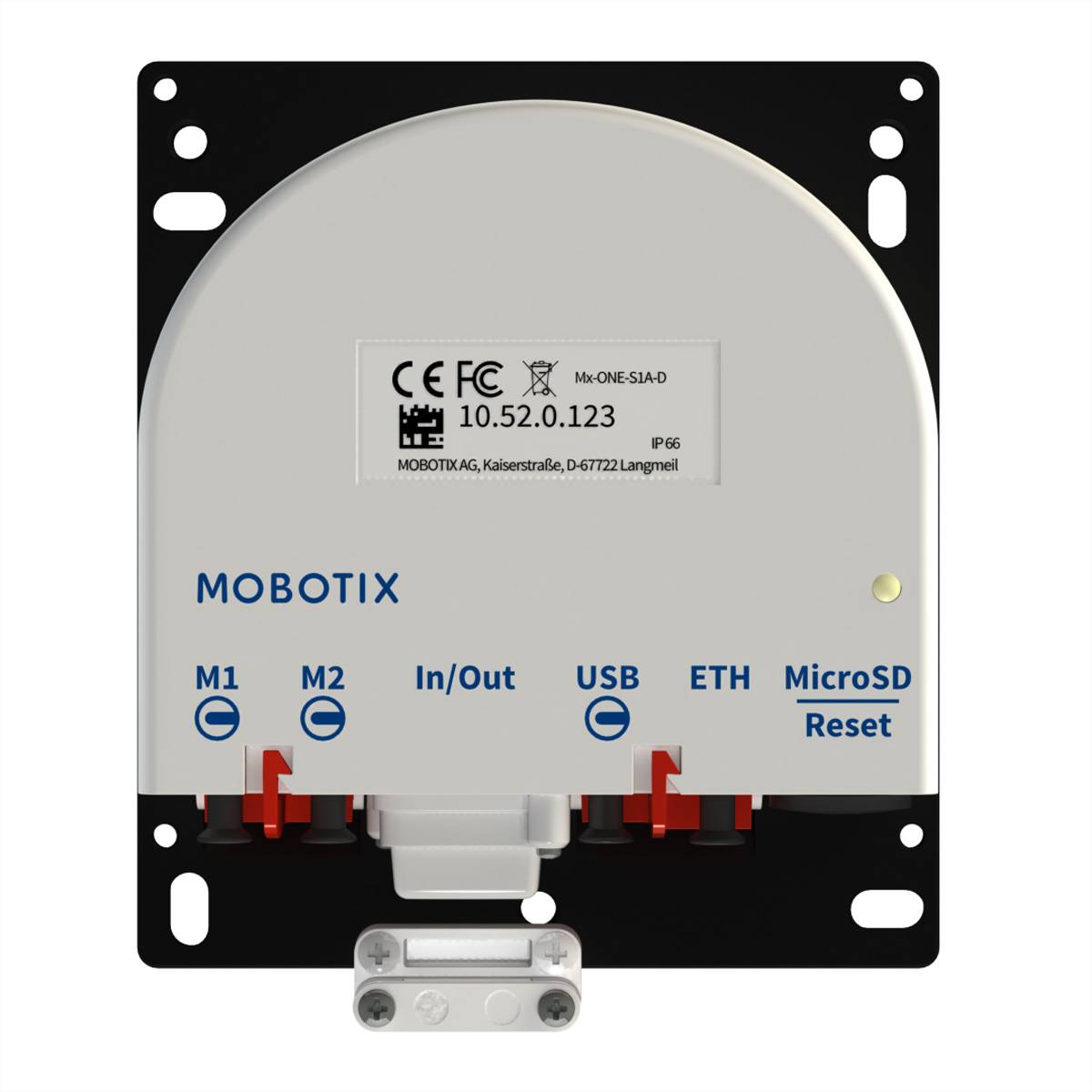

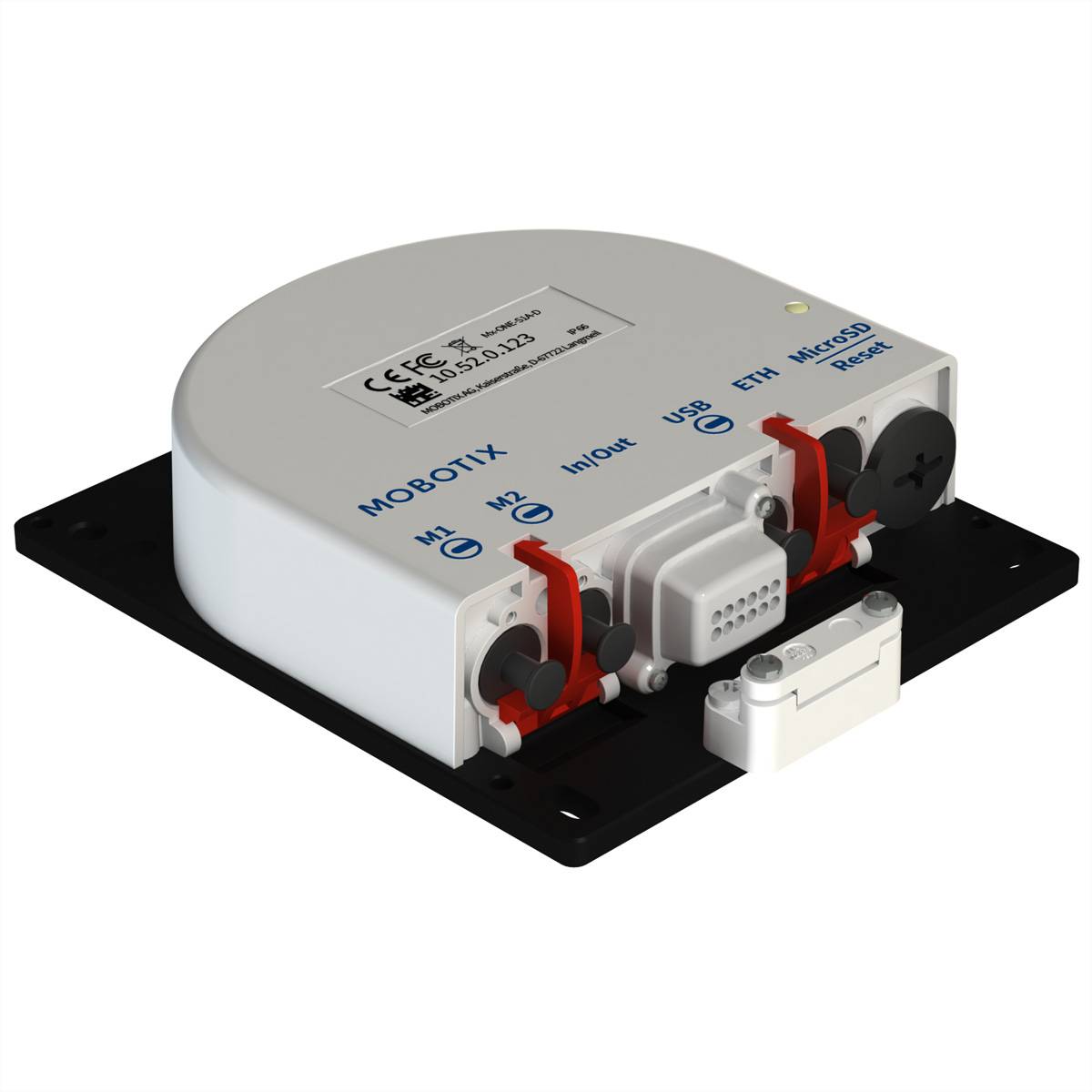

The Mobotix S-ONE is a highly developed network security camera with two sensor modules that can be positioned flexibly, which enables a versatile monitoring from several angles. Similar to the well-established S16, the S-ONE offers excellent image quality, intelligent motion detection and advanced networking features for professional video surveillance.Mobotix S-ONE – innovative security camera with two flexible sensor modules: Two modular 4K UHD sensor modules – can be positioned freely . Compact, hidden camera casing . Extremely robust: IP66, IK10, NEMA 4X. KI-enabled with integrated MxActivitySensorONE. Up to 2 TB internal memory, with pre-installed 64 GB microSD card. .
This text is machine translated.
Scope of delivery
- Camera casing without lens(s), assembly materials, 64GB microSD card, patch cable 0.5m
