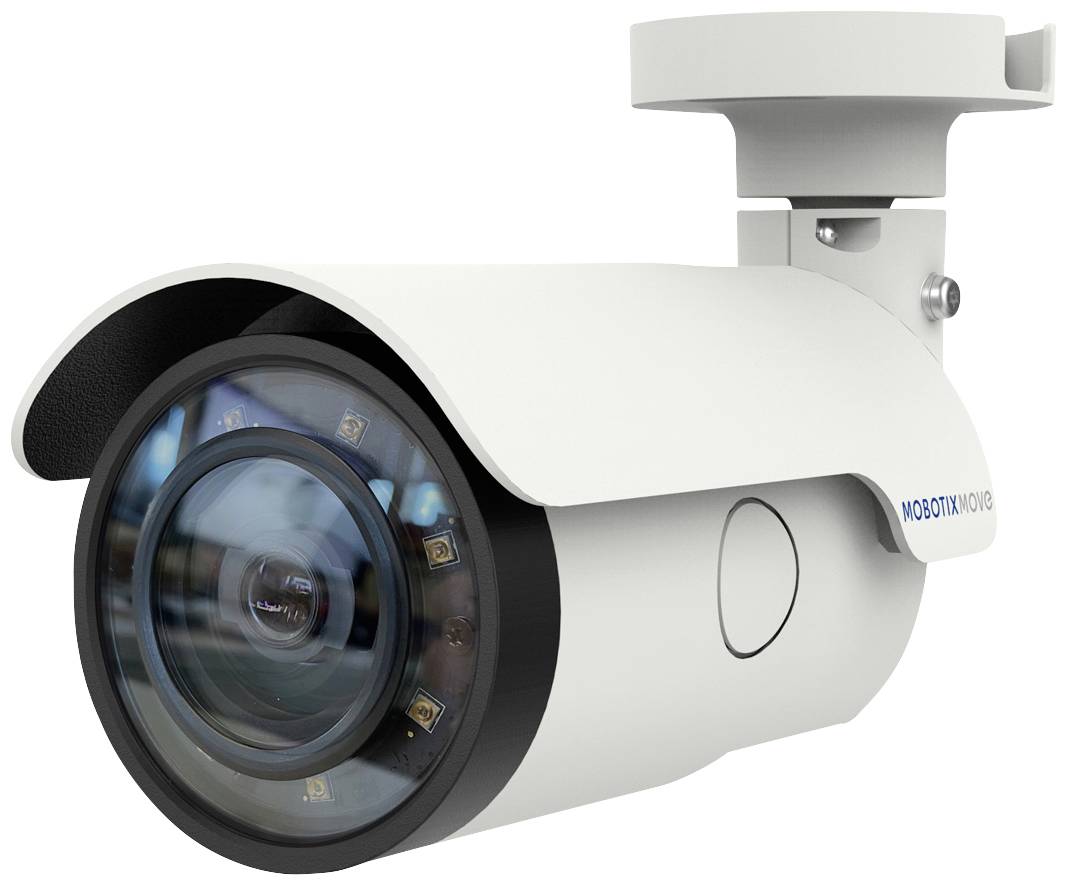

Mobotix Move Mx-VB1A-2-IR-D-ALPR LAN IP CCTV camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LAN IP-Bullet camera;MobotixMove;Mx-VB1A-2-IR-D-ALPRIndoors, Outdoors
- 2 MPx Resolution
- 1080p (Full HD)
- 35 m object distance
- Vehicle license plate recognition
Technical specifications
- Max. Image resolution 2 MP / 1080p (Full-HD)
- VIDEO CODECS: H.264, H.265 MJPEG
- Max. Image rate: 2 MP H.264, H. 264 @ 30 B/s; MJPEG: 1080p @ 30 B/s.
- Power supply: PoE IEEE802.3af, Class 0, max. 12.95 Watt, DC12V, 15.59 Watt, AC24V, max. 13.31 Watt, max. 25.08 VA
- Ambient temperature -55 to 60 °C (heating on)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
Vehicle recognition
ONVIF support
Tamperproof
IR LEDs
PoE IEEE 802.3af
- Camera type
Bullet camera
- Power supply
PoE (Power over Ethernet)
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Transfer type
LAN
- IR range (max.)
35 m
- Used at
Indoors
Outdoors
- Width
105 mm
- Height
140 mm
- Depth
234 mm
- Dim
(W x H x D) 105 x 140 x 234 mm
- Weight
1.28 kg
- Factory colour
White
IK10
IP67
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2973151 Mobotix Move Mx-VB1A-2-IR-D-ALPR LAN IP CCTV camera
User & Safety Instructions
User & Safety Instructions 2973151 Mobotix Move Mx-VB1A-2-IR-D-ALPR LAN IP CCTV camera
Description
Mobotix move vandal-bullet 2MP VA, 35 m object distance, vehicle license plate recognition.
By combining deep learning and classic OCR technology, the new Mobotix MOVE 2MP ALPR camera offers extremely reliable vehicle identification and classification capabilities.
The camera itself is of the usual quality, for which Mobotix stands: Robust, long-lasting, low-maintenance. Through infrared illumination and EverClear coating, the camera can be used around the clock and also in extreme weather conditions.
Application options with partial or full automation:
From stationary to fast moving vehicles on roads in the city, federal roads and motorways
Access control for authorized vehicles, refusal for unauthorized persons
Automated opening and closing of gates and barriers
Warning when vehicles appear on the block list
Statistics and evaluation of meta data for marketing and sales: Where do my customers come from? Which vehicle class/brand/color in what frequency? Quota of recurring visitors vs. New customers, etc. … And many other individual applications
Application areas:
Multi-lane running traffic in the city, on federal roads and highways.
Greater distance between the object and installation location of the camera
High speed application
All applications that require a small viewing angle and maximum range.
This text is machine translated.
By combining deep learning and classic OCR technology, the new Mobotix MOVE 2MP ALPR camera offers extremely reliable vehicle identification and classification capabilities.
The camera itself is of the usual quality, for which Mobotix stands: Robust, long-lasting, low-maintenance. Through infrared illumination and EverClear coating, the camera can be used around the clock and also in extreme weather conditions.
Application options with partial or full automation:
From stationary to fast moving vehicles on roads in the city, federal roads and motorways
Access control for authorized vehicles, refusal for unauthorized persons
Automated opening and closing of gates and barriers
Warning when vehicles appear on the block list
Statistics and evaluation of meta data for marketing and sales: Where do my customers come from? Which vehicle class/brand/color in what frequency? Quota of recurring visitors vs. New customers, etc. … And many other individual applications
Application areas:
Multi-lane running traffic in the city, on federal roads and highways.
Greater distance between the object and installation location of the camera
High speed application
All applications that require a small viewing angle and maximum range.
This text is machine translated.
Features
- Integrated Vaxtor ALPR software
- International plate recognition for up to 18/35 m distance with and without IR LEDs
- With 6 bits. MMC detection (brand, model, color)
- Required number plate height 14 to 70 pixels
- Weatherproof ONVIF S/G/T/M vandalism-proof bullet camera for use in day and night
- Automatic switching from color to B/W image (mechanical IR band-elimination filter)
- Remote zoom/focus
- Motor-controlled Vario lens
- Auto-iris with automatic adjustment to changing lighting conditions
- True WDR (130 dB)
- Bi-directional audio (line in/out)
- I/O alarm
- Hardened and "self-cleaning" anti-reflex camera Front-glass coating Mobotix EverClear
- MTBF: 95.000 h
