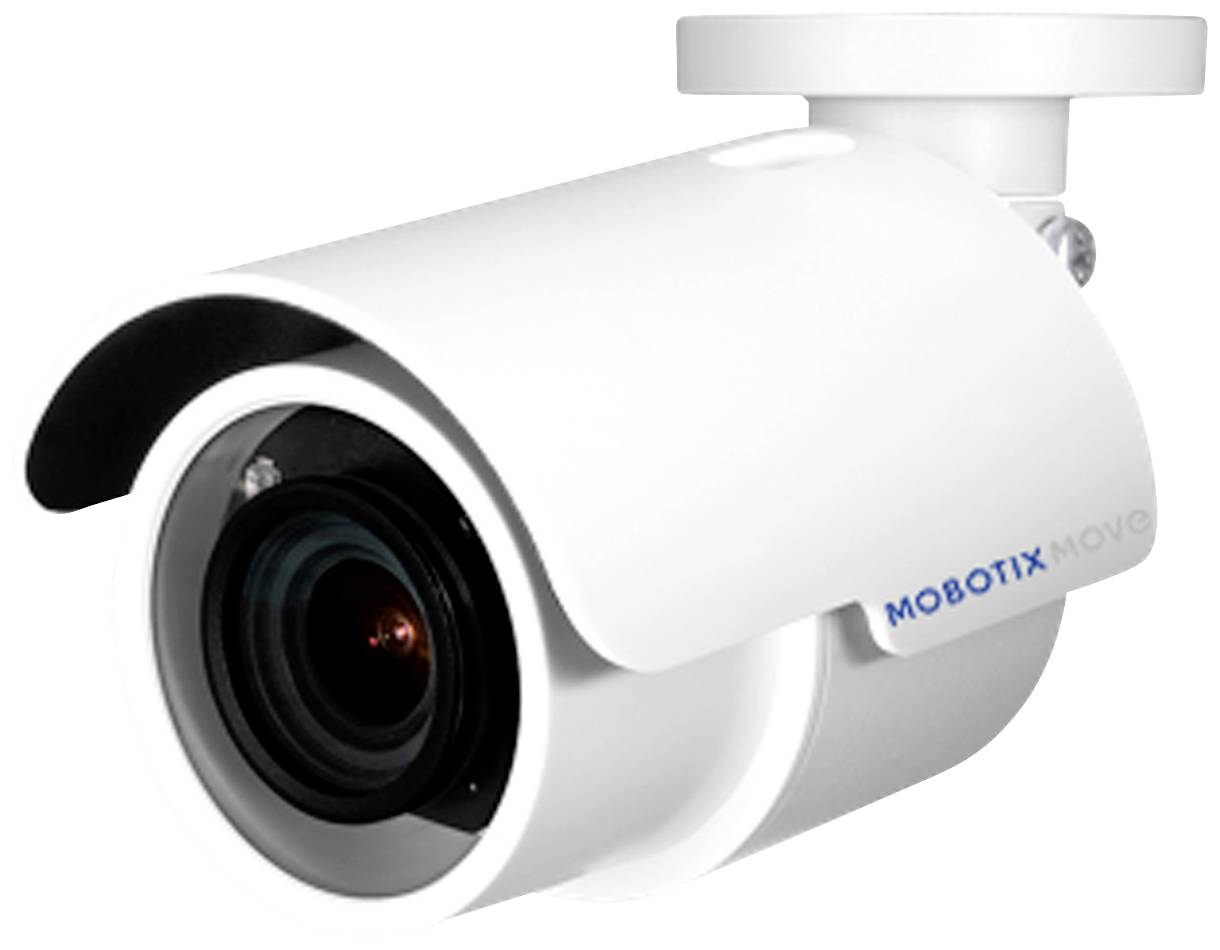

Mobotix Mx-BC2A-2-IR Mx-BC2A-2-IR LAN IP CCTV camera 1920 x 1080 p
EAN:
Part number:
Item no:
LAN IP-Bullet camera;1920 x 1080 p;MobotixMx-BC2A-2-IR;Mx-BC2A-2-IROutdoors, Indoors
Highlights & Details
- Weatherproof 2MP camera with H.264/H. 265 ONVIF S/G/T and WDRIntegrated infrared illumination (LED, up to 15 m)Automatic day/night switching with IRBlocking filterRecord to NAS or internal SD cardMax. Image size: 1920x1080 (2MP)
Technical specifications
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
- Camera type
Bullet camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
1920 x 1080 p
- Sensor size
8.5 mm (1/3")
- Sensor type
CMOS
- Focal length
2,8 - 12 mm
- Viewing angle
91°
- Max. viewing angle hor.
91°
- Transfer type
LAN
- IR range (max.)
15 m
- Used at
Outdoors
Indoors
- Type
SD card
- Width
20 cm
- Height
17.5 cm
- Depth
29.6 cm
- Dim
(W x H x D) 20 x 17.5 x 29.6 cm
- Weight
580 g
- Factory colour
White
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2621222 Mobotix Mx-BC2A-2-IR Mx-BC2A-2-IR LAN IP CCTV camera 1920 x 1080 p
Description
MOBOTIX MOVE bullet cameras - Weatherproof and compact network cameras with integrated infrared LEDs for day and night use.
This text is machine translated.
This text is machine translated.
Features
- Image sensor: 2MP (1920 x 1080), 1/3" progressive CMOS WDR (up to 130dB) Weatherproof ONVIF S /G/T camera with integrated IR LEDs (up to 15 m) For use day and night Automatic switching from color to B/W image (mechanical IR blocking filter) Manually adjustable varifocal lens (F1.4: 2.8 to 12 mm, picture angle H: 91°-34°) Video codecs: H.264, H.264, MJPEG (up to 4 streams simultaneously) Max. Frame rate: 2MP@60 B/s (H.264, H.264) Ambient temperature -30 to 60 °C, IP66 Power supply: PoE IEEE 802.3af
Scope of delivery
- Camera with lens
- Fitting Material
