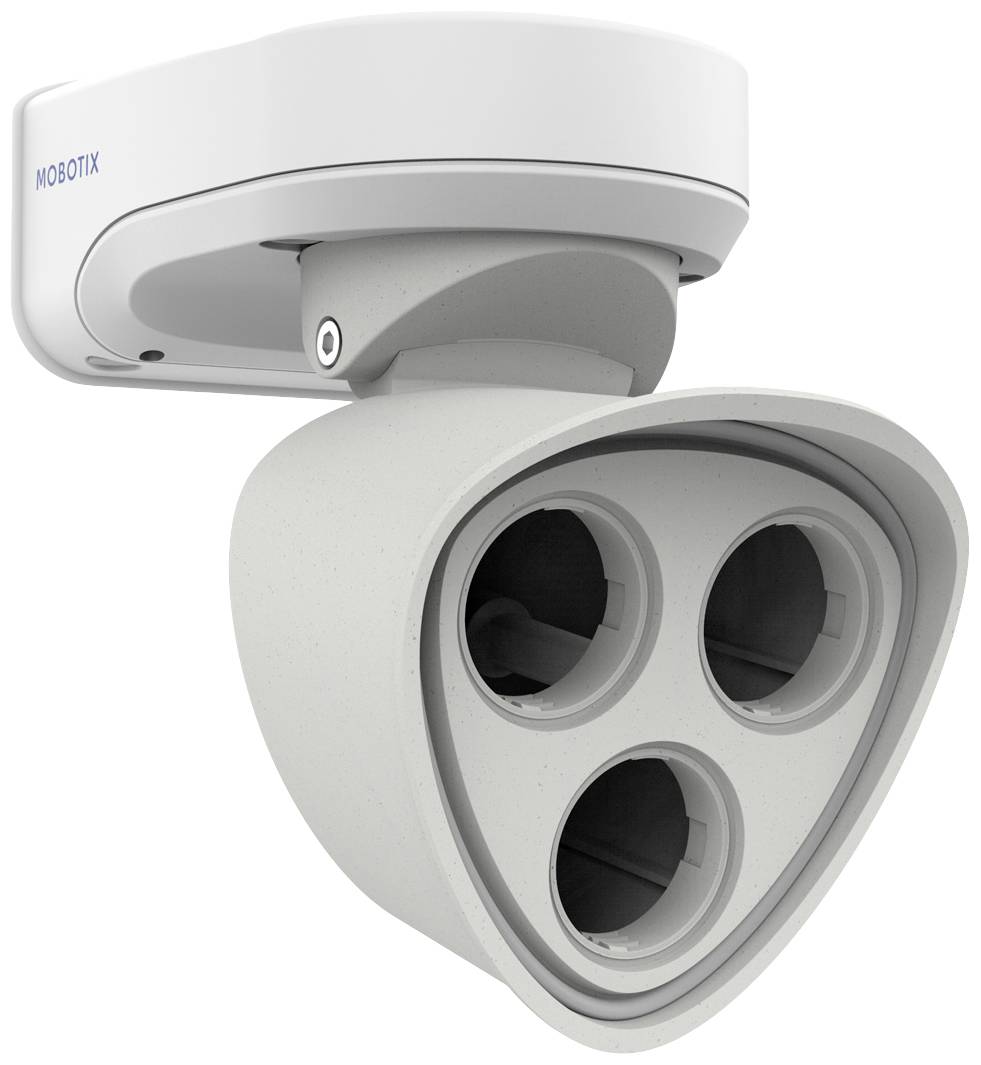

Mobotix Mx-M73A-LSA Mx-M73A-LSA LAN IP CCTV camera 3840 x 2160 p
EAN:
Part number:
Item no:
Technical specifications
- Number of video streams: 3Audio output: YesAudio input: YesAutomatic IR blocking filter: PartialOperating temperature: -40 °C to +65 °CFrame rate at max resolution Images/second: MxPEG: 20 at 4K, H.264: 30 at 4K, H.264: 30 at 4KDigital output: YesDigital input: YesBuilt-in PIR sensor: YesCompression method: MxPEG, H.264/H. 265, M-JPEGResolution 8 MPXSwivel range: Digital infiniteLens connection: Flexible sensor modulespower over Ethernet PoE: YesDay/Night Mode: Yes
- Product type
CCTV camera
- Series
MOBOTIX M73
- CCTV features
Saves footage on SD card
Motion detector
- Camera type
Box camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3840 x 2160 p
- Sensor type
CMOS
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (- IR)
0.001 lx
- Used at
Outdoors
- Type
microSD card (up to 8 GB)
- Width
15.3 cm
- Height
22.8 cm
- Depth
23.2 cm
- Dim
(W x H x D) 15.3 x 22.8 x 23.2 cm
- Weight
2.578
- Factory colour
White
IP66
IK07
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557317 Mobotix Mx-M73A-LSA Mx-M73A-LSA LAN IP CCTV camera 3840 x 2160 p
Description
The MOBOTIX M73 is designed to be the best and most innovative IoT network camera. MOBOTIX's DNA is being expanded and its traditions are still preserved. Completely new and unique. Intelligent, flexible and versatile. M73 – the first MOBOTIX M-Camera with 3 modules. With the intelligent plug-in app concept, applications such as: License plate recognition, person counts, face recognition or fire alarm messages etc. can be activated in the simplest way. Flexible. Modular. Unique: Platform with the most flexible codec support: H.264, H. 265, MxPEG+ and MJPEG+ ONVIF Profile S and T compliance for highest interoperability Increased modularity through flexible use of a combination of up to 3 sensor or function modules Triple Shutter WDR with a range of 120dB Easy Plug Quick-mounting system ready for use under all environmental conditions: -40 to 65°C, IP66 and IK07 Max. Image size: 4K UHD 3840x2160, 16:9 mounting options: Wall, mast (with accessories)
