Mobotix Mx-MD1A-5-IR Mx-MD1A-5-IR LAN IP CCTV camera 2720 x 1976 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Dome camera;2720 x 1976 p;MobotixMx-MD1A-5-IR;Mx-MD1A-5-IRIndoors
Highlights & Details
- PoE (Power over Ethernet)Max. 5MP (2720x1976) image resolutionFixed focal length lens (F2.0 2.8 mm)
Technical specifications
- Ambient temperature -30 to 55°C, air humidity 10 to 90% non-condensingVideo codecs: H.264, H.265, MJPEG (up to 4 video streams simultaneously)Max. Frame rate: 5MP H.264, H.265 @ 30 fps; MJPEG: 1080p @ 30 fpsPower supply: PoE IEEE802.3af, max. 5.09 WMTBF: 95.000 h
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
ONVIF support
PoE IEEE 802.3af
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2720 x 1976 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
- Focal length
2,8 mm
- Max. viewing angle hor.
108.3°
- Vertical viewing angle
76.5°
- App compatibility
No
- Transfer type
LAN
- IR range (max.)
15 m
- Used at
Indoors
- Width
165 mm
- Height
135 mm
- Depth
165 mm
- Dim
(W x H x D) 165 x 135 x 165 mm
- Weight
450 g
- F-numbers
F2.0
- Factory colour
White
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861905 Mobotix Mx-MD1A-5-IR Mx-MD1A-5-IR LAN IP CCTV camera 2720 x 1976 p
User & Safety Instructions
User & Safety Instructions 2861905 Mobotix Mx-MD1A-5-IR Mx-MD1A-5-IR LAN IP CCTV camera 2720 x 1976 p
User & Safety Instructions 2861905 Mobotix Mx-MD1A-5-IR Mx-MD1A-5-IR LAN IP CCTV camera 2720 x 1976 p
Description

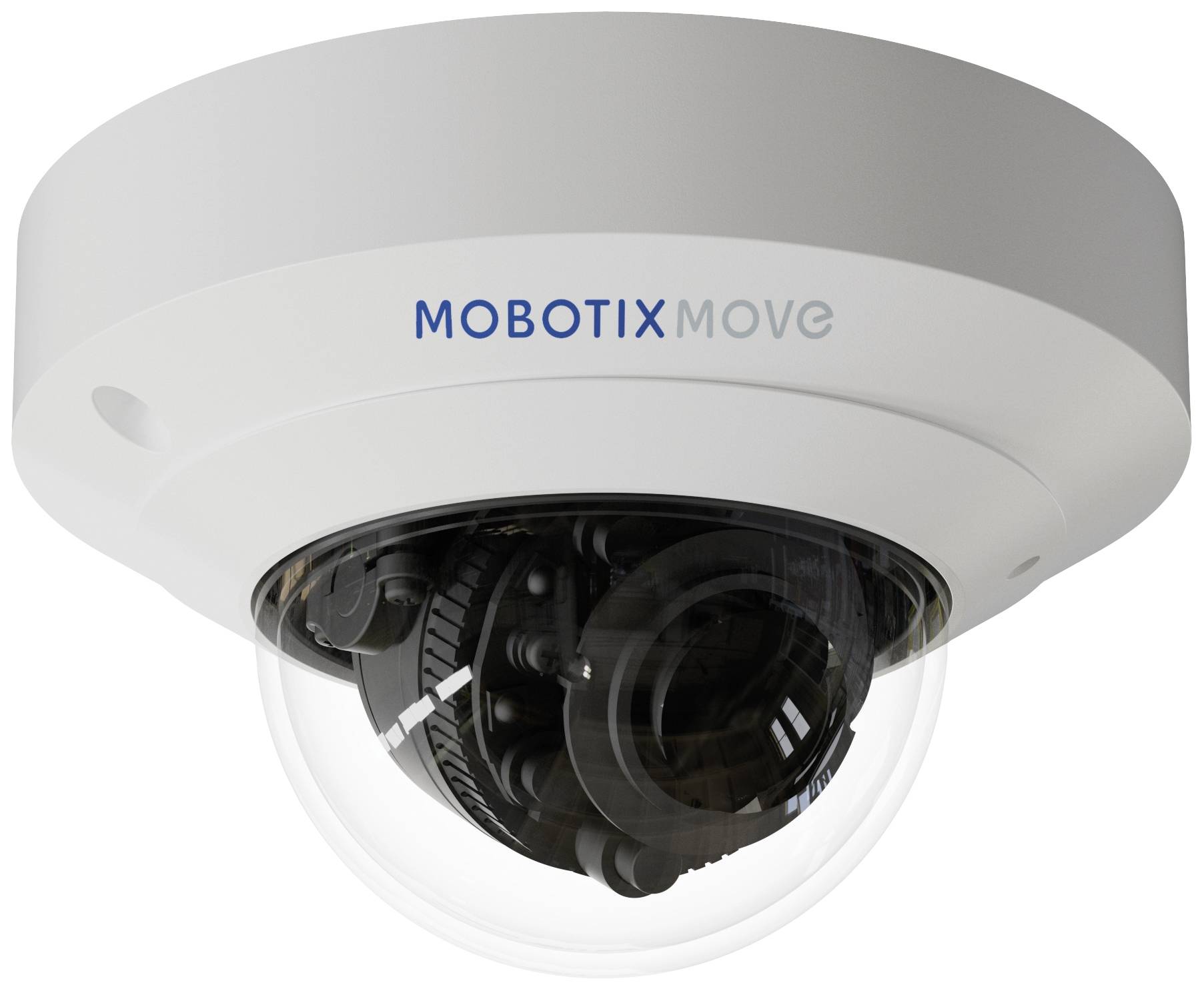

Mobotix MOVE indoor MicroDome network camera MX-MD-5-IR. ONVIF S/G/T dome camera with integrated IR-LEDs (up to 15 m) for use during the day and night.
This text is machine translated.
This text is machine translated.
Features
- Automatic switching from color to B/W image (mechanical IR band-blocking filter)3-axis lens adjustmentIndoor IK8True WDR (120 dB).
Scope of delivery
- Camera with lens
- Fittings.
