Mobotix Mx-S74A Mx-S74A LAN IP CCTV camera 3840 x 2160 p
EAN:
Part number:
Item no:
Technical specifications
- Number of video streams: 3Automatic IR blocking filter: YesOperating temperature: -40 °C to +65 °CFrame rate at max resolution Images/second: MxPEG: 20 at 4K, H.264: 30 at 4K, H.264: 30 at 4KCompression method: MxPEG, H.264/H. 265, M-JPEGResolution 8 MPXSwivel range: Digital infiniteLens connection: Flexible sensor modulespower over Ethernet PoE: YesDay/Night Mode: Partial
- Product type
CCTV camera
- Series
MOBOTIX S74
- CCTV features
Saves footage on SD card
Motion detector
- Camera type
Box camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3840 x 2160 p
- App compatibility
Yes
- Transfer type
LAN
- Used at
Outdoors
- Width
19.6 cm
- Height
9 cm
- Depth
29.6 cm
- Dim
(W x H x D) 19.6 x 9 x 29.6 cm
- Weight
1.46
- Factory colour
White
IP66
IK07
- Signal standard
IP
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2557777 Mobotix Mx-S74A Mx-S74A LAN IP CCTV camera 3840 x 2160 p
Description

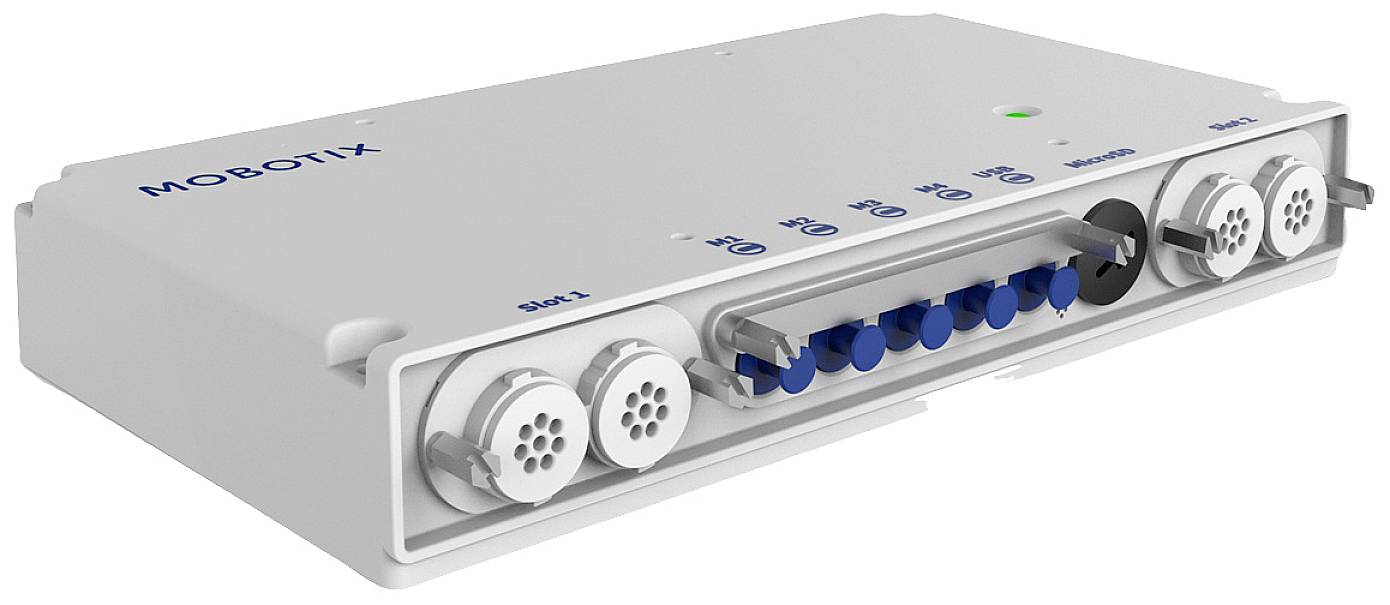

With up to four modules, the S74 is more flexible than any MOBOTIX IoT video system before. The camera itself acts discreetly with its concealed camera housing. Only the modules are visible. Thanks to the module cable of up to three meters long, several adjacent rooms or different directions can be recorded with only one camera. Discrete - flexible - brilliant: Platform with the most flexible codec support: H.264, H. 265, MxPEG+ and MJPEG+ ONVIF Profile S and T Compliance possible for highest interoperability up to 4 sensors (currently 2 optical / 2 function modules simultaneously) Triple Shutter WDR with a range of 120dB ready for use under all environmental conditions: -40 to 65°C Max. Image Size: 4K UHD 3840x2160, 16:9 for operation, one of the following connection boards is required: MX-F-S7A-RJ45 or MX-F-S7A-LSA
