Mobotix Mx-SD1A-831-LIR-VA MOBOTIX Mx-SD1A-831-LIR-VA LAN IP CCTV camera 3864 x 2180 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Dome camera;3864 x 2180 p;MobotixMx-SD1A-831-LIR-VA MOBOTIX;Mx-SD1A-831-LIR-VAOutdoors
Highlights & Details
- Weatherproof, motorized ONVIF S/G/T/M Dome PTZ camera
- Up to 31x optical Zoom
- Precise LiDAR focusing system
- Electronic picture stabilizer (EIS)
- Temperature range -40 to 55 °C with heater
Technical specifications
- Frame rate at max resolution (frames/second): 30
- COMPRESSION METHOD: H.264 / H.265 / MJPEG
- Horizontal field of view: 61.8° (wide angle), 2.2° (tele)
- Vertical field of view: 35.9° (wide angle), 1.3° (tele)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
ONVIF support
Saves footage on SD card
Face recognition
Vehicle recognition
Optical zoom
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3864 x 2180 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
6,9 - 214,6 mm
- Max. viewing angle hor.
61.8°
- Vertical viewing angle
35.9°
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Light sensitivity (- IR)
0.02 lx
- IR range (max.)
300 m
- Used at
Outdoors
- Type
microSD Karte (up to 1 TB)
- Width
364 mm
- (Ø)
241 mm
- Dim
(Ø) 241 mm
- Weight
5500 g
- F-numbers
F1.35–F4.6
- Enclosure material
Metal
Plastic
- Factory colour
White
IP66
IK10
- Signal standard
IP
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152747 Mobotix Mx-SD1A-831-LIR-VA MOBOTIX Mx-SD1A-831-LIR-VA LAN IP CCTV camera 3864 x 2180 p
User & Safety Instructions
User & Safety Instructions 3152747 Mobotix Mx-SD1A-831-LIR-VA MOBOTIX Mx-SD1A-831-LIR-VA LAN IP CCTV camera 3864 x 2180 p
Description

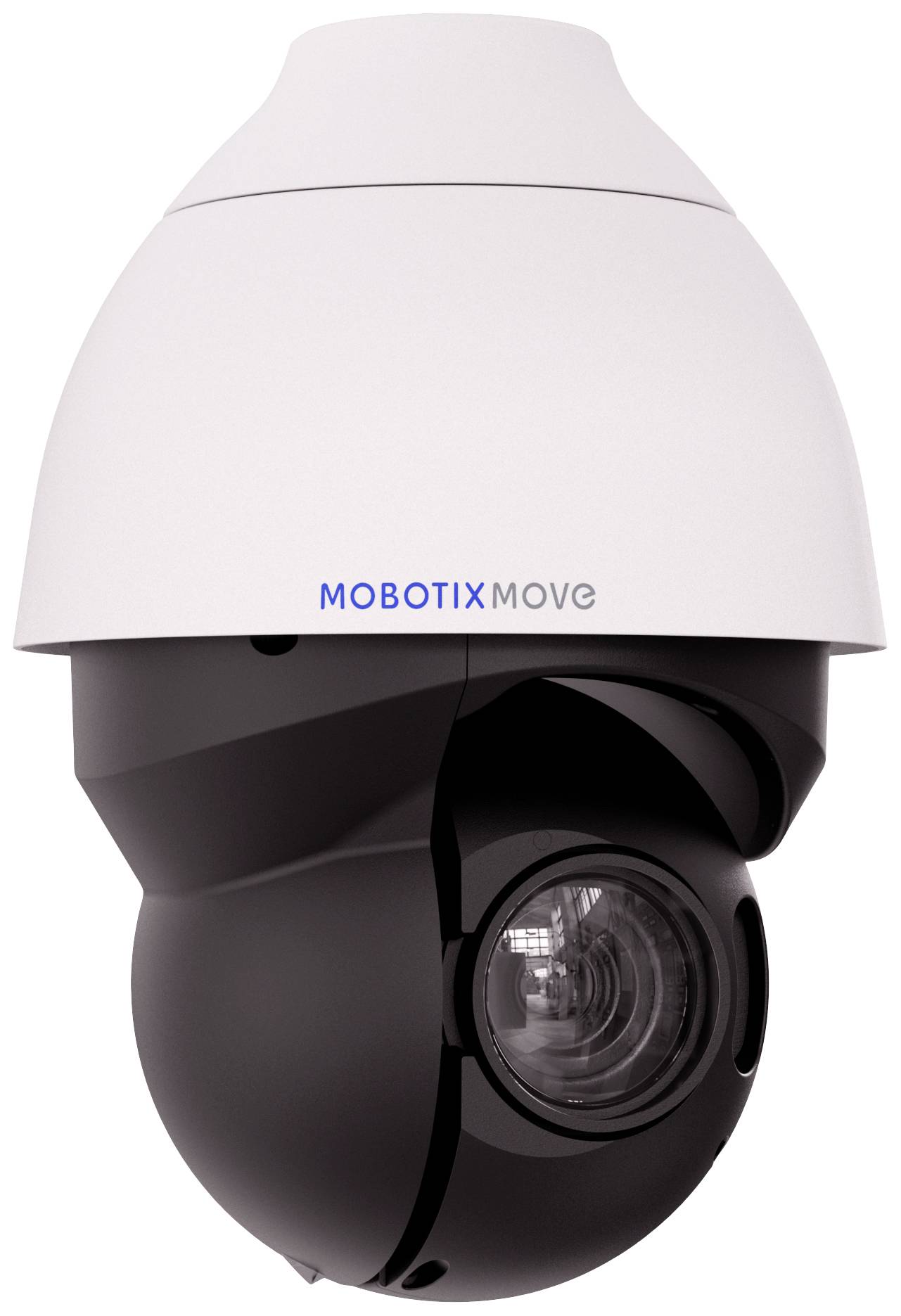

Mobotix MOVE 4K SpeedDome camera with LiDAR technology
LIDAR technology delivers rapid auto focus with maximum efficiency in the 4K Mobotix MOVE PTZ model. Integrated Deep Learning based edge video analysis enables accurate real-time object tracking and detects human faces and multiple objects at the same time.
This text is machine translated.
LIDAR technology delivers rapid auto focus with maximum efficiency in the 4K Mobotix MOVE PTZ model. Integrated Deep Learning based edge video analysis enables accurate real-time object tracking and detects human faces and multiple objects at the same time.
This text is machine translated.
Features
- 10 Integrated Video Analytical Functions Incl DNN Face- and car-number plate recognition, can be linked with PTZ position preset settings
- 8MP Sony STARVIS II IMX678 (3856 x 2180) 4K, 1/1.8" Progressive CMOS
- Automatic switching from color to B/W image (mechanical IR band-blocking filter)
- Remotely controllable optical Zoom
- Day/night mode
- Audio input
- Audio output
- Digital input:
- Digital output
- Motion detection
- Memory card slot.
Scope of delivery
- Mobotix move Speeddome SD-831-LIR-VA LIDAR (DNN Analytics)
Hints
Memory card not included
