Mobotix Mx-SD2A-230-LL-VA MOBOTIX Mx-SD2A-230-LL-VA LAN IP CCTV camera 1920 x 1080 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Dome camera;1920 x 1080 p;MobotixMx-SD2A-230-LL-VA MOBOTIX;Mx-SD2A-230-LL-VAOutdoors
Highlights & Details
- Weatherproof, motorized ONVIF S/G/T/M Dome PTZ camera
- Up to 30x optical Zoom
- Has an increased light sensitivity
Technical specifications
- Ambient temperature -40 to 55 °C
- Frame rate at max resolution (frames/second): 30
- COMPRESSION METHOD: H.264 / H.265 / MJPEG
- Horizontal field of view: 59.3° (wide angle), 2.3° (tele)
- Vertical field of view: 34.9° (wide angle), 1.4° (tele)
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
ONVIF support
Saves footage on SD card
Face recognition
Vehicle recognition
Optical zoom
Motorized lens
PoE IEEE 802.3at
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
1920 x 1080 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
4,3 - 129 mm
- Max. viewing angle hor.
59.3°
- Vertical viewing angle
34.9°
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Light sensitivity (- IR)
0.01 lx
- Used at
Outdoors
- Type
microSD Karte (up to 1 TB)
- Height
294.5 mm
- (Ø)
210 mm
- Dim
(Ø x H) 210 mm x 294.5 mm
- Weight
3100 g
- F-numbers
F1.6 – F4.7
- Enclosure material
Metal
Plastic
- Factory colour
White
IP66
IK10
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152751 Mobotix Mx-SD2A-230-LL-VA MOBOTIX Mx-SD2A-230-LL-VA LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 3152751 Mobotix Mx-SD2A-230-LL-VA MOBOTIX Mx-SD2A-230-LL-VA LAN IP CCTV camera 1920 x 1080 p
Description

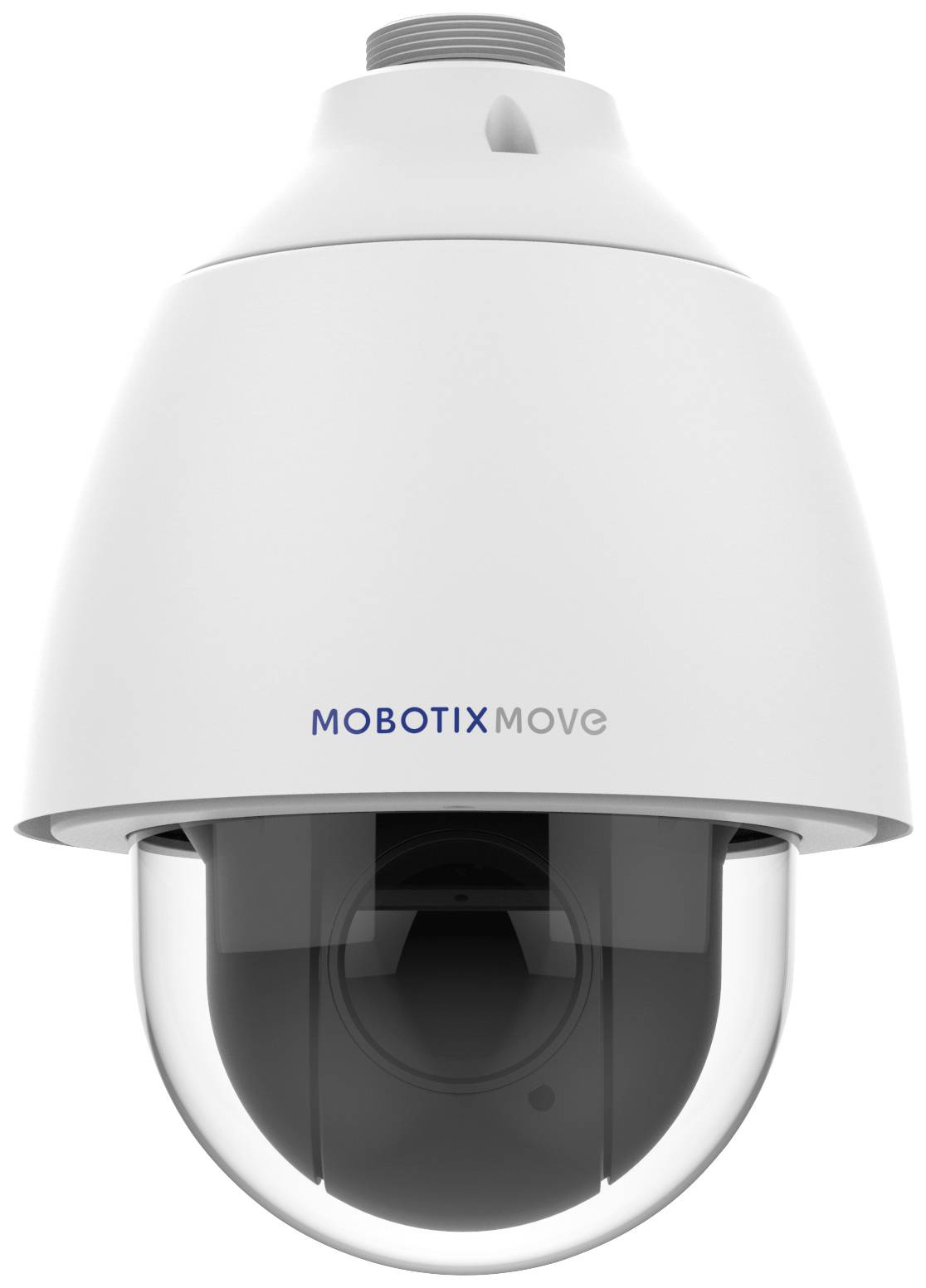

Mobotix MOVE SPEED DOME 2MP low-light camera for ceiling installation - with color reproduction even in an environment with weak light.
The Mobotix MOVE SPEED DOME SD2A-230-LL VA camera has an increased light sensitivity of up to 0.001 lux with automatic object tracking. The camera produces color images even in weak light. You can choose between a classic PTZ camera or a discreet ceiling installation.
This text is machine translated.
The Mobotix MOVE SPEED DOME SD2A-230-LL VA camera has an increased light sensitivity of up to 0.001 lux with automatic object tracking. The camera produces color images even in weak light. You can choose between a classic PTZ camera or a discreet ceiling installation.
This text is machine translated.
Features
- Image sensor 2MP Sony STARVIS II IMX662 (1936 x 1100), 1/2.8" progressive CMOS
- Automatic switching from color to B/W image (mechanical IR band-blocking filter)
- Automatic object tracking, DNN-based (people, vehicles)
- 2D & 3D motion-compensated noise suppression (MCTF)
- Max. Frame rate: 2MP@30 fps (H.264, with or without WDR function activated); MJPEG: 1080p@30 fps
- Remotely controllable optical Zoom
- Day/night mode
- Audio input
- Audio output
- Digital input:
- Digital output
- Motion detection
- Memory card slot.
Scope of delivery
- Mobotix move Speeddome SD-230-LL-VA low light (DNN Analytics)
Hints
Memory card not included
