Mobotix Mx-VD2A-5-IR-VA Mx-VD2A-5-IR-VA LAN IP CCTV camera 2720 x 1976 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Dome camera;2720 x 1976 p;MobotixMx-VD2A-5-IR-VA;Mx-VD2A-5-IR-VAOutdoors
Highlights & Details
- PoE (Power over Ethernet)Max. Image resolution 5 MP (2720 x 1976)Motor-controlled Vario lens (F1.6-F2.9: 2.7 to 12 mm
Technical specifications
- Angle of view H 102.1° - 31.5°, V 70.3° - 22.7°Video codecs H.264, H.265 MJPEG (up to 4 video streams simultaneously)Max. Image rate 5 MP H.264, H. 265 30 fpsWDR ON: H.265 / H.264: 2688x1944 @ 30 B/s + 1024x768 @ 30 B/s; MJPEG: 1080p @ 30 B/s.WDR off: H.265 / H.264: 2688x1944 @ 30 B/s + 1024x768 @ 30 B/s; H.265 / H.264: 1920x1080 @ 60 B/s + 1280x720 @ 60 B/s; MJPEG: 1080p @ 60 B/s.Power supply: PoE IEEE 802.3af or DC 12V (13W) or AC 24V; max. 14 WAmbient temperature -55 to 60 °C (heating on), air humidity 10 to 90 % non-condensingMTBF: 95.000 h
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
ONVIF support
Motorized lens
PoE IEEE 802.3af
Tamperproof
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2720 x 1976 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
- Focal length
2,7 - 12 mm
- Max. viewing angle hor.
102.1°
- Vertical viewing angle
70.3°
- App compatibility
No
- Transfer type
LAN
- IR range (max.)
40 m
- Used at
Outdoors
- Width
175 mm
- Height
170 mm
- Depth
175 mm
- Dim
(W x H x D) 175 x 170 x 175 mm
- Weight
1.21 kg
- F-numbers
F1.6-F2.9
- Factory colour
White
IP66
IK10
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861904 Mobotix Mx-VD2A-5-IR-VA Mx-VD2A-5-IR-VA LAN IP CCTV camera 2720 x 1976 p
User & Safety Instructions
User & Safety Instructions 2861904 Mobotix Mx-VD2A-5-IR-VA Mx-VD2A-5-IR-VA LAN IP CCTV camera 2720 x 1976 p
Description

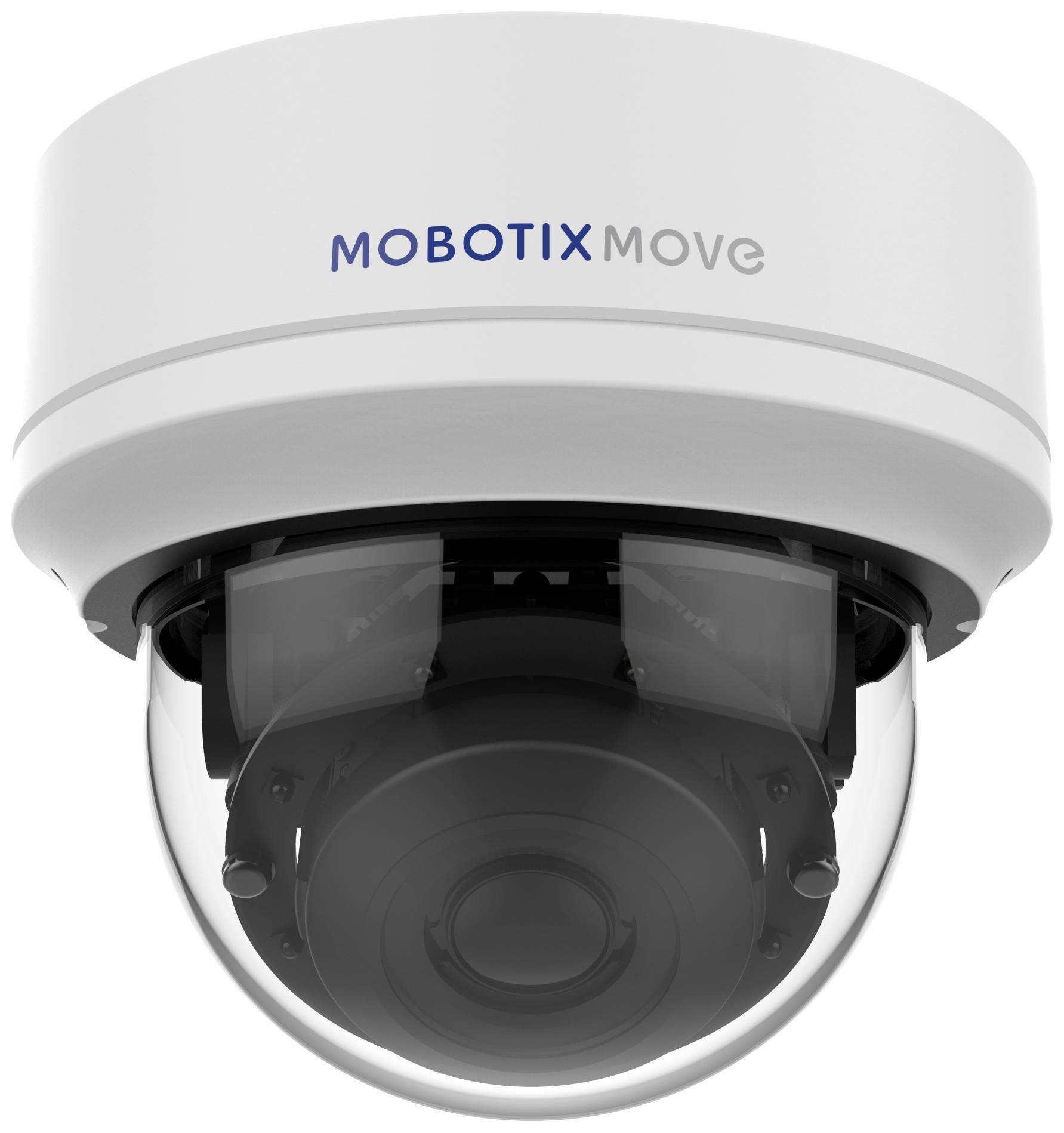

Mobotix MOVE vandal dome network camera VD2-5-IR-VA (video analytics). Weather-proof ONVIF S/G/T dome camera with built-in IR LEDs (up to 40 m) for day and night use.
This text is machine translated.
This text is machine translated.
Features
- Automatic switching from color to B/W image (mechanical IR band-blocking filter)Remote ZoomPicture angle H: 102.1° - 31.5°, V: 70.3° - 22.7°) with Auto-Iris with automatic adjustment to changing light conditions3-axis camera module settingUp to 4 video streams simultaneouslyTrue WDR (130 dB)Hardened and "self-cleaning" anti-reflex dome coating with Mobotix EverClear.
Scope of delivery
- Camera with lens.
- Fitting Material
