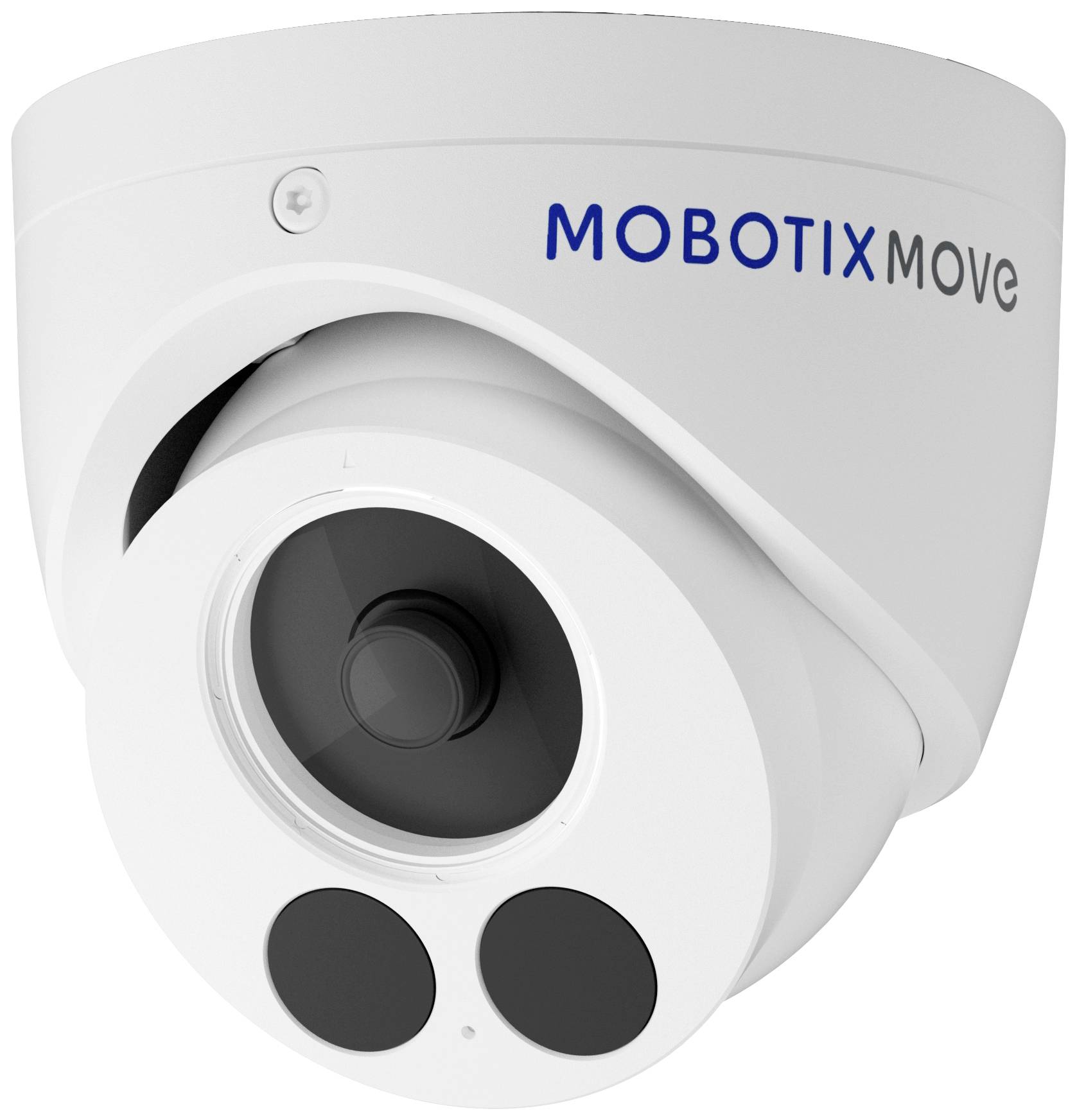

Mobotix Mx-VT1A-2-IR LAN IP CCTV camera 1920 x 1080 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Dome camera;1920 x 1080 p;Mobotix;Mx-VT1A-2-IROutdoors
Highlights & Details
- Integrated IR-LED up to 30 m distance
- MTBF 95,000 h
- NDAA-compliant
Technical specifications
- Frame rate at max resolution (frames/second): 30
- COMPRESSION METHOD: H.264 / H.265 / MJPEG
- Product type
CCTV camera
- Series
MOBOTIX MOVE
- CCTV features
IR LEDs
ONVIF support
Saves footage on SD card
Microphone
PoE IEEE 802.3af
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
1920 x 1080 p
- Sensor size
9.07 mm (1/2.8")
- Sensor type
CMOS
- Focal length
2,8 mm
- Max. viewing angle hor.
105°
- Vertical viewing angle
56°
- Transfer type
LAN
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.03 lx
- IR range (max.)
30 m
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Height
95 mm
- (Ø)
120 mm
- Dim
(Ø x H) 120 mm x 95 mm
- Weight
680 g
- F-numbers
F1.6
- Enclosure material
Metal
- Factory colour
White
IP67
IK10
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152753 Mobotix Mx-VT1A-2-IR LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 3152753 Mobotix Mx-VT1A-2-IR LAN IP CCTV camera 1920 x 1080 p
Description
The compact Mobotix MOVE Turret cameras enable easy entry in the world of professional Mobotix video security systems with their excellent price-performance ratio. Select the motorized Varifocal or Fixed Lens version, each with 2MP or 5MP image sensor (day & night) and two integrated infrared LEDs (up to 30 m).
This text is machine translated.
This text is machine translated.
Features
- Motorized Vario lens or fixed focal length
- Ceiling or wall mount (accessories available)
- H.265/H.264/MJPEG
- Day/night function
- Integrated IR-illumination up to 30 m
- WDR up to 120 dB
- ONVIF PROFILE S/G/T/M
- Built-in microphone
- Memory card slot.
Scope of delivery
- Camera with lens
- Fitting Material
Hints
Memory card not included
