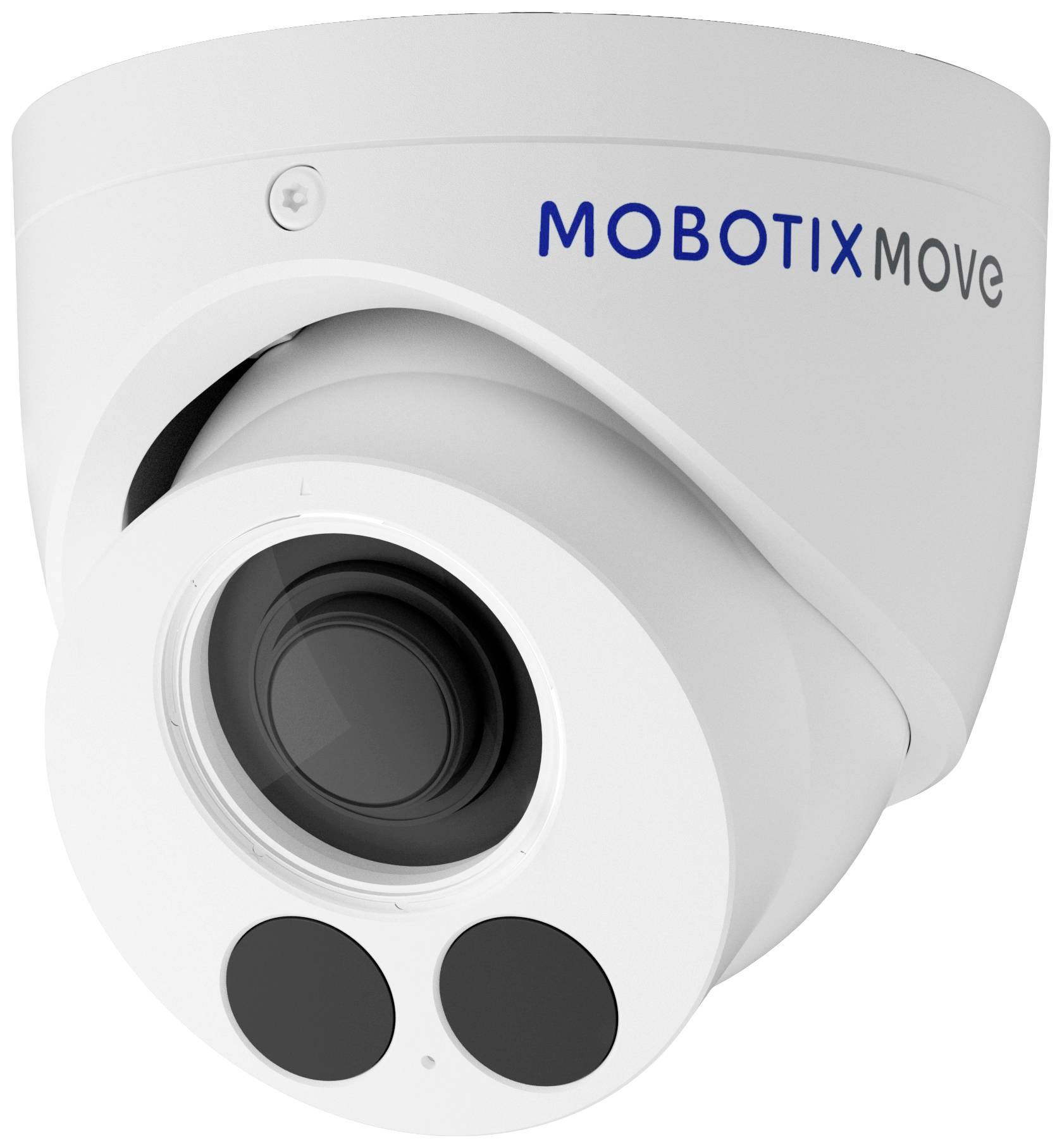

Surveillance camera with two lenses and the inscription 'Mobotix Move'.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

LAN IP-Dome camera;2720 x 1976 p;Mobotix;Mx-VT1A-503-IROutdoors

Highlights & Details

Integrated IR-LED up to 30 m distance
MTBF 95,000 h
NDAA-compliant

Technical specifications

Frame rate at max resolution (frames/second): 30
COMPRESSION METHOD: H.264 / H.265 / MJPEG
Angle of view 103°-31°(H) 76°-23°(V)

Product type: CCTV camera

CCTV features: IR LEDs
ONVIF support
Saves footage on SD card
Microphone
Optical zoom
Motorized lens
PoE IEEE 802.3af

Camera type: Dome camera

Power supply: PoE (Power over Ethernet)

Resolution (max.): 2720 x 1976 p

Sensor size: 9.07 mm (1/2.8")

Sensor type: CMOS

Focal length: 2,7 - 13,5 mm

Max. viewing angle hor.: 103°

Transfer type: LAN

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.18 lx

IR range (max.): 30 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Height: 104 mm

(Ø): 120 mm

Dim: (Ø x H) 120 mm x 104 mm

Weight: 715 g

F-numbers: F1.4-2.8

Enclosure material: Metal

Factory colour: White

: IP67
IK10

Signal standard: IP

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Resolution (max.)

Max. viewing angle hor.

Dim

CCTV features

Type

Mobotix Mx-VT1A-503-IR LAN IP CCTV camera 2720 x 1976 p

Item no:3152759

This article

2720 x 1976 p

103 °

(Ø x H) 120 mm x 104 mm

IR LEDsONVIF supportSaves footage on SD cardMicrophoneOptical zoomMotorized lensPoE IEEE 802.3af

microSD card (up to 512 GB)

Mobotix Mx-SD1A-540-IR-VA MOBOTIX Mx-SD1A-540-IR-VA LAN IP CCTV camera 2720 x 1976 p

Item no:3152745

2720 x 1976 p

62.6 °

(Ø) 207 mm

IR LEDsMotorized lensONVIF supportSaves footage on SD cardFace recognitionVehicle recognitionOptical zoom

microSD Karte (up to 1 TB)

Mobotix Mx-SD1A-831-LIR-VA MOBOTIX Mx-SD1A-831-LIR-VA LAN IP CCTV camera 3864 x 2180 p

Item no:3152747

3864 x 2180 p

61.8 °

(Ø) 241 mm

IR LEDsONVIF supportSaves footage on SD cardFace recognitionVehicle recognitionOptical zoom

microSD Karte (up to 1 TB)

Mobotix Mx-SD2A-230-LL-FM-VA LAN IP CCTV camera 1920 x 1080 p

Item no:3152749

1920 x 1080 p

59.3 °

(Ø x H) 212 mm x 103 mm

IR LEDsONVIF supportSaves footage on SD cardFace recognitionVehicle recognitionOptical zoomMotorized lensPoE IEEE 802.3at

microSD Karte (up to 1 TB)

Mobotix Mx-SD2A-230-LL-VA MOBOTIX Mx-SD2A-230-LL-VA LAN IP CCTV camera 1920 x 1080 p

Item no:3152751

1920 x 1080 p

59.3 °

(Ø x H) 210 mm x 294.5 mm

IR LEDsONVIF supportSaves footage on SD cardFace recognitionVehicle recognitionOptical zoomMotorized lensPoE IEEE 802.3at

microSD Karte (up to 1 TB)

Mobotix Mx-VT1A-2-IR LAN IP CCTV camera 1920 x 1080 p

Item no:3152753

1920 x 1080 p

105 °

(Ø x H) 120 mm x 95 mm

IR LEDsONVIF supportSaves footage on SD cardMicrophonePoE IEEE 802.3af

microSD card (up to 512 GB)

Mobotix Mx-VT1A-203-IR LAN IP CCTV camera 1920 x 1080 p

Item no:3152755

1920 x 1080 p

(Ø x H) 120 mm x 104 mm

IR LEDsONVIF supportSaves footage on SD cardMicrophoneMotorized lensOptical zoomPoE IEEE 802.3af

microSD card (up to 512 GB)

Mobotix MOBOTIX MOVE MX-VT1A-5-IR - Netzwerk-Überwachungskamera Mx-VT1A-5-IR LAN IP CCTV camera 2720 x 1976 p

Item no:3152757

2720 x 1976 p

97 °

(Ø x H) 120 mm x 95 mm

IR LEDsONVIF supportSaves footage on SD cardMicrophonePoE IEEE 802.3af

microSD card (up to 512 GB)

Documents & Downloads

Datasheet

Datasheet 3152759 Mobotix Mx-VT1A-503-IR LAN IP CCTV camera 2720 x 1976 p

User & Safety Instructions

User & Safety Instructions 3152759 Mobotix Mx-VT1A-503-IR LAN IP CCTV camera 2720 x 1976 p

Description

The compact Mobotix MOVE Turret cameras enable easy entry in the world of professional Mobotix video security systems with their excellent price-performance ratio. Select the motorized Varifocal or Fixed Lens version, each with 2MP or 5MP image sensor (day & night) and two integrated infrared LEDs (up to 30 m).
