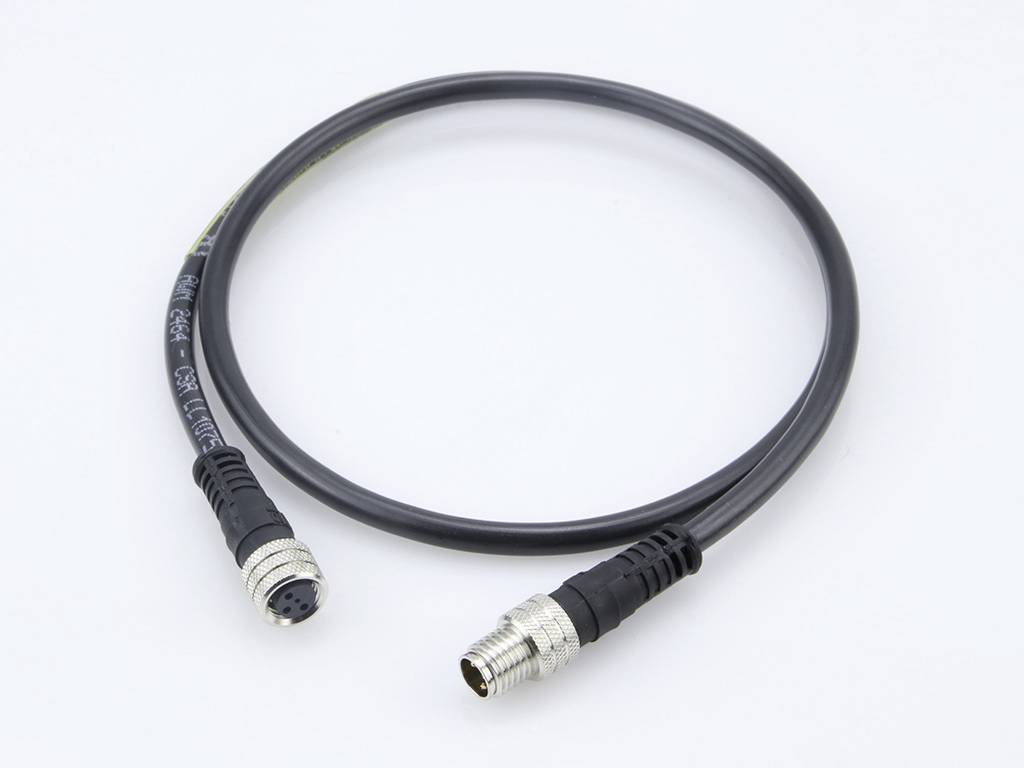

Molex 1200878713 Sensor/actuator connector (pre-fab) M8 Socket, Plug 5.00 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket
Plug
Connection side A
Nano-Change (M8)
Connection side B
Nano-Change (M8)
No. of pins
4
Datasheet (PDF)
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Highlights & Details
Nano-change (M8)
- Nano-Change (M8) Double-Ended Cordset with Knurled Hexnut, 4 Poles, Female (Straight) to Male (Straight), 24 AWG, WSOR Cable, 5.0m (16.40') Length
- This text is machine translated.
Our service for you
Technical specifications
- Wire size AWG: 24Coupling type: Ratchet hex nut, with threadMaterial - Connector body: TPUMaterial - union nut: Nickel-plated brassGroove: SingleOrientation: Straight to StraightRegion: Europe
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket
Plug
- Connection side A
Nano-Change (M8)
- Connection side B
Nano-Change (M8)
- No. of pins
4
- Cable length
5.00 m
- Jacket material
TPU
- Nominal voltage
30 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Factory colour
Black
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
Brass
- Contact surface
Gold
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1200878713
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
4.8 mm
- RoHS-compliant
Yes
- Engineering Part No
444030B41M050
- Engineering Series Name
NC DC D/E Cordsets
- Engineering Series No
120087
Documents & Downloads
Datasheet
Datasheet 2447101 Molex 1200878713 Sensor/actuator connector (pre-fab) M8 Socket, Plug 5.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2447101 Molex 1200878713 Sensor/actuator connector (pre-fab) M8 Socket, Plug 5.00 m No. of pins (RJ): 4 1 pc(s)
Circuit diagramm
Circuit diagramm 2447101 Molex 1200878713 Sensor/actuator connector (pre-fab) M8 Socket, Plug 5.00 m No. of pins (RJ): 4 1 pc(s)
Description
Nano-Change (M8) Double-Ended Cordset with Knurled Hexnut, 4 Poles, Male (Straight) to Female (Straight), 24 AWG, Black TPU WSOR Cable, 5.0m (16.40') Length
