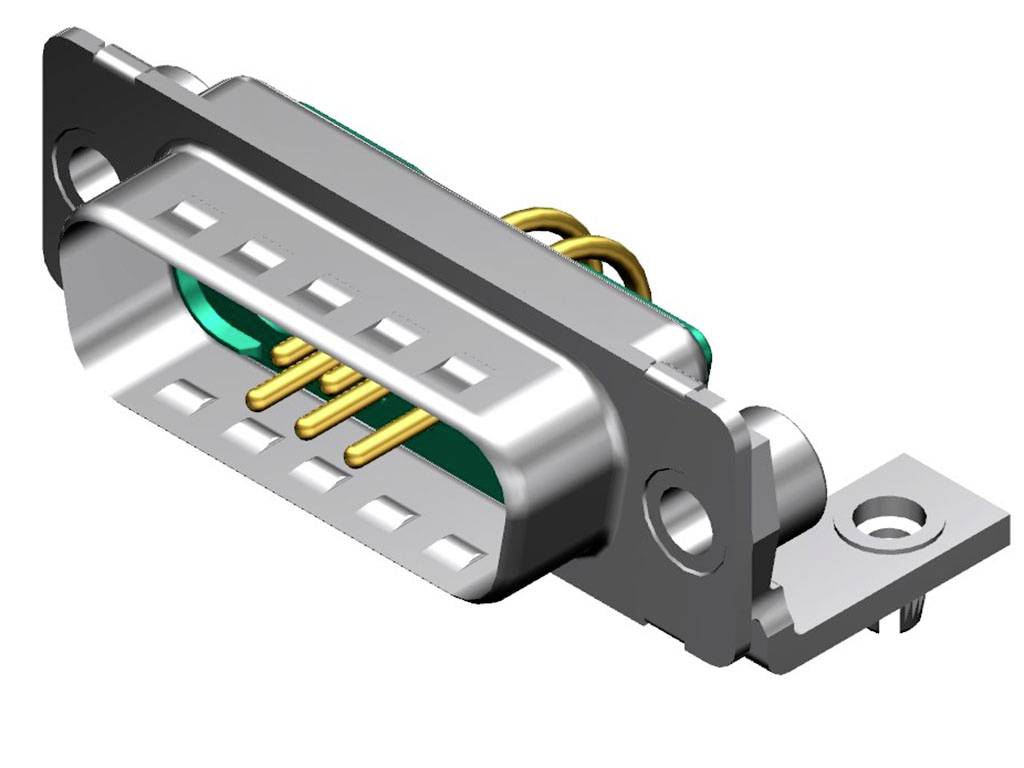

Molex 1731070093 D-SUB plug Number of pins: 7 D-Sub plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
D-SUB plug
Number of pins
7
Connection
D-Sub plug
Content
1 pc(s)
Layout
5 signal pins
Datasheet (PDF)
Highlights & Details
Molex 1731070093 FCT MIXED LAYOUT
- D-SUB plug
- Number of pins: 7
Our service for you
Technical specifications
- Product type
D-SUB plug
- Number of pins
7
- Connection
D-Sub plug
- Content
1 pc(s)
- Layout
5 signal pins
- Manufacturer part #
1731070093
- Factory colour
Green
- Contact material
Gold
- Contact surface
Gold plated
- RoHS-compliant
Yes
- Features
gold-plated contacts
- Type
1731070093
- Engineering Part No
FM7W2P5-1002
- Engineering Series Name
FCT MIXED LAYOUT
- Engineering Series No
D-Sub
Documents & Downloads
Datasheet
Datasheet 2909729 Molex 1731070093 D-SUB plug Number of pins: 7 D-Sub plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2909729 Molex 1731070093 D-SUB plug Number of pins: 7 D-Sub plug 1 pc(s)
Description
FCT Mixed Layout D-Sub Connector, Male, Right-Angle, PCB Through Hole, 0.80µm Gold Plated Contacts, Tin-plated Shell with Dimples, 14.50mm Riveted Metal Bracket and Clinch Nut, 7 Circuits, 5 Signal Contacts Loaded, Green Insulator
