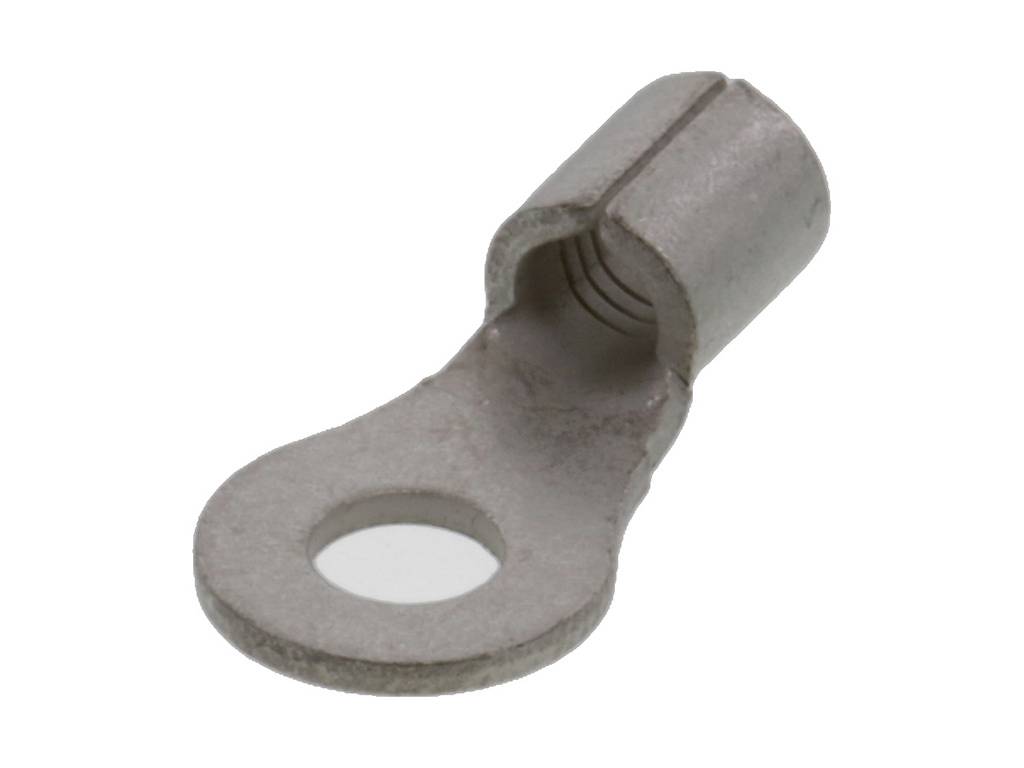

Molex 190690205 Ring terminal + crimp, tin-plated Cross section (max.)=6 mm² Hole Ø=4 mm 1 pc(s) Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
Ring terminal
Thread size
M4
Hole Ø
4 mm
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.37
210
8% = € 0.03
€ 0.34
350
14% = € 0.05
€ 0.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.37 / piece)
€ 74.00
plus VAT.
14-day return policy included
Highlights & Details
RING/SPADE TERMINALS
- 4 - 6 mm²
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Ring terminal
- Thread size
M4
- Hole Ø
4 mm
- Content
1 pc(s)
- Contact material
Tin plated
- Manufacturer part #
190690205
- Type
Molex MOL Industrial Solution
- AWG max.
10
- AWG (min.)
12
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Weight
1.579 g
- Dimensions
19.94 mm
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Features
+ crimp
tin-plated
- Support sleeve
Yes
- Engineering Part No
C-128-08
- Engineering Series Name
RING TONGUE STAMPING
- Engineering Series No
19069
Documents & Downloads
Datasheet
Datasheet 2447674 Molex 190690205 Ring terminal + crimp, tin-plated Cross section (max.)=6 mm² Hole Ø=4 mm 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447674 Molex 190690205 Ring terminal + crimp, tin-plated Cross section (max.)=6 mm² Hole Ø=4 mm 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447674 Molex 190690205 Ring terminal + crimp, tin-plated Cross section (max.)=6 mm² Hole Ø=4 mm 1 pc(s) Bag
Description
Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 8 (M4), Length 19.94mm
